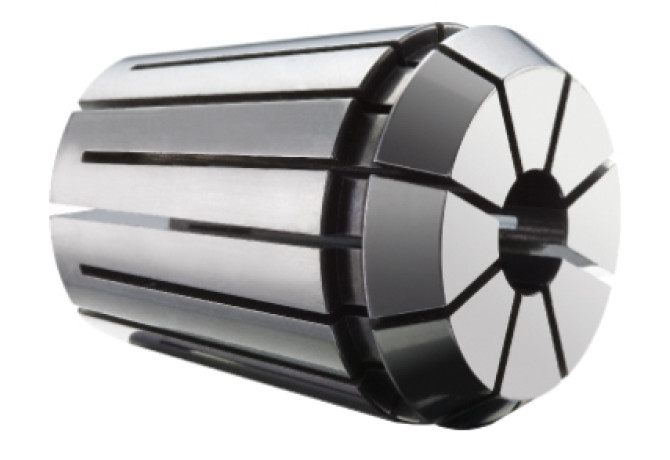

393.14-20 080
393.14-20 080
Артикул:
5760500
В наличии
0 ₽
Характеристики
BD (Body diameter)
21 mm
CCFWS (Connection code form)
01
CCSWS (Connection code style)
6
CCTWS (Connection code type)
ZYL
CCUWS (Connection code unit base)
1
CZCWS (Connection size code)
0070
DCBN (Connection bore diameter minimum)
7 mm
DCBX (Connection bore diameter maximum)
8 mm
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
SZD02000295
Interface codes
J6 / J61
ISO
SZD02C0200$$$$
LCOL (Collet length)
20.34 mm
LOC-01 ISO
ZYL01F7000****ZYL01F8000****
LOC-01 (CCFWS Connection code form)
01
LOC-01 (CCSWS Connection code style)
6 Adjustable shaft in machine direction or adjustable hole in workpiece direction
LOC-01 (CCTWS Connection code type)
ZYL cylindrical shank
LOC-01 (CCUWS Connection code unit base)
1 Metric with coolant
LOC-01 (CZCWS Connection size code)
0070
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL00700116ZYL00800116
LOC-02 ISO
ZYL01R2755****ZYL01R3149****
LOC-02 (CCFWS Connection code form)
01
LOC-02 (CCSWS Connection code style)
6 Adjustable shaft in machine direction or adjustable hole in workpiece direction
LOC-02 (CCTWS Connection code type)
ZYL cylindrical shank
LOC-02 (CCUWS Connection code unit base)
1 Metric with coolant
LOC-02 (CZCWS Connection size code)
0070
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
ZYL00702015ZYL00802015
LOC-03 ISO
SZD02C0200$$$$
LOC-03 (CCFMS Connection code form)
02
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
SZD Collet adapter DIN / ISO
LOC-03 (CCUMS Connection code unit base)
9 non-dimensional size with coolant
LOC-03 (CZCMS Connection size code)
0200
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SZD02000295

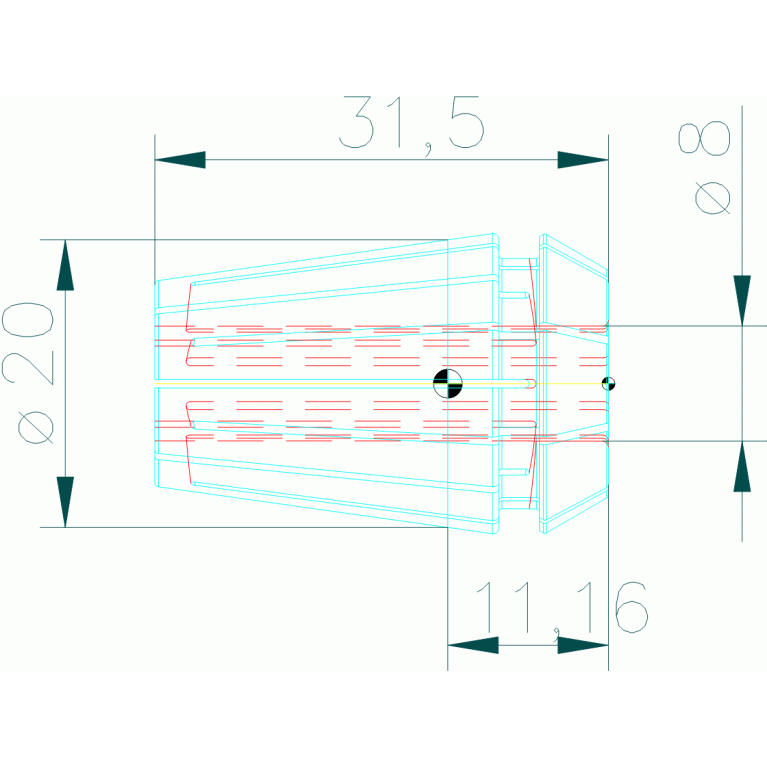

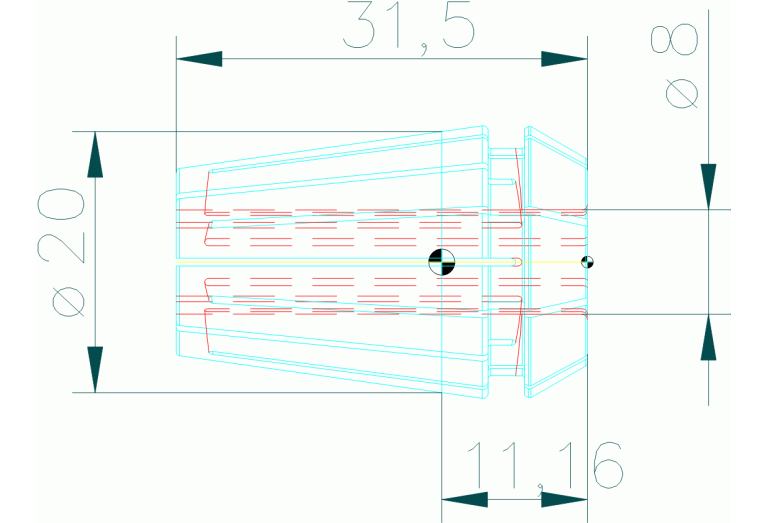

LSCX (Clamping length maximum)
31.5 mm

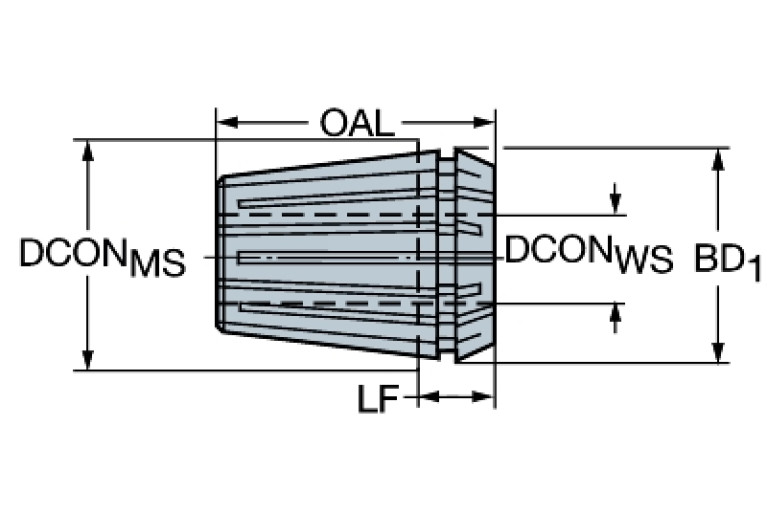

OAL (Overall length)
31.5 mm
SEALP (Sealing)
1 - With sealing
WT (Weight of item)
0.037 kg
