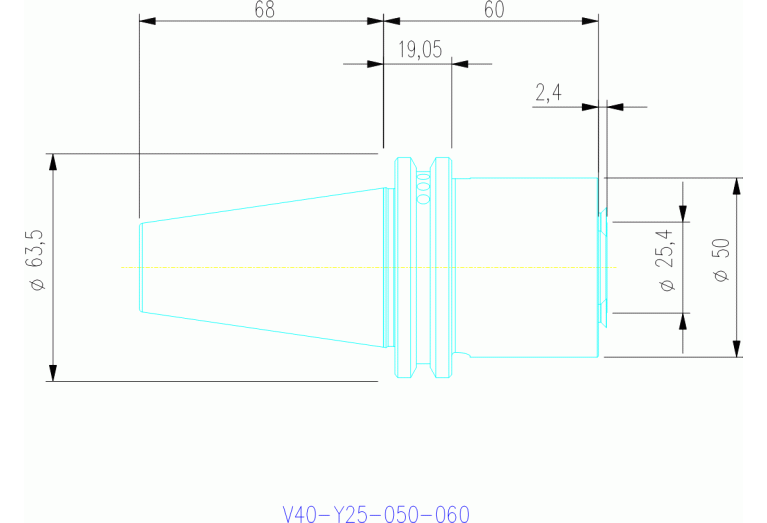

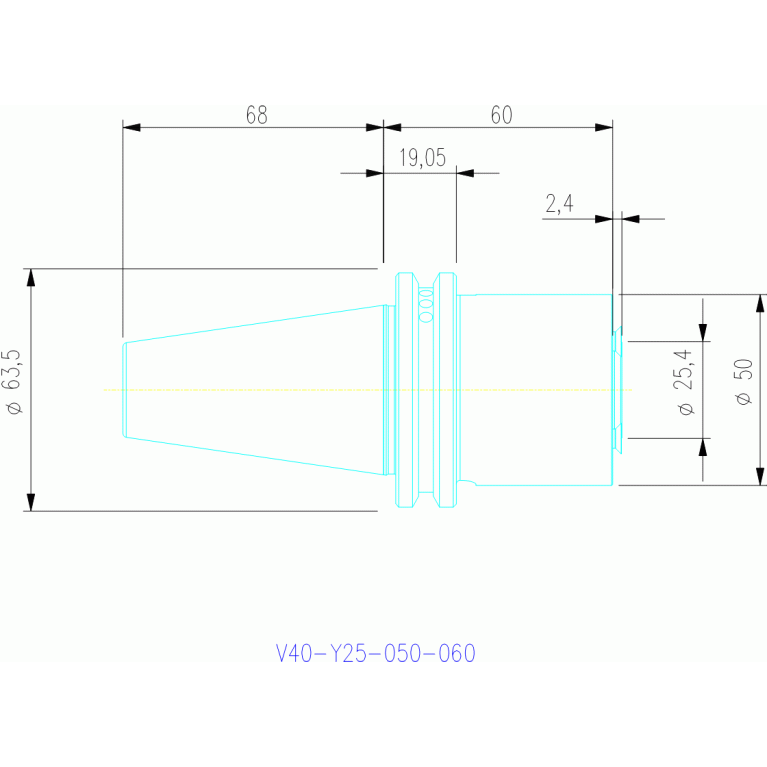

V40-Y25-050-060
V40-Y25-050-060
Артикул:
6718414
В наличии
0 ₽
Характеристики
BD (Body diameter)
50 mm
BLDEV (Balancing device)
1
CCFWS (Connection code form)
01
CCSWS (Connection code style)
5
CCTWS (Connection code type)
FLC
CCUWS (Connection code unit base)
9
CNSC (Coolant entry style code)
7 - Coolant entry, decentral and axially concentric
CXSC (Coolant exit style code)
3 - With Coolant exit, axial and radial
CXSC (Coolant exit style code) / Тип подвода СОЖ
3 - With Coolant exit, axial and radial
CZCWS (Connection size code)
0Y25
DBHC (Diameter bolt hole circle)
36 mm
DCONWS (Diameter)
25.4 mm
DCONWS (Diameter) / Диаметр соединения со стороны заготовки
25.4 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state valid from
12/1/2023
DF (Flange diameter)
63.5 mm
DIN
SKG04003795
HAND (Cutting direction)
N - Neutral
Interface codes
J6 / J61
ISO
SKG37C0400$$$$

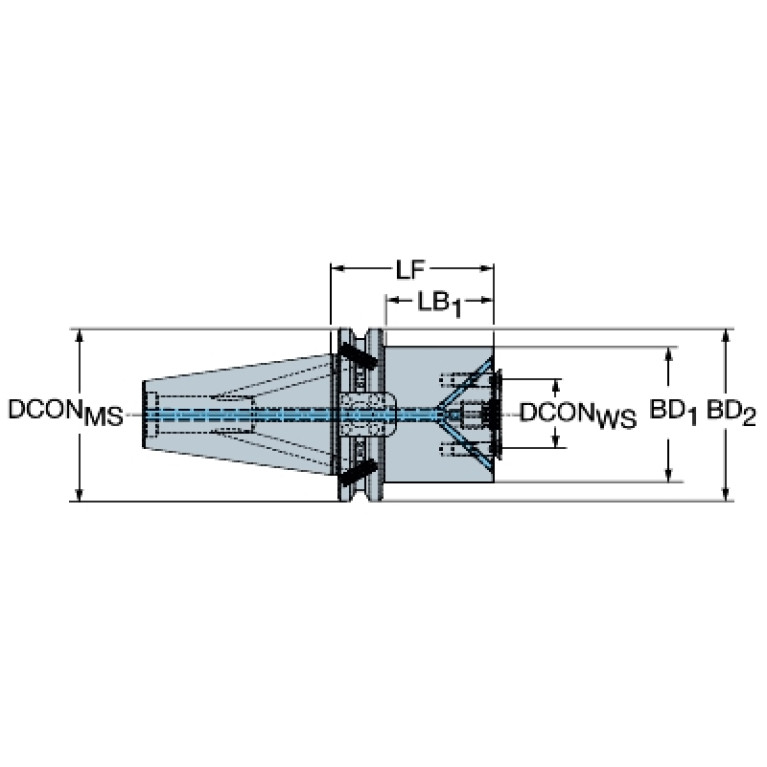

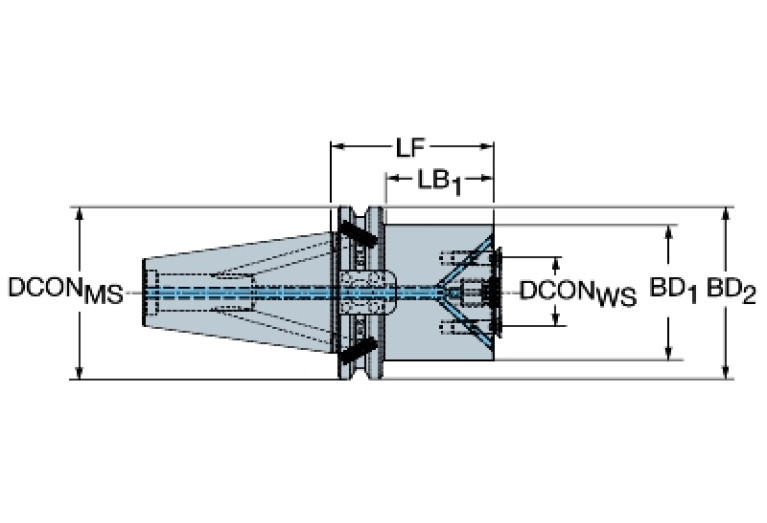

LB (Body length 1)
39.5 mm
LF (Functional length)
60 mm
LOC-01 ISO
FLC01C0Y25****
LOC-01 (CCFWS Connection code form)
01
LOC-01 (CCSWS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-01 (CCTWS Connection code type)
FLC Flange mounting SANDVIK Coromant
LOC-01 (CCUWS Connection code unit base)
9 non-dimensional size with coolant
LOC-01 (CZCWS Connection size code)
0Y25
LOC-01 (DCONWS Diameter)
25.4 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
FLC0Y250195
LOC-03 ISO
SKG37C0400$$$$
LOC-03 (CCFMS Connection code form)
37
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
SKG steep taper shank
LOC-03 (CCUMS Connection code unit base)
9 non-dimensional size with coolant
LOC-03 (CZCMS Connection size code)
0400
LOC-03 (DCONMS Diameter)
25.4 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SKG04003795
LPR (Protruding length)
60 mm
LS (Shank length)
2.4 mm
LSCX (Clamping length maximum)
2.4 mm
OAL (Overall length)
130.8 mm
RPMX (Rotational speed maximum)
11000 1/min
WT (Weight of item)
1.45 kg
