Главная Инструменты 401-01 - Converter, rotationally symmetric SI50-QC-C6-105

SI50-QC-C6-105

Артикул: 7027563

В наличии

0 ₽

В корзину

Описание

Характеристики

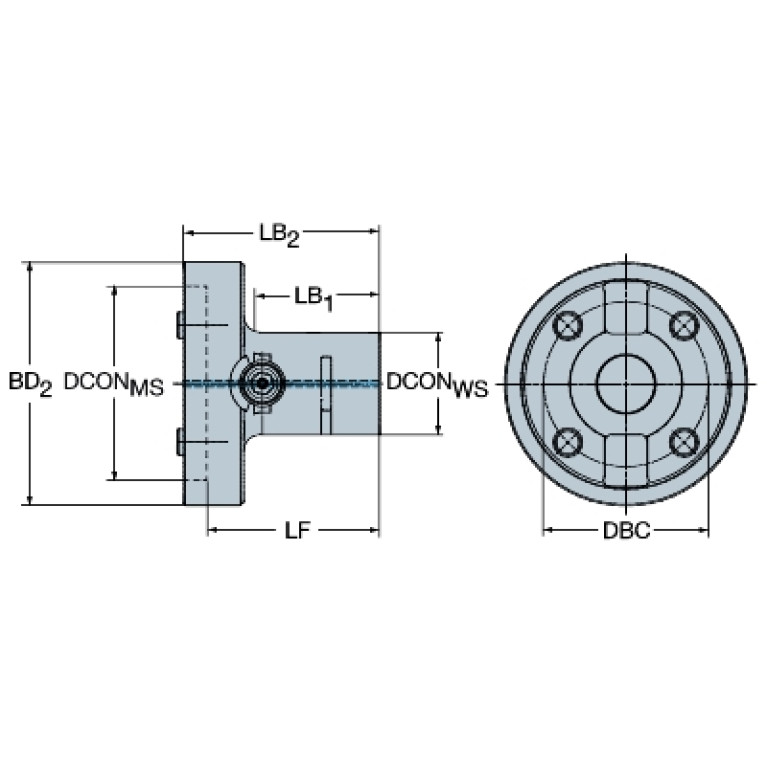

BD (Body diameter 2)

150 mm

BD (Body diameter)

63 mm

BLDEV (Balancing device)

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

CCS

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

1 - With Coolant exit, axial concentric

CXSC (Coolant exit style code) / Тип подвода СОЖ

1 - With Coolant exit, axial concentric

CZCWS (Connection size code)

0630

DBHC (Diameter bolt hole circle)

101.6 mm

DCONWS (Diameter)

128.57 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

128.57 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

SPK12850213

HAND (Cutting direction)

N - Neutral

Interface codes

J6 / J61

ISO

SPK02H1285$$$$

LB (Body length 1)

74 mm

LB (Length 2)

47 mm

LF (Functional length)

105 mm

LOC-01 ISO

CCS01C0630****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

CCS Coromant Capto System SANDVIK

LOC-01 (CCUWS Connection code unit base)

9 non-dimensional size with coolant

LOC-01 (CZCWS Connection size code)

0630

LOC-01 (DCONWS Diameter)

128.57 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

CCS06300195

LOC-02 ISO

CCS02C0630****

LOC-02 (CCFWS Connection code form)

LOC-02 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-02 (CCTWS Connection code type)

CCS Coromant Capto System SANDVIK

LOC-02 (CCUWS Connection code unit base)

9 non-dimensional size with coolant

LOC-02 (CZCWS Connection size code)

0630

LOC-02 (DCONWS Diameter)

128.57 mm

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

CCS06300295

LOC-03 ISO

SPK02H1285$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

3 Hole pattern (through bore) machine side or hole pattern (threaded hole) machine side or

LOC-03 (CCTMS Connection code type)

SPK Spindle nose mounting

LOC-03 (CCUMS Connection code unit base)

1 Metric with coolant

LOC-03 (CZCMS Connection size code)

1285

LOC-03 (DCONMS Diameter)

128.57 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SPK12850213

LPR (Protruding length)

105 mm

OAL (Overall length)

121 mm

WT (Weight of item)

4.9 kg
