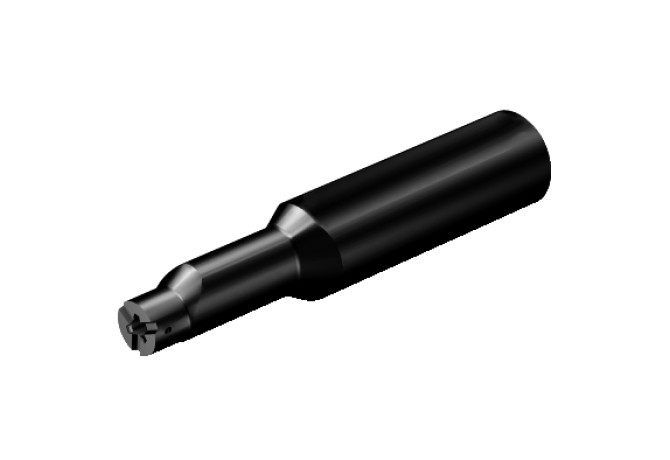

Главная Инструменты 401-01 - Converter, rotationally symmetric MB-E0625-25-09R

MB-E0625-25-09R

Артикул: 5735509

В наличии

0 ₽

В корзину

Описание

Характеристики

BD (Body diameter)

9.5 mm

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

BKC

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

1 - With Coolant exit, axial concentric

CXSC (Coolant exit style code) / Тип подвода СОЖ

1 - With Coolant exit, axial concentric

CZCWS (Connection size code)

0090

DCONWS (Diameter)

9 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

9 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

ZYL06250115

HAND (Cutting direction)

N - Neutral

HF (Functional height)

0 mm

Interface codes

J6 / J61

ISO

ZYL01R6250$$$$

LB (Body length 1)

58.7 mm

LF (Functional length)

124.7 mm

LOC-01 ISO

BKC01C0090****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

BKC drill head mounting SANDVIK Coromant

LOC-01 (CCUWS Connection code unit base)

9 non-dimensional size with coolant

LOC-01 (CZCWS Connection size code)

0090

LOC-01 (DCONWS Diameter)

9 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-03 ISO

ZYL01R6250$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

3 Inch with coolant

LOC-03 (CZCMS Connection size code)

0625

LOC-03 (DCONMS Diameter)

15.875 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL06250115

LPR (Protruding length)

124.7 mm

LS (Shank length)

61 mm

OAL (Overall length)

124.7 mm

Rotation (Rotation indicator)

1 - rotating tool

WF (Functional width)

0 mm

WT (Weight of item)

0.254 kg
