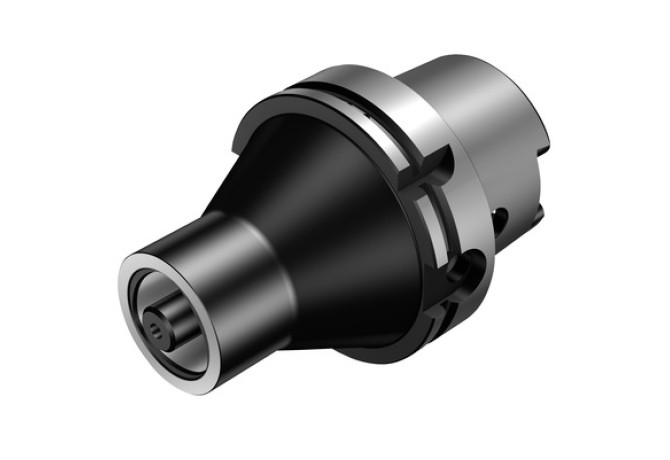

Главная Инструменты 401-01 - Converter, rotationally symmetric HA12-C8HD-080-130

HA12-C8HD-080-130

HA12-C8HD-080-130 HA12-C8HD-080-130 HA12-C8HD-080-130 HA12-C8HD-080-130

HA12-C8HD-080-130

SV - Sandvik-Coromant
Артикул: 8107523
В наличии
0 ₽
В корзину
Описание
Характеристики

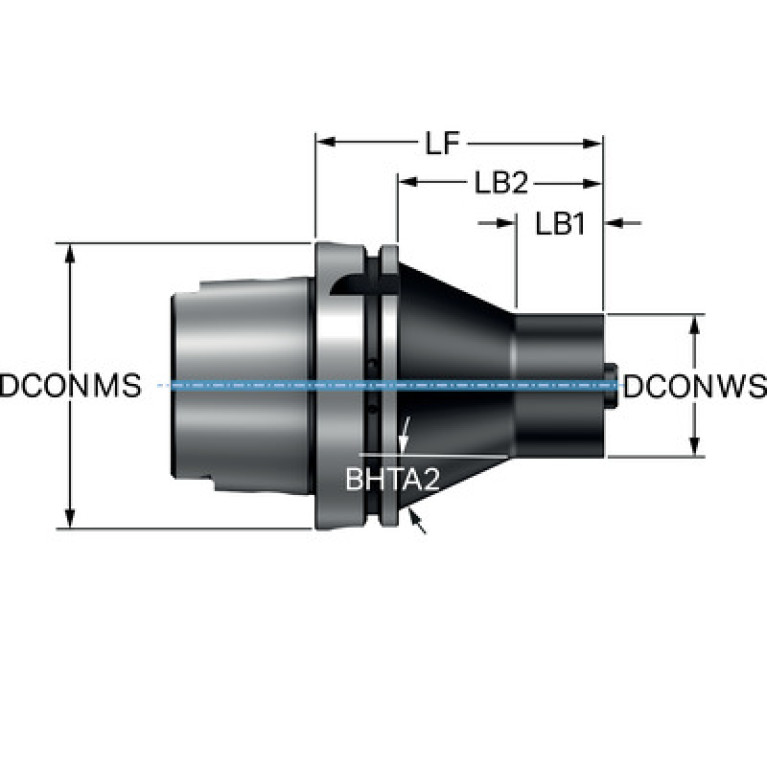

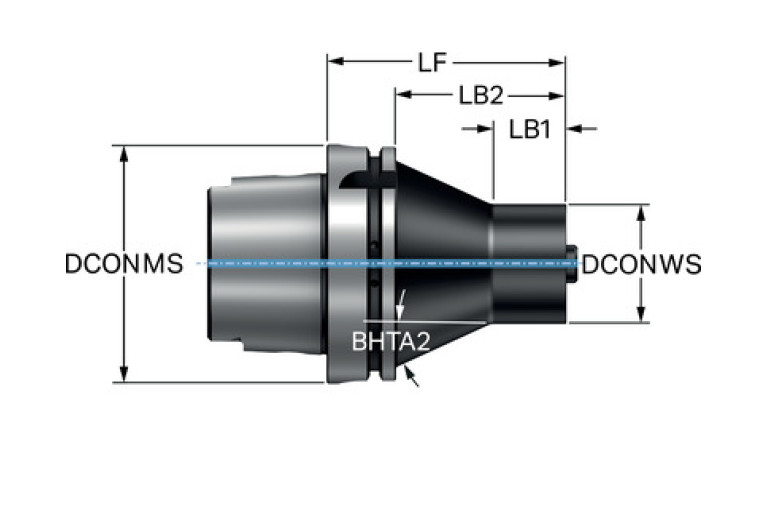

BD (Body diameter 2)
108.117 mm
BD (Body diameter 3)
125 mm
BD (Body diameter)
80 mm
BHTA (Body half taper angle 2)
11.2 Degree
BLDEV (Balancing device)
1
CCFWS (Connection code form)
03
CCSWS (Connection code style)
5
CCTWS (Connection code type)
CCS
CCUWS (Connection code unit base)
9
CNSC (Coolant entry style code)
1 - With Coolant entry, axial concentric
CXSC (Coolant exit style code)
1 - With Coolant exit, axial concentric
CXSC (Coolant exit style code) / Тип подвода СОЖ
1 - With Coolant exit, axial concentric
CZCWS (Connection size code)
0800
DCONWS (Diameter)
125 mm
DCONWS (Diameter) / Диаметр соединения со стороны заготовки
125 mm
DCP (Data chip provision)
1 - With data chip
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
HSK12500195
HAND (Cutting direction)
N - Neutral
Interface codes
J6 / J61
ISO
HSK01C1250$$$$
LB (Body length 1)
30 mm
LB (Length 2)
71 mm
LB (Length Body diameter 3)
29 mm
LF (Functional length)
130 mm
LOC-01 ISO
CCS03C0800****
LOC-01 (CCFWS Connection code form)
03
LOC-01 (CCSWS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-01 (CCTWS Connection code type)
CCS Coromant Capto System SANDVIK
LOC-01 (CCUWS Connection code unit base)
9 non-dimensional size with coolant
LOC-01 (CZCWS Connection size code)
0800
LOC-01 (DCONWS Diameter)
125 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
CCS08000395
LOC-02 ISO
CCS01C0800****
LOC-02 (CCFWS Connection code form)
03
LOC-02 (CCSWS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-02 (CCTWS Connection code type)
CCS Coromant Capto System SANDVIK
LOC-02 (CCUWS Connection code unit base)
9 non-dimensional size with coolant
LOC-02 (CZCWS Connection size code)
0800
LOC-02 (DCONWS Diameter)
125 mm
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
CCS08000195
LOC-03 ISO
HSK01C1250$$$$
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
HSK Hollow taper shank
LOC-03 (CCUMS Connection code unit base)
9 non-dimensional size with coolant
LOC-03 (CZCMS Connection size code)
1250
LOC-03 (DCONMS Diameter)
125 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK12500195
LPR (Protruding length)
130 mm
OAL (Overall length)
193 mm
WT (Weight of item)
7.409 kg
