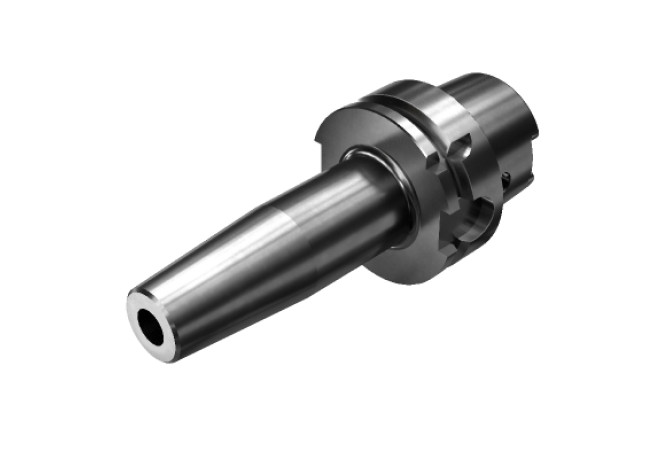

Главная Инструменты 401-01 - Converter, rotationally symmetric HA10-SH20Q-S-105

HA10-SH20Q-S-105

Артикул: 7081641

В наличии

0 ₽

В корзину

Описание

Характеристики

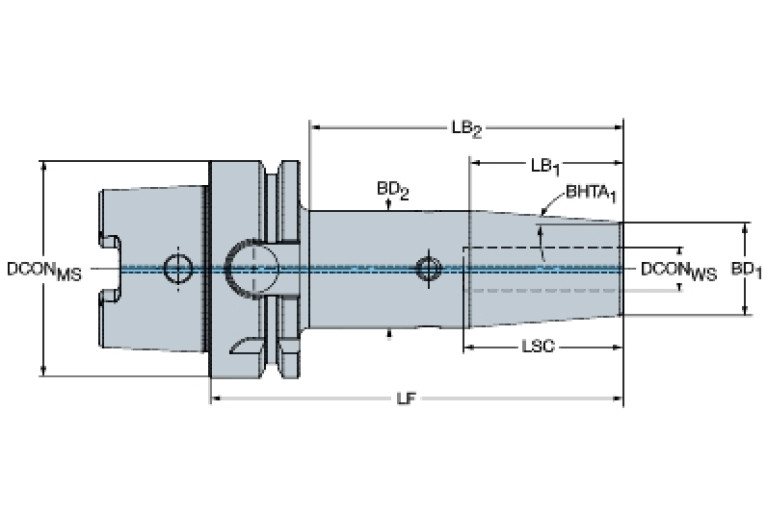

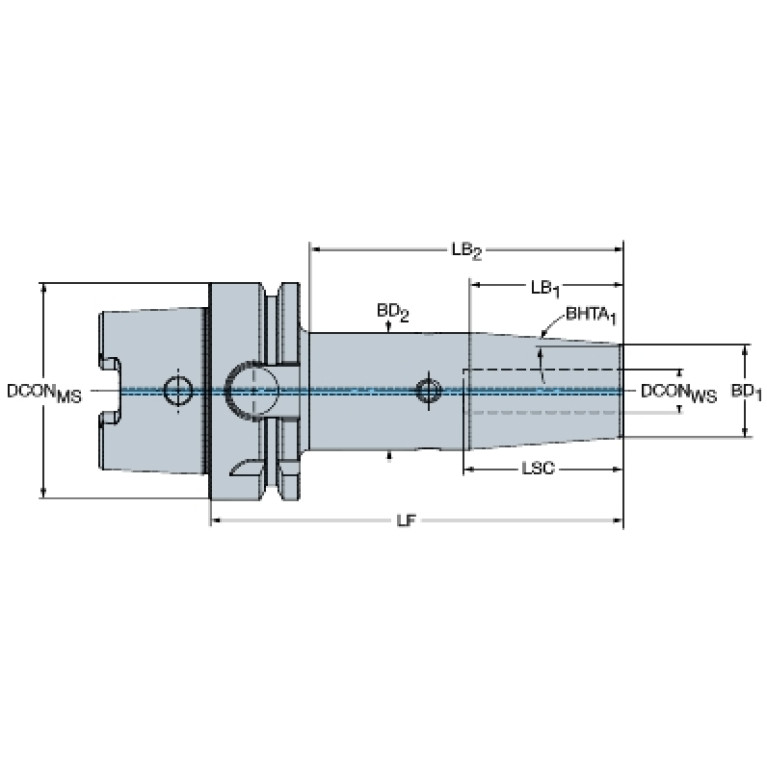

BD (Body diameter 2)

42 mm

BD (Body diameter 3)

100 mm

BD (Body diameter)

42.005 mm

BLDEV (Balancing device)

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

ZYL

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

1 - With Coolant exit, axial concentric

CXSC (Coolant exit style code) / Тип подвода СОЖ

1 - With Coolant exit, axial concentric

CZCWS (Connection size code)

0200

DCINTF (Interference cutting diameter)

33 mm

DCONWS (Diameter)

20 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

20 mm

DCP (Data chip provision)

1 - With data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

HSK10000195

HAND (Cutting direction)

N - Neutral

Interface codes

J6 / J61

ISO

HSK01C1000$$$$

LB (Body length 1)

57.21 mm

LB (Length 2)

18.79 mm

LB (Length Body diameter 3)

29 mm

LF (Functional length)

105 mm

LOC-01 ISO

ZYL01G2000h$00ZYL01G2000h$06

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

ZYL cylindrical shank

LOC-01 (CCUWS Connection code unit base)

1 Metric with coolant

LOC-01 (CZCWS Connection size code)

0200

LOC-01 (DCONWS Diameter)

20 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL02000115ZYL02000115

LOC-02 ISO

ZYL01R7874h$00ZYL01R7874h$06

LOC-02 (CCFWS Connection code form)

LOC-02 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-02 (CCTWS Connection code type)

ZYL cylindrical shank

LOC-02 (CCUWS Connection code unit base)

1 Metric with coolant

LOC-02 (CZCWS Connection size code)

0200

LOC-02 (DCONWS Diameter)

20 mm

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

ZYL07870135ZYL07870135

LOC-03 ISO

HSK01C1000$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

HSK Hollow taper shank

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

1000

LOC-03 (DCONMS Diameter)

100 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

HSK10000195

LPR (Protruding length)

105 mm

LS (Shank length)

41 mm

LSCX (Clamping length maximum)

41 mm

OAL (Overall length)

155 mm

RPMX (Rotational speed maximum)

12500 1/min

TA (Taper angle)

4.5 Degree

WT (Weight of item)

2.539 kg
