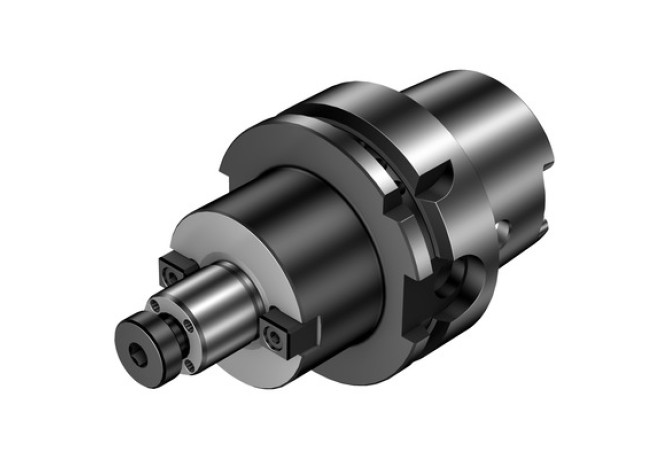

Главная Инструменты 401-01 - Converter, rotationally symmetric HA10-AAR38-B092-060

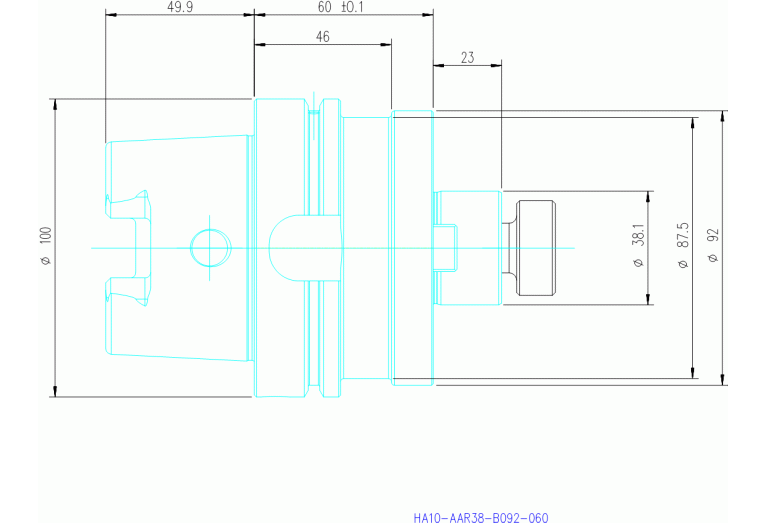

HA10-AAR38-B092-060

Артикул: 8049128

В наличии

0 ₽

В корзину

Описание

Характеристики

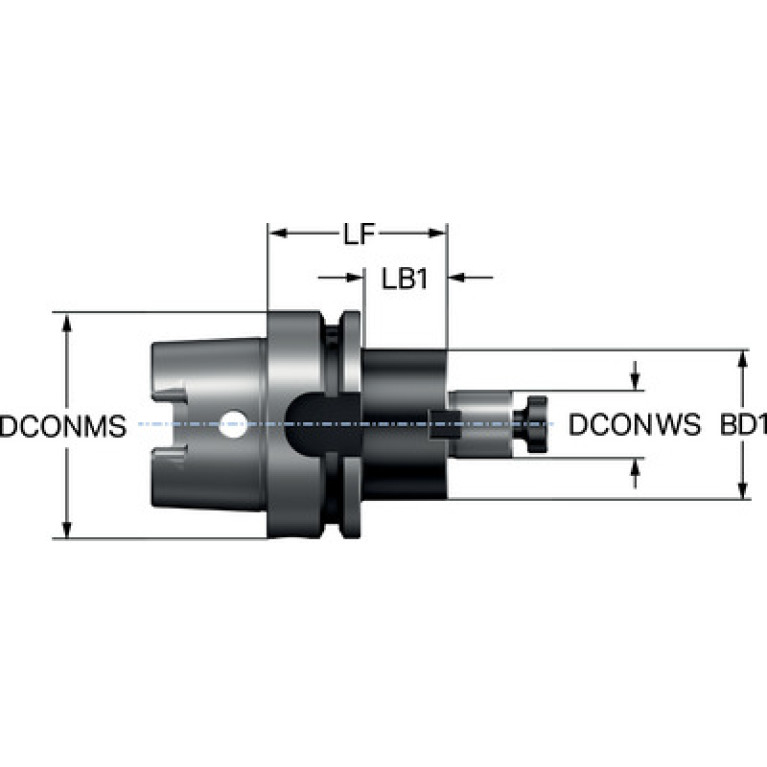

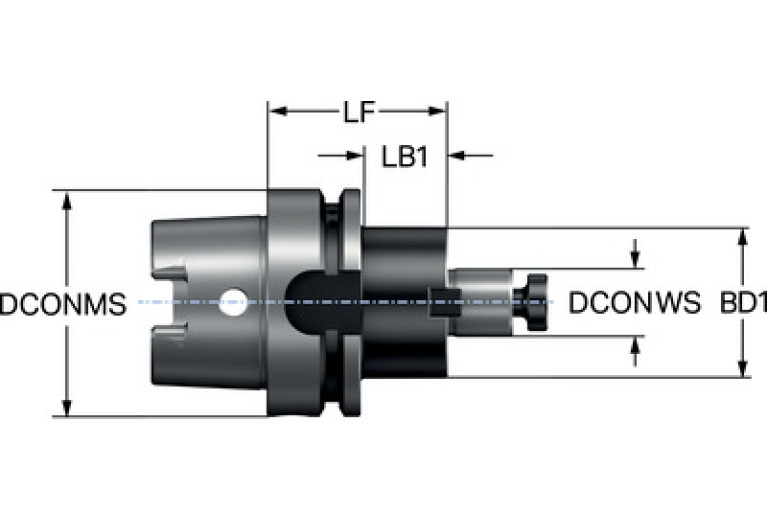

BD (Body diameter 2)

100 mm

BD (Body diameter)

92 mm

BLDEV (Balancing device)

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

FDA

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

4 - With Coolant exit, axial on hole circle

CXSC (Coolant exit style code) / Тип подвода СОЖ

4 - With Coolant exit, axial on hole circle

CZCWS (Connection size code)

1500

DBHC (Diameter bolt hole circle)

66.7 mm

DCONWS (Diameter)

100 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

100 mm

DCP (Data chip provision)

1 - With data chip

Delivery state valid from

12/1/2023

DIN

HSK10000195

HAND (Cutting direction)

N - Neutral

Interface codes

J6 / J61

ISO

HSK01C1000$$$$

LB (Body length 1)

31 mm

LB (Length 2)

29 mm

LF (Functional length)

60 mm

LOC-01 ISO

FDA12S1500****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

0 Hole in machine direction or shaft in workpiece direction

LOC-01 (CCTWS Connection code type)

FDA Milling arbor mounting

LOC-01 (CCUWS Connection code unit base)

3 Inch with coolant

LOC-01 (CZCWS Connection size code)

1500

LOC-01 (DCONWS Diameter)

100 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

FDA15001230

LOC-02 ISO

FDA22S1500****

LOC-02 (CCFWS Connection code form)

LOC-02 (CCSWS Connection code style)

0 Hole in machine direction or shaft in workpiece direction

LOC-02 (CCTWS Connection code type)

FDA Milling arbor mounting

LOC-02 (CCUWS Connection code unit base)

3 Inch with coolant

LOC-02 (CZCWS Connection size code)

1500

LOC-02 (DCONWS Diameter)

100 mm

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

FDA15002230

LOC-03 ISO

HSK01C1000$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

HSK Hollow taper shank

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

1000

LOC-03 (DCONMS Diameter)

100 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

HSK10000195

LPR (Protruding length)

60 mm

LS (Shank length)

23 mm

OAL (Overall length)

133 mm

RPMX (Rotational speed maximum)

12500 1/min

WT (Weight of item)

4.249 kg
