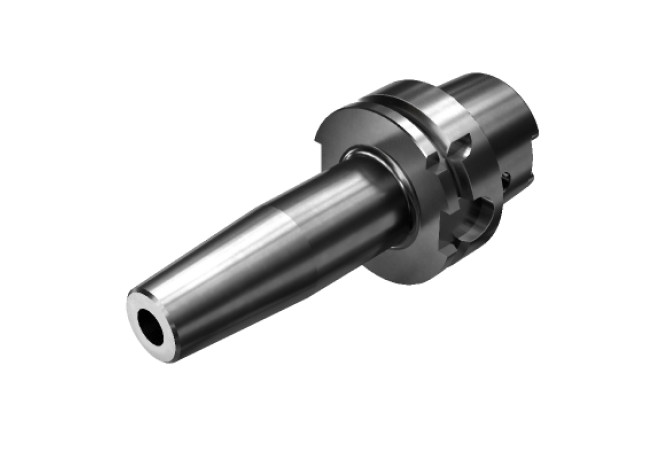

Главная Инструменты 401-01 - Converter, rotationally symmetric HA10-A-SH19-S-120

HA10-A-SH19-S-120

HA10-A-SH19-S-120 HA10-A-SH19-S-120 HA10-A-SH19-S-120 HA10-A-SH19-S-120

HA10-A-SH19-S-120

SV - Sandvik-Coromant
Артикул: 8268810
В наличии
0 ₽
В корзину
Описание
Характеристики

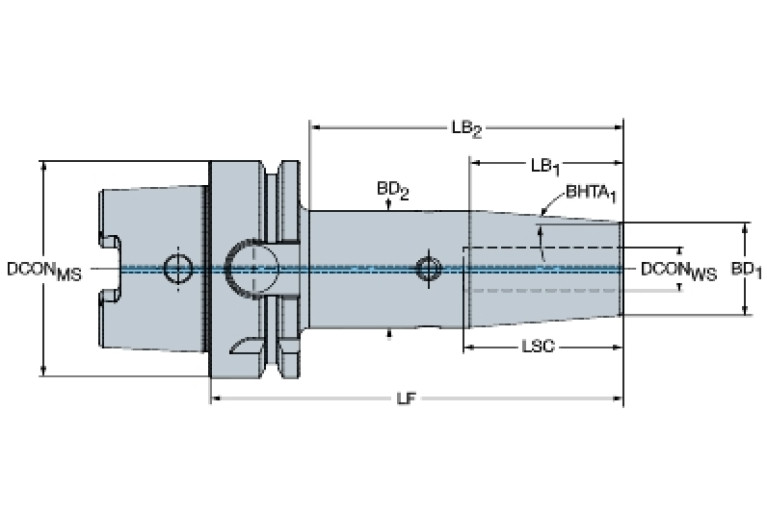

BD (Body diameter 2)
100 mm
BD (Body diameter)
42 mm
BLDEV (Balancing device)
1
CCFWS (Connection code form)
01
CCSWS (Connection code style)
5
CCTWS (Connection code type)
ZYL
CCUWS (Connection code unit base)
1
CNSC (Coolant entry style code)
1 - With Coolant entry, axial concentric
CXSC (Coolant exit style code)
1 - With Coolant exit, axial concentric
CXSC (Coolant exit style code) / Тип подвода СОЖ
1 - With Coolant exit, axial concentric
CZCWS (Connection size code)
0190
DCINTF (Interference cutting diameter)
33 mm
DCONWS (Diameter)
19 mm
DCONWS (Diameter) / Диаметр соединения со стороны заготовки
19 mm
DCP (Data chip provision)
1 - With data chip
Delivery state valid from
12/1/2023
DIN
HSK10000195
HAND (Cutting direction)
N - Neutral
Interface codes
J6 / J61
ISO
HSK01C1000$$$$
LB (Body length 1)
86 mm
LB (Length 2)
34 mm
LF (Functional length)
120 mm
LOC-01 ISO
ZYL01G1905h$00ZYL01G1905h$06
LOC-01 (CCFWS Connection code form)
01
LOC-01 (CCSWS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-01 (CCTWS Connection code type)
ZYL cylindrical shank
LOC-01 (CCUWS Connection code unit base)
1 Metric with coolant
LOC-01 (CZCWS Connection size code)
0190
LOC-01 (DCONWS Diameter)
19 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL01900115ZYL01900115
LOC-02 ISO
ZYL01R7500h$00ZYL01R7500h$06
LOC-02 (CCFWS Connection code form)
01
LOC-02 (CCSWS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-02 (CCTWS Connection code type)
ZYL cylindrical shank
LOC-02 (CCUWS Connection code unit base)
1 Metric with coolant
LOC-02 (CZCWS Connection size code)
0190
LOC-02 (DCONWS Diameter)
19 mm
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
ZYL07500135ZYL07500135
LOC-03 ISO
HSK01C1000$$$$
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
HSK Hollow taper shank
LOC-03 (CCUMS Connection code unit base)
9 non-dimensional size with coolant
LOC-03 (CZCMS Connection size code)
1000
LOC-03 (DCONMS Diameter)
100 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK10000195
LPR (Protruding length)
120 mm
LS (Shank length)
51 mm
LSCN (Clamping length minimum)
41 mm
LSCX (Clamping length maximum)
51 mm
OAL (Overall length)
170 mm
RPMX (Rotational speed maximum)
12500 1/min
TA (Taper angle)
4.5 Degree
WT (Weight of item)
2.702 kg
