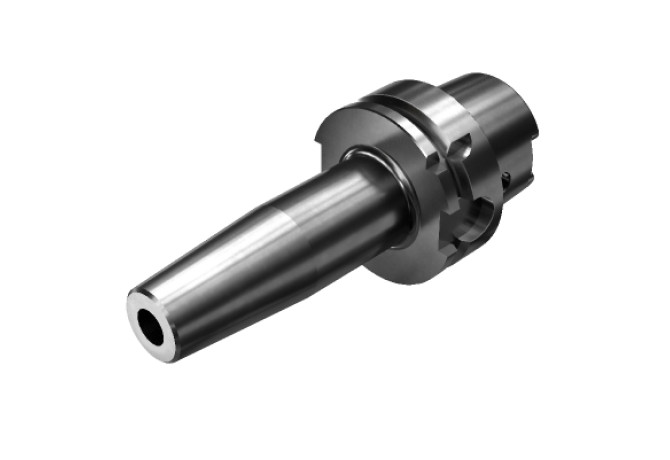

HA06-SH16Q-S-095
HA06-SH16Q-S-095
Артикул:
7081621
В наличии
0 ₽

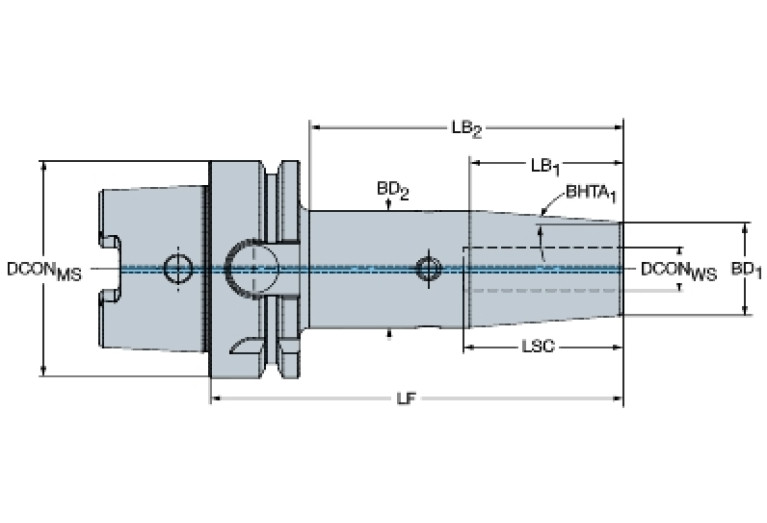

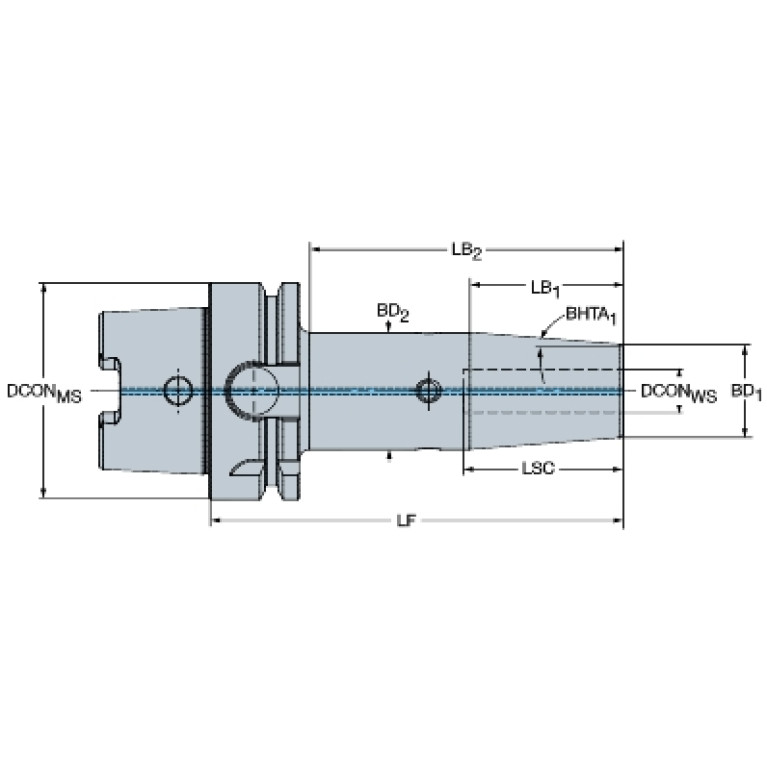

Характеристики
BD (Body diameter 2)
34 mm
BD (Body diameter 3)
63 mm
BD (Body diameter)
34.003 mm
BLDEV (Balancing device)
1
CCFWS (Connection code form)
01
CCSWS (Connection code style)
5
CCTWS (Connection code type)
ZYL
CCUWS (Connection code unit base)
1
CNSC (Coolant entry style code)
1 - With Coolant entry, axial concentric
CXSC (Coolant exit style code)
1 - With Coolant exit, axial concentric
CXSC (Coolant exit style code) / Тип подвода СОЖ
1 - With Coolant exit, axial concentric
CZCWS (Connection size code)
0160
DCINTF (Interference cutting diameter)
27 mm
DCONWS (Diameter)
16 mm
DCONWS (Diameter) / Диаметр соединения со стороны заготовки
16 mm
DCP (Data chip provision)
1 - With data chip
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
HSK06300195
HAND (Cutting direction)
N - Neutral
Interface codes
J6 / J61
ISO
HSK01C0630$$$$
LB (Body length 1)
44.49 mm
LB (Length 2)
24.51 mm
LB (Length Body diameter 3)
26 mm
LF (Functional length)
95 mm
LOC-01 ISO
ZYL01G1600h$00ZYL01G1600h$06
LOC-01 (CCFWS Connection code form)
01
LOC-01 (CCSWS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-01 (CCTWS Connection code type)
ZYL cylindrical shank
LOC-01 (CCUWS Connection code unit base)
1 Metric with coolant
LOC-01 (CZCWS Connection size code)
0160
LOC-01 (DCONWS Diameter)
16 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL01600115ZYL01600115
LOC-02 ISO
ZYL01R6299h$00ZYL01R6299h$06
LOC-02 (CCFWS Connection code form)
01
LOC-02 (CCSWS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-02 (CCTWS Connection code type)
ZYL cylindrical shank
LOC-02 (CCUWS Connection code unit base)
1 Metric with coolant
LOC-02 (CZCWS Connection size code)
0160
LOC-02 (DCONWS Diameter)
16 mm
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
ZYL06290135ZYL06290135
LOC-03 ISO
HSK01C0630$$$$
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
HSK Hollow taper shank
LOC-03 (CCUMS Connection code unit base)
9 non-dimensional size with coolant
LOC-03 (CZCMS Connection size code)
0630
LOC-03 (DCONMS Diameter)
63 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK06300195
LPR (Protruding length)
95 mm
LS (Shank length)
39 mm
LSCX (Clamping length maximum)
39 mm
OAL (Overall length)
127 mm
RPMX (Rotational speed maximum)
20500 1/min
TA (Taper angle)
4.5 Degree
WT (Weight of item)
0.972 kg
