Главная Инструменты 401-01 - Converter, rotationally symmetric HA06-SH10Q-S-085

HA06-SH10Q-S-085

Артикул: 7081549

В наличии

0 ₽

В корзину

Описание

Характеристики

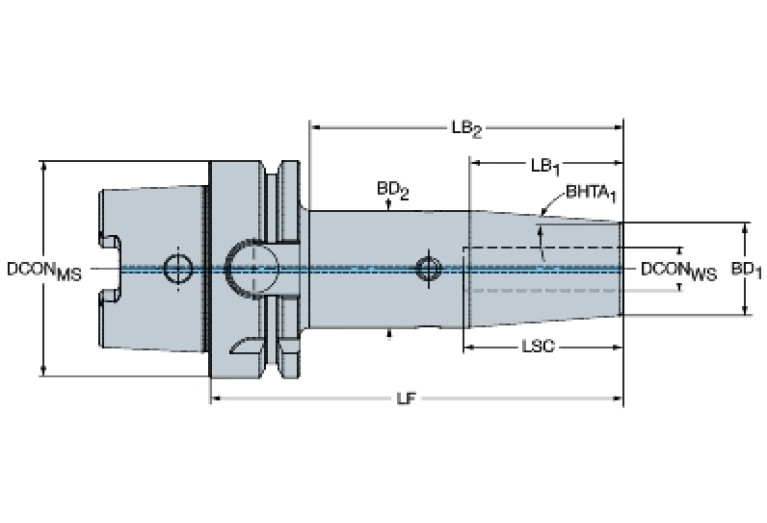

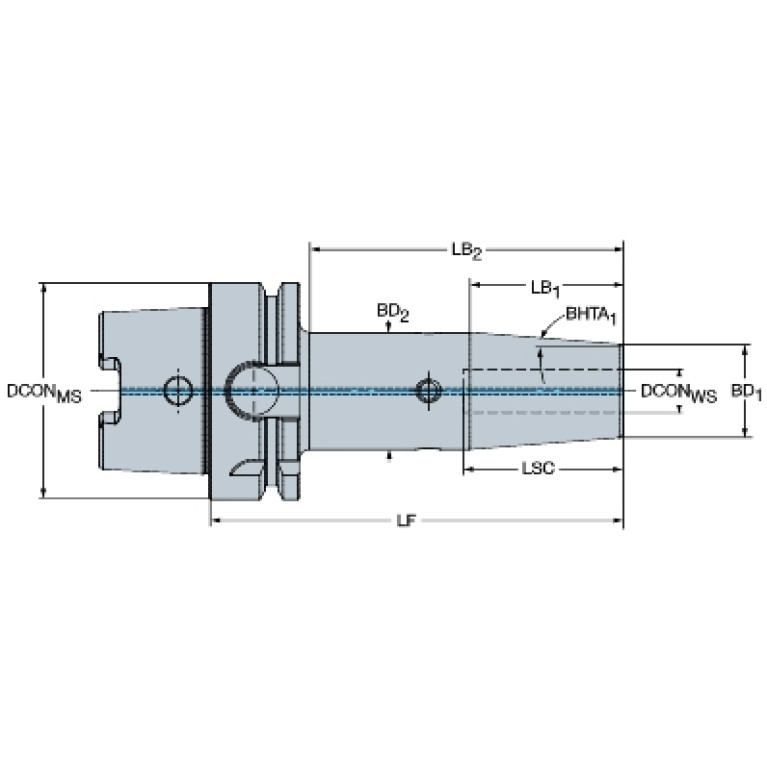

BD (Body diameter 2)

32 mm

BD (Body diameter 3)

63 mm

BD (Body diameter)

32.004 mm

BLDEV (Balancing device)

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

ZYL

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

1 - With Coolant exit, axial concentric

CXSC (Coolant exit style code) / Тип подвода СОЖ

1 - With Coolant exit, axial concentric

CZCWS (Connection size code)

0100

DCINTF (Interference cutting diameter)

24 mm

DCONWS (Diameter)

10 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

10 mm

DCP (Data chip provision)

1 - With data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

HSK06300195

HAND (Cutting direction)

N - Neutral

Interface codes

J6 / J61

ISO

HSK01C0630$$$$

LB (Body length 1)

50.85 mm

LB (Length 2)

8.15 mm

LB (Length Body diameter 3)

26 mm

LF (Functional length)

85 mm

LOC-01 ISO

ZYL01G1000h$00ZYL01G1000h$06

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

ZYL cylindrical shank

LOC-01 (CCUWS Connection code unit base)

1 Metric with coolant

LOC-01 (CZCWS Connection size code)

0100

LOC-01 (DCONWS Diameter)

10 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL01000115ZYL01000115

LOC-02 ISO

ZYL01R3937h$00ZYL01R3937h$06

LOC-02 (CCFWS Connection code form)

LOC-02 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-02 (CCTWS Connection code type)

ZYL cylindrical shank

LOC-02 (CCUWS Connection code unit base)

1 Metric with coolant

LOC-02 (CZCWS Connection size code)

0100

LOC-02 (DCONWS Diameter)

10 mm

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

ZYL03930135ZYL03930135

LOC-03 ISO

HSK01C0630$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

HSK Hollow taper shank

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

0630

LOC-03 (DCONMS Diameter)

63 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

HSK06300195

LPR (Protruding length)

85 mm

LS (Shank length)

31 mm

LSCX (Clamping length maximum)

31 mm

OAL (Overall length)

117 mm

RPMX (Rotational speed maximum)

20500 1/min

TA (Taper angle)

4.5 Degree

WT (Weight of item)

0.901 kg
