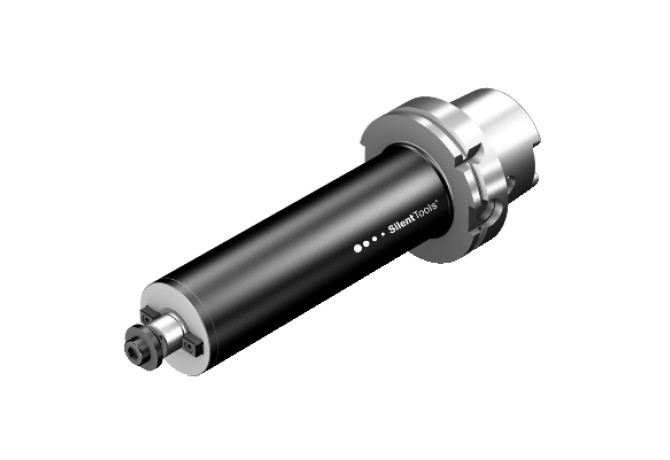

Главная Инструменты 401-01 - Converter, rotationally symmetric HA06-Q16D-038-230

HA06-Q16D-038-230

Артикул: 7092102

В наличии

0 ₽

В корзину

Описание

Характеристики

BD (Body diameter 2)

63 mm

BD (Body diameter)

38 mm

BLDEV (Balancing device)

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

FDA

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

4 - With Coolant exit, axial on hole circle

CXSC (Coolant exit style code) / Тип подвода СОЖ

4 - With Coolant exit, axial on hole circle

CZCWS (Connection size code)

0160

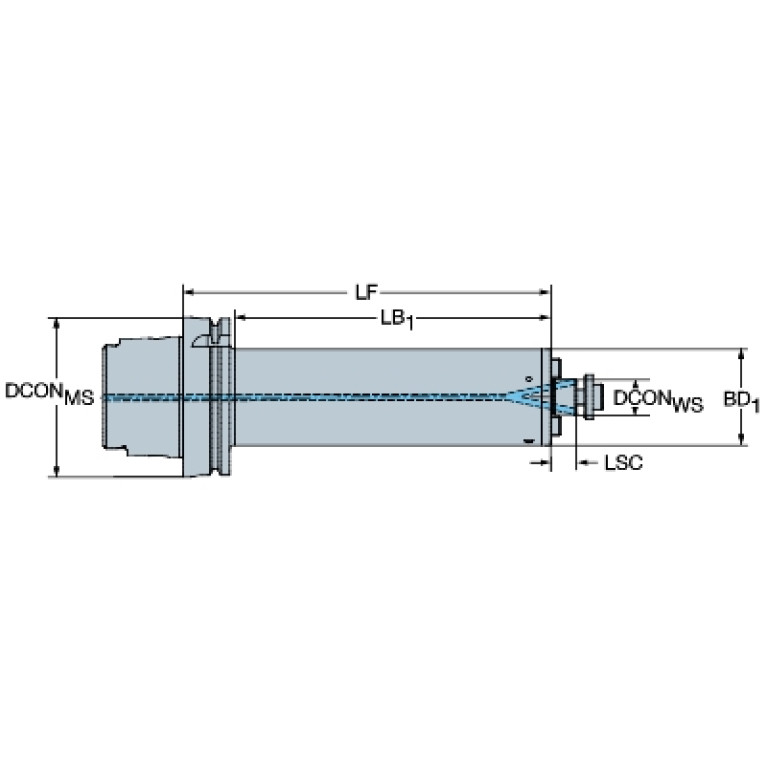

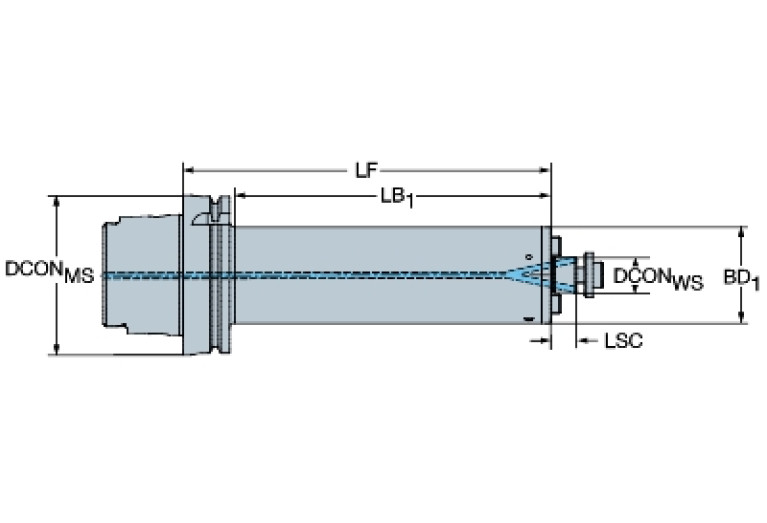

DCONWS (Diameter)

63 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

63 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

HSK06300195

HAND (Cutting direction)

N - Neutral

Interface codes

J6 / J61

ISO

HSK01C0630$$$$

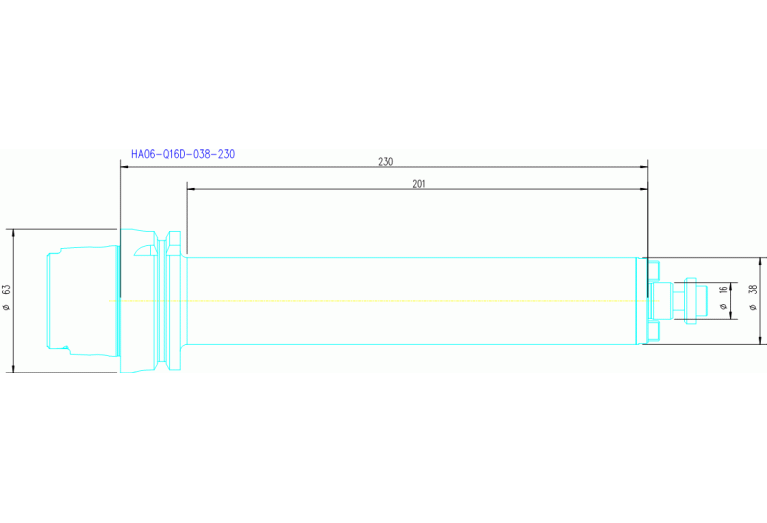

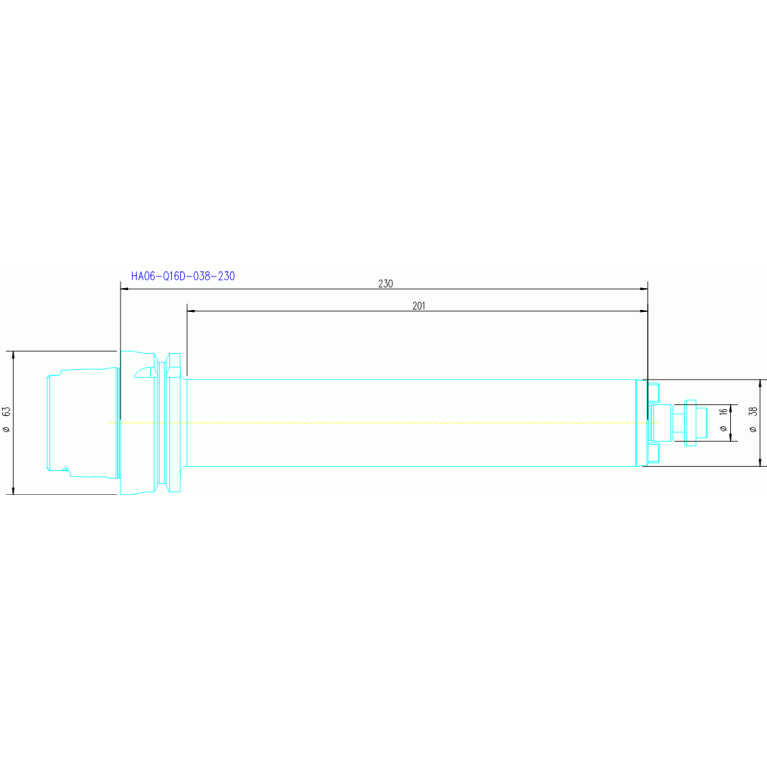

LB (Body length 1)

201 mm

LB (Length 2)

29 mm

LF (Functional length)

230 mm

LOC-01 ISO

FDA12G1600****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

0 Hole in machine direction or shaft in workpiece direction

LOC-01 (CCTWS Connection code type)

FDA Milling arbor mounting

LOC-01 (CCUWS Connection code unit base)

1 Metric with coolant

LOC-01 (CZCWS Connection size code)

0160

LOC-01 (DCONWS Diameter)

63 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

FDA01601210

LOC-02 ISO

FDA22G1600****

LOC-02 (CCFWS Connection code form)

LOC-02 (CCSWS Connection code style)

0 Hole in machine direction or shaft in workpiece direction

LOC-02 (CCTWS Connection code type)

FDA Milling arbor mounting

LOC-02 (CCUWS Connection code unit base)

1 Metric with coolant

LOC-02 (CZCWS Connection size code)

0160

LOC-02 (DCONWS Diameter)

63 mm

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

FDA01602210

LOC-03 ISO

HSK01C0630$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

HSK Hollow taper shank

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

0630

LOC-03 (DCONMS Diameter)

63 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

HSK06300195

LPR (Protruding length)

230 mm

LS (Shank length)

11 mm

LSCX (Clamping length maximum)

11 mm

OAL (Overall length)

262 mm

RPMX (Rotational speed maximum)

8000 1/min

WT (Weight of item)

2.7 kg
