Главная Инструменты 401-01 - Converter, rotationally symmetric HA06-A-SH03-P-120

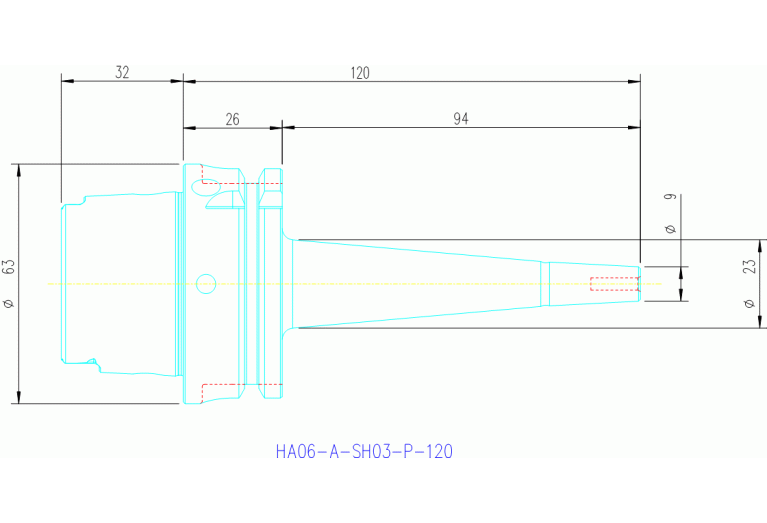

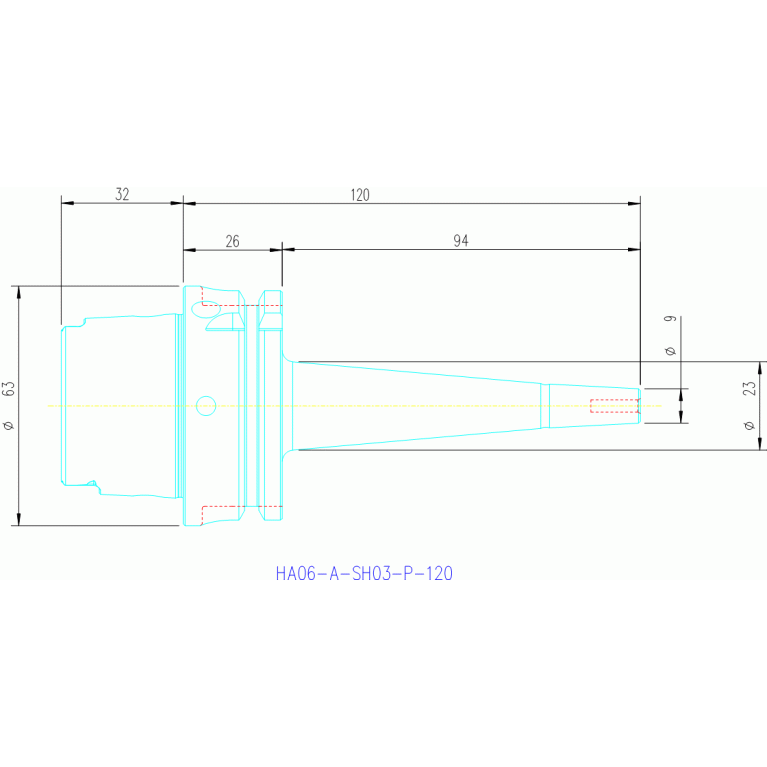

HA06-A-SH03-P-120

Артикул: 8291048

В наличии

0 ₽

В корзину

Описание

Характеристики

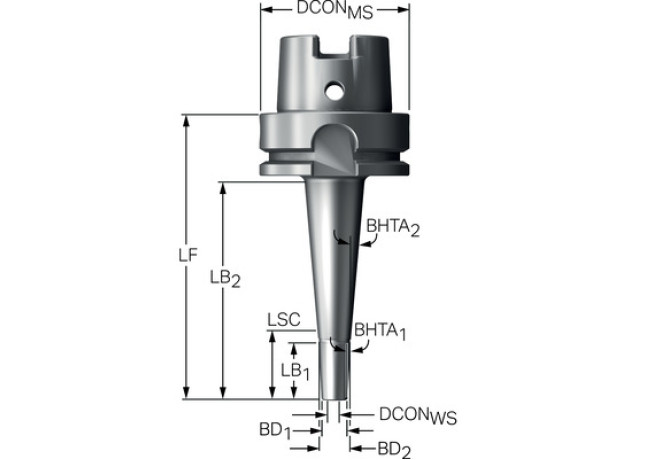

BD (Body diameter 2)

23.016 mm

BD (Body diameter 3)

63 mm

BD (Body diameter)

11.739 mm

BHTA (Body half taper angle 2)

5 Degree

BLDEV (Balancing device)

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

ZYL

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

1 - With Coolant exit, axial concentric

CXSC (Coolant exit style code) / Тип подвода СОЖ

1 - With Coolant exit, axial concentric

CZCWS (Connection size code)

0031

DCINTF (Interference cutting diameter)

9 mm

DCONWS (Diameter)

3.1 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

3.1 mm

DCP (Data chip provision)

1 - With data chip

Delivery state valid from

12/1/2023

DIN

HSK06300195

HAND (Cutting direction)

N - Neutral

Interface codes

J6 / J61

ISO

HSK01C0630$$$$

LB (Body length 1)

26.13 mm

LB (Length 2)

65.13 mm

LB (Length Body diameter 3)

28.74 mm

LF (Functional length)

120 mm

LOC-01 ISO

ZYL01F3175h$00ZYL01F3175h$06

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

ZYL cylindrical shank

LOC-01 (CCUWS Connection code unit base)

1 Metric with coolant

LOC-01 (CZCWS Connection size code)

0031

LOC-01 (DCONWS Diameter)

3.1 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL00310115ZYL00310115

LOC-02 ISO

ZYL01R1250h$00ZYL01R1250h$06

LOC-02 (CCFWS Connection code form)

LOC-02 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-02 (CCTWS Connection code type)

ZYL cylindrical shank

LOC-02 (CCUWS Connection code unit base)

1 Metric with coolant

LOC-02 (CZCWS Connection size code)

0031

LOC-02 (DCONWS Diameter)

3.1 mm

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

ZYL01250135ZYL01250135

LOC-03 ISO

HSK01C0630$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

HSK Hollow taper shank

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

0630

LOC-03 (DCONMS Diameter)

63 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

HSK06300195

LPR (Protruding length)

120 mm

LS (Shank length)

13 mm

LSCX (Clamping length maximum)

13 mm

OAL (Overall length)

152 mm

RPMX (Rotational speed maximum)

20500 1/min

TA (Taper angle)

3 Degree

WT (Weight of item)

0.765 kg
