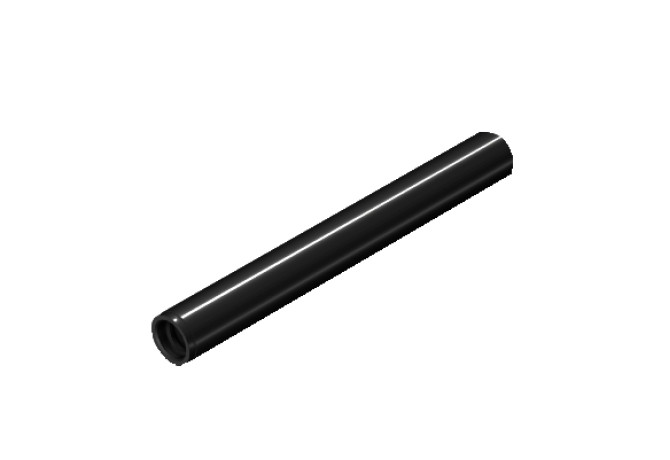

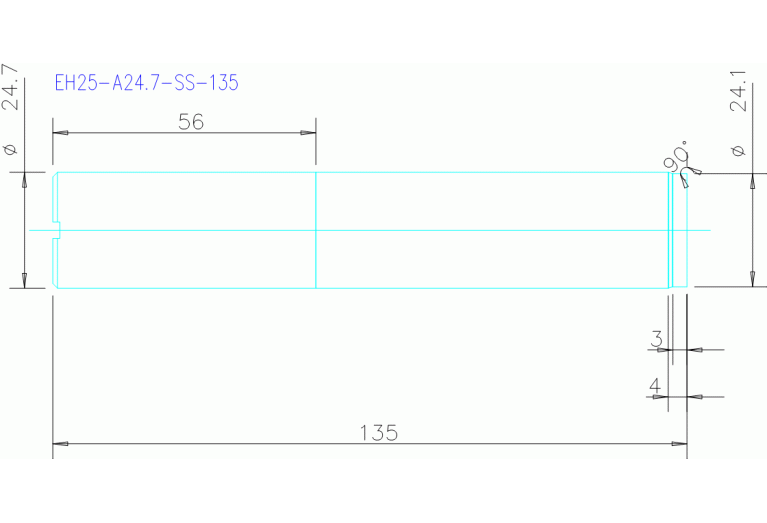

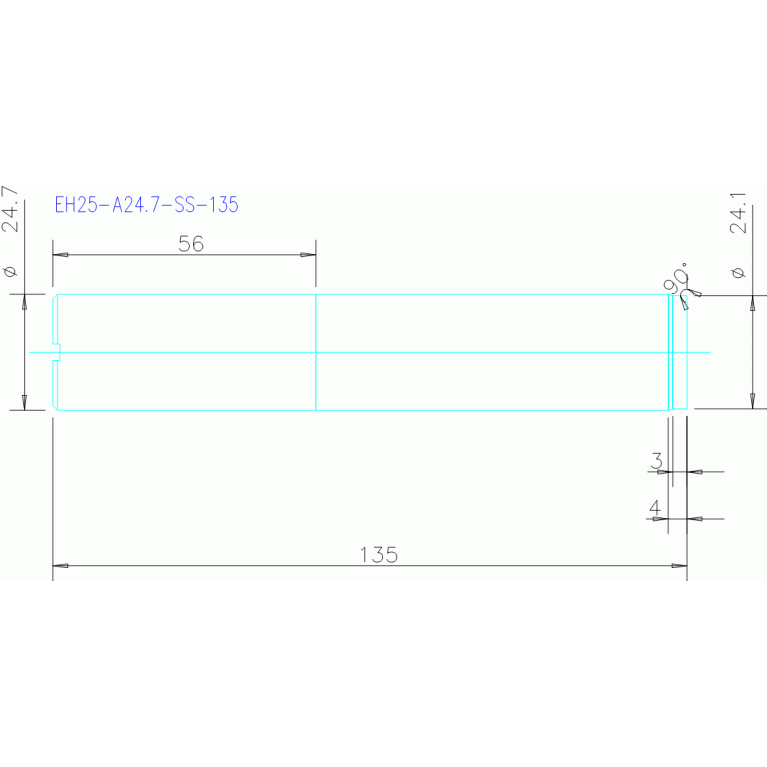

EH25-A24.7-SS-135
EH25-A24.7-SS-135
Артикул:
6731078
В наличии
0 ₽
Характеристики
BD (Body diameter)
24.7 mm
BLDEV (Balancing device)
1
CCFWS (Connection code form)
04
CCSWS (Connection code style)
5
CCTWS (Connection code type)
SAC
CCUWS (Connection code unit base)
1
CNSC (Coolant entry style code)
1 - With Coolant entry, axial concentric
CXSC (Coolant exit style code)
1 - With Coolant exit, axial concentric
CXSC (Coolant exit style code) / Тип подвода СОЖ
1 - With Coolant exit, axial concentric
CZCWS (Connection size code)
0250

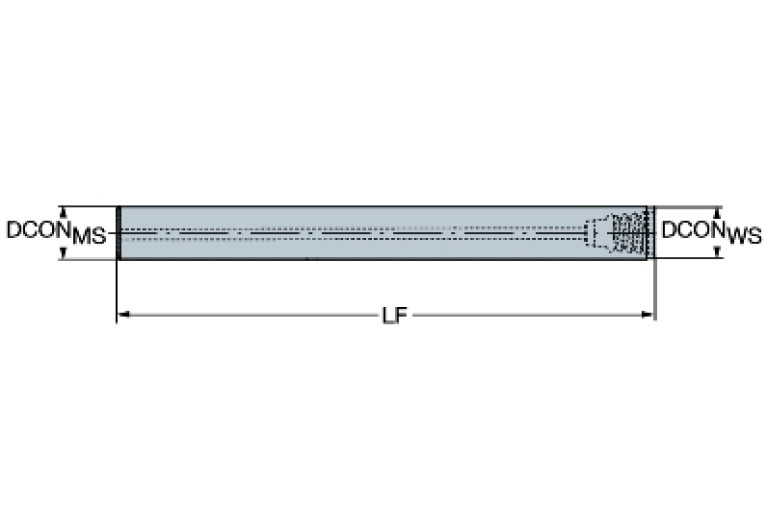

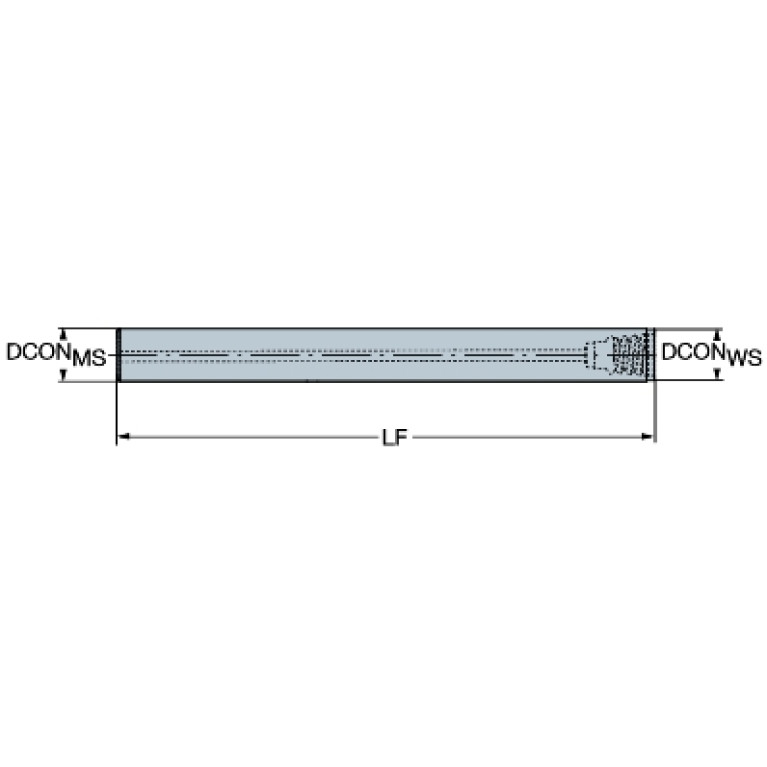

DCONWS (Diameter)
24.7 mm
DCONWS (Diameter) / Диаметр соединения со стороны заготовки
24.7 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL02470115
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
ZYL01G2470h$06
LB (Body length 1)
135 mm
LF (Functional length)
135 mm
LOC-01 (CCFWS Connection code form)
04
LOC-01 (CCSWS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-01 (CCTWS Connection code type)
SAC Screw mounting SANDVIK Coromant
LOC-01 (CCUWS Connection code unit base)
1 Metric with coolant
LOC-01 (CZCWS Connection size code)
0250
LOC-01 (DCONWS Diameter)
24.7 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SAC02500415
LOC-02 ISO
SAC04B0250****
LOC-02 (DCONWS Diameter)
24.7 mm
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-03 ISO
ZYL01G2470h$06
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
ZYL cylindrical shank
LOC-03 (CCUMS Connection code unit base)
1 Metric with coolant
LOC-03 (CZCMS Connection size code)
0247
LOC-03 (DCONMS Diameter)
24.7 mm
LOC-03 (TCDCONCDMS Connection tolerance class coded)
h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02470115
LPR (Protruding length)
84 mm
LS (Shank length)
132 mm
LSCX (Clamping length maximum)
132 mm
OAL (Overall length)
135 mm
RPMX (Rotational speed maximum)
40000 1/min
TCDCONMS (ISO-tolerance class shank diameter)
h6
WT (Weight of item)
0.56 kg
