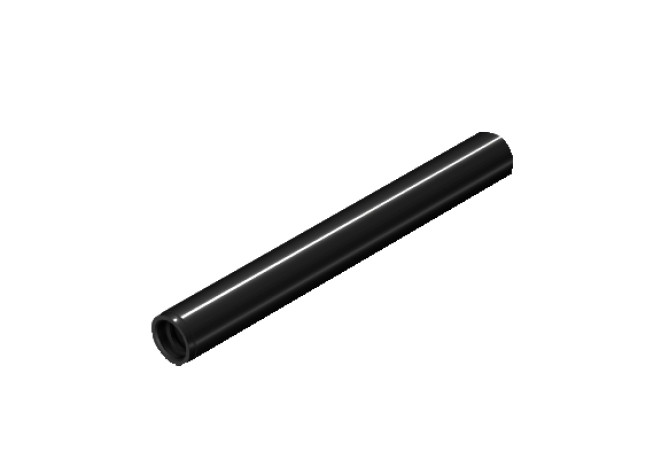

Главная Инструменты 401-01 - Converter, rotationally symmetric EH16-A15.7-SS-100

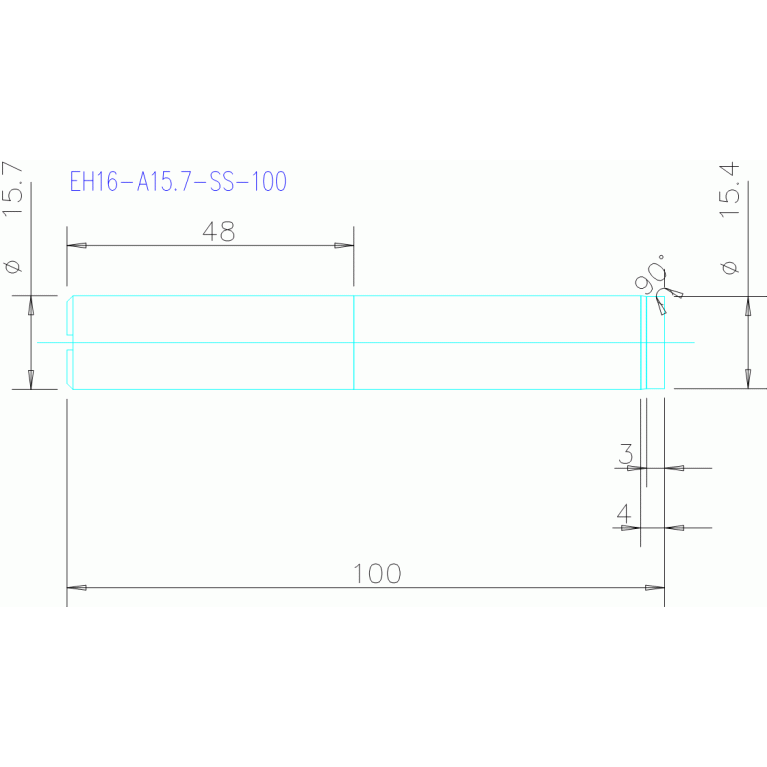

EH16-A15.7-SS-100

Артикул: 6731076

В наличии

0 ₽

В корзину

Описание

Характеристики

BD (Body diameter)

15.7 mm

BLDEV (Balancing device)

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

SAC

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

1 - With Coolant exit, axial concentric

CXSC (Coolant exit style code) / Тип подвода СОЖ

1 - With Coolant exit, axial concentric

CZCWS (Connection size code)

0160

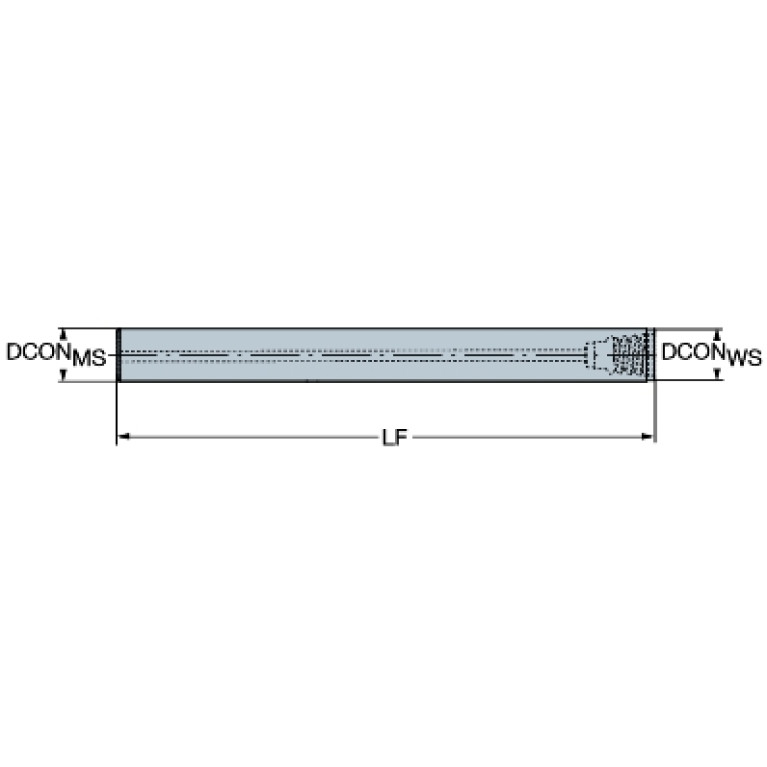

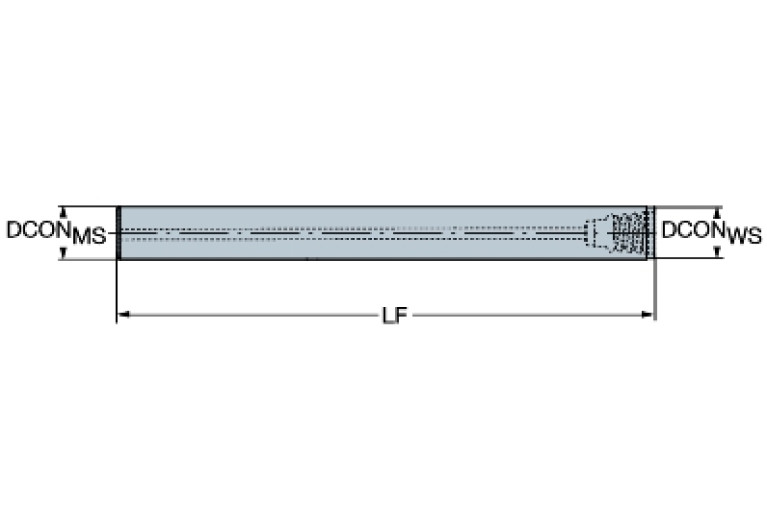

DCONWS (Diameter)

15.7 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

15.7 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYL01570115

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL01G1570h$06

LB (Body length 1)

100 mm

LF (Functional length)

100 mm

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

SAC Screw mounting SANDVIK Coromant

LOC-01 (CCUWS Connection code unit base)

1 Metric with coolant

LOC-01 (CZCWS Connection size code)

0160

LOC-01 (DCONWS Diameter)

15.7 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

SAC01600415

LOC-02 ISO

SAC04B0160****

LOC-02 (DCONWS Diameter)

15.7 mm

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-03 ISO

ZYL01G1570h$06

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

1 Metric with coolant

LOC-03 (CZCMS Connection size code)

0157

LOC-03 (DCONMS Diameter)

15.7 mm

LOC-03 (TCDCONCDMS Connection tolerance class coded)

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01570115

LPR (Protruding length)

59 mm

LS (Shank length)

97 mm

LSCX (Clamping length maximum)

97 mm

OAL (Overall length)

100 mm

RPMX (Rotational speed maximum)

40000 1/min

TCDCONMS (ISO-tolerance class shank diameter)

WT (Weight of item)

0.243 kg
