Главная Инструменты 401-01 - Converter, rotationally symmetric EH10-A09.7-SH-100

EH10-A09.7-SH-100

Артикул: 6408185

В наличии

0 ₽

В корзину

Описание

Характеристики

BD (Body diameter)

9.7 mm

BLDEV (Balancing device)

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

SAC

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

1 - With Coolant exit, axial concentric

CXSC (Coolant exit style code) / Тип подвода СОЖ

1 - With Coolant exit, axial concentric

CZCWS (Connection size code)

0100

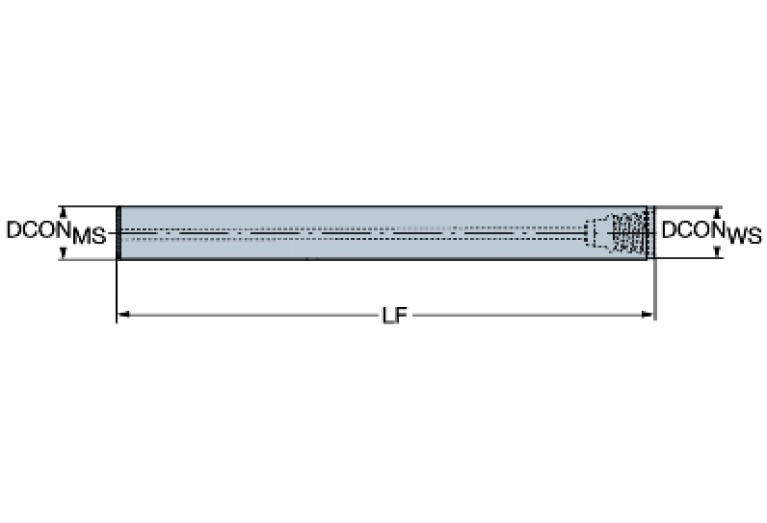

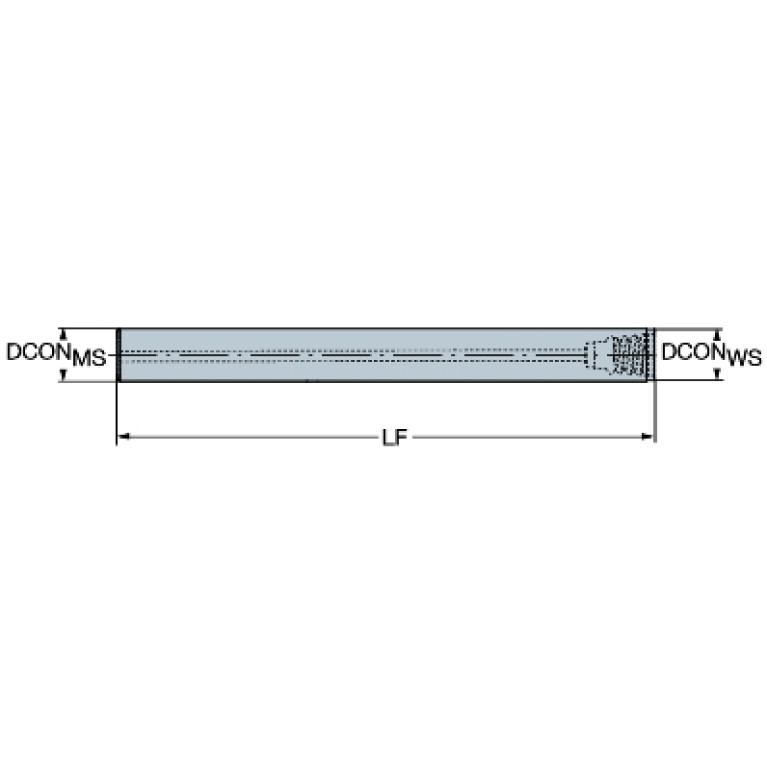

DCONWS (Diameter)

9.7 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

9.7 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

ZYL00970115

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL01F9700h$06

LB (Body length 1)

100 mm

LF (Functional length)

100 mm

LOC-01 ISO

SAC04A0100****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

SAC Screw mounting SANDVIK Coromant

LOC-01 (CCUWS Connection code unit base)

1 Metric with coolant

LOC-01 (CZCWS Connection size code)

0100

LOC-01 (DCONWS Diameter)

9.7 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

SAC01000415

LOC-03 ISO

ZYL01F9700h$06

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

1 Metric with coolant

LOC-03 (CZCMS Connection size code)

0097

LOC-03 (DCONMS Diameter)

9.7 mm

LOC-03 (TCDCONCDMS Connection tolerance class coded)

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00970115

LPR (Protruding length)

59 mm

LS (Shank length)

97 mm

LSCX (Clamping length maximum)

97 mm

OAL (Overall length)

100 mm

RPMX (Rotational speed maximum)

23000 1/min

TCDCONMS (ISO-tolerance class shank diameter)

WT (Weight of item)

0.171 kg
