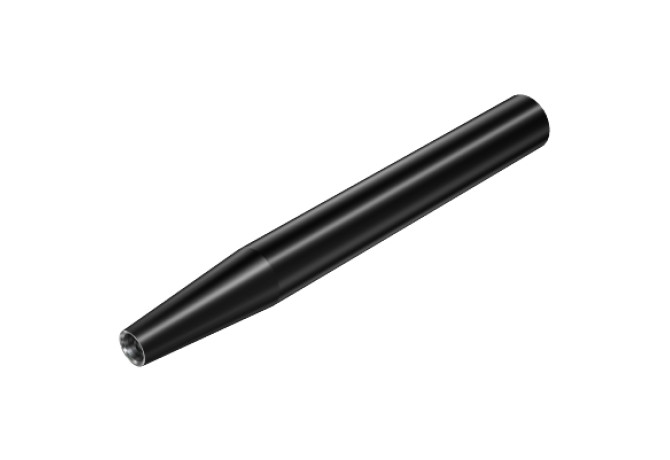

Главная Инструменты 401-01 - Converter, rotationally symmetric E12-A32-CS-250

E12-A32-CS-250

Артикул: 5732632

В наличии

0 ₽

В корзину

Описание

Характеристики

BD (Body diameter 2)

32 mm

BD (Body diameter)

31.983 mm

BLDEV (Balancing device)

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

SAC

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

1 - With Coolant exit, axial concentric

CXSC (Coolant exit style code) / Тип подвода СОЖ

1 - With Coolant exit, axial concentric

CZCWS (Connection size code)

0120

DCINTF (Interference cutting diameter)

11.6 mm

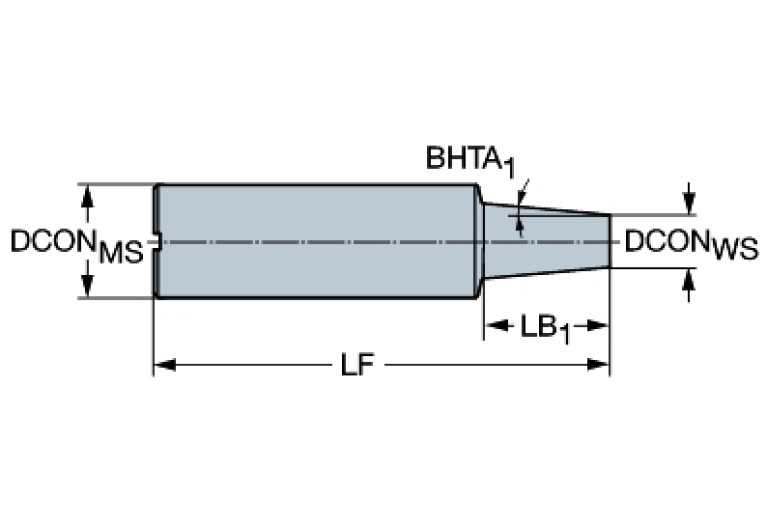

DCONWS (Diameter)

32 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

32 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYL03200115

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL01G3200h$06

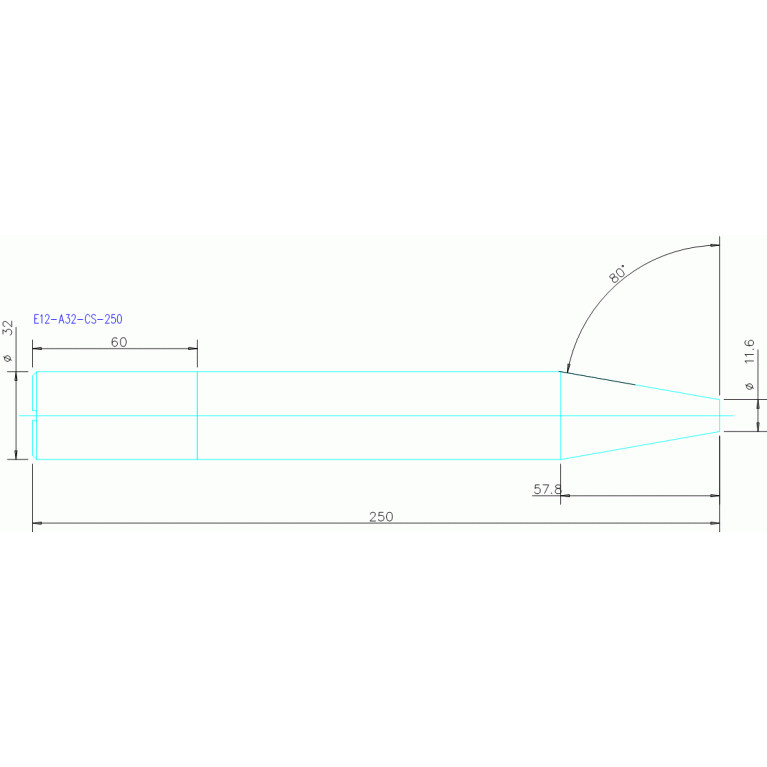

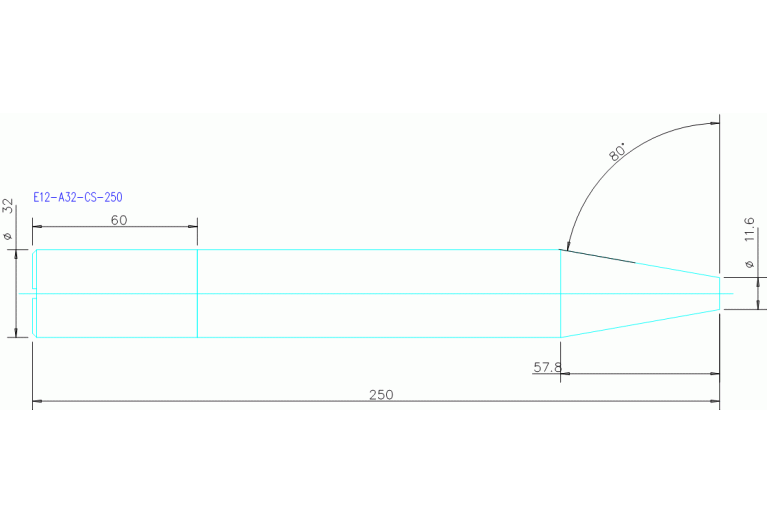

LB (Body length 1)

57.8 mm

LB (Length 2)

192.2 mm

LF (Functional length)

250 mm

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

SAC Screw mounting SANDVIK Coromant

LOC-01 (CCUWS Connection code unit base)

1 Metric with coolant

LOC-01 (CZCWS Connection size code)

0120

LOC-01 (DCONWS Diameter)

32 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

SAC01200415

LOC-02 ISO

SAC04B0120****

LOC-02 (DCONWS Diameter)

32 mm

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-03 ISO

ZYL01G3200h$06

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

1 Metric with coolant

LOC-03 (CZCMS Connection size code)

0320

LOC-03 (DCONMS Diameter)

32 mm

LOC-03 (TCDCONCDMS Connection tolerance class coded)

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL03200115

LPR (Protruding length)

199 mm

LS (Shank length)

192 mm

LSCX (Clamping length maximum)

192 mm

OAL (Overall length)

250 mm

RPMX (Rotational speed maximum)

10000 1/min

TA (Taper angle)

10 Degree

TCDCONMS (ISO-tolerance class shank diameter)

WT (Weight of item)

1 kg
