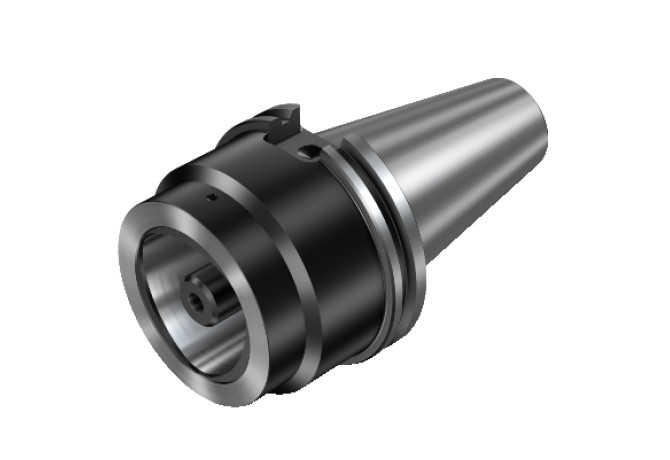

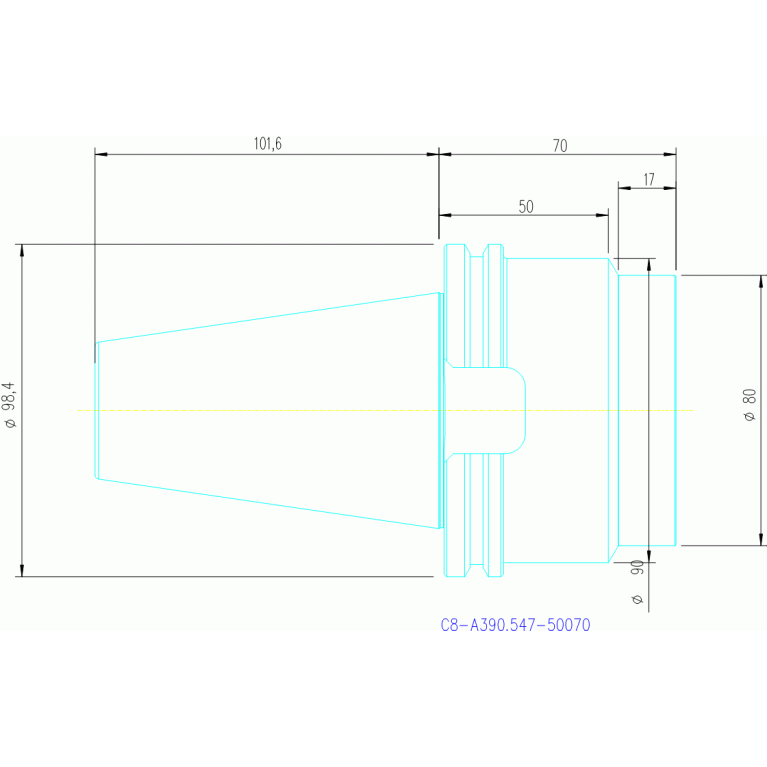

C8-A390.547-50 070
C8-A390.547-50 070
Артикул:
5729806
В наличии
0 ₽

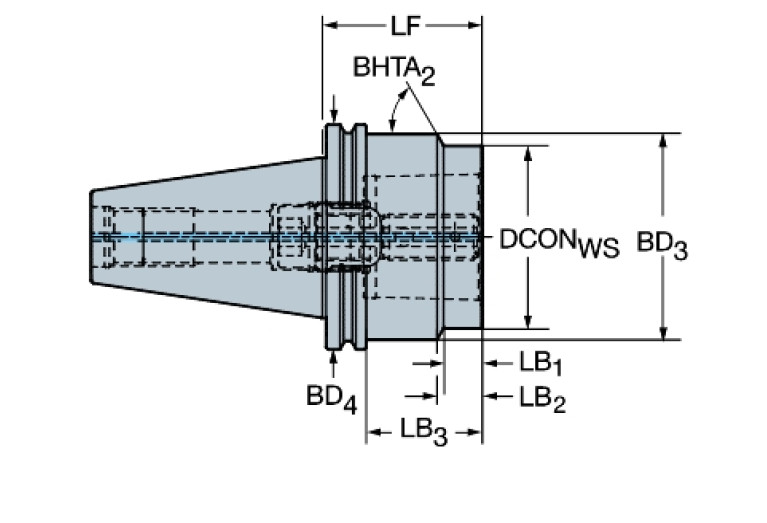

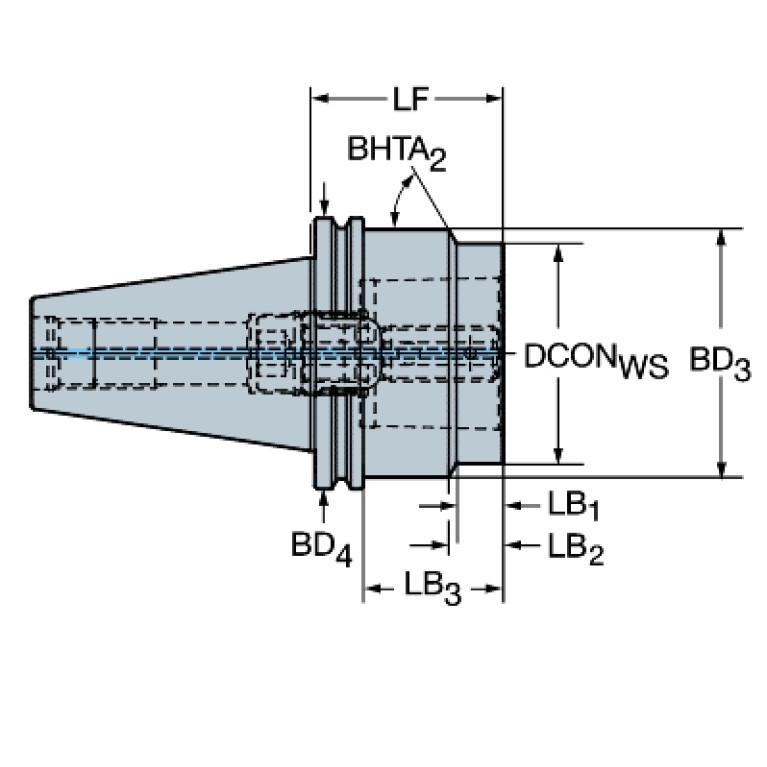

Характеристики
BD (Body diameter 2)
90.046 mm
BD (Body diameter 3)
90 mm
BD (Body diameter)
80 mm
BHTA (Body half taper angle 2)
60 Degree
BLDEV (Balancing device)
CCFWS (Connection code form)
03
CCSWS (Connection code style)
5
CCTWS (Connection code type)
CCS
CCUWS (Connection code unit base)
9
CNSC (Coolant entry style code)
1 - With Coolant entry, axial concentric
CXSC (Coolant exit style code)
1 - With Coolant exit, axial concentric
CXSC (Coolant exit style code) / Тип подвода СОЖ
1 - With Coolant exit, axial concentric
CZCWS (Connection size code)
0800
DCONWS (Diameter)
80 mm
DCONWS (Diameter) / Диаметр соединения со стороны заготовки
80 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state valid from
12/1/2023
DF (Flange diameter)
98.42 mm
DIN
SKG05003195
HAND (Cutting direction)
N - Neutral
Interface codes
J6 / J61
ISO
SKG31C0500$$$$
KAP (Kappa)
270 Degree
LB (Body length 1)
17.1 mm
LB (Length 2)
2.9 mm
LB (Length Body diameter 3)
30.9 mm
LF (Functional length)
70 mm
LOC-01 ISO
CCS03C0800****
LOC-01 (CCFWS Connection code form)
03
LOC-01 (CCSWS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-01 (CCTWS Connection code type)
CCS Coromant Capto System SANDVIK
LOC-01 (CCUWS Connection code unit base)
9 non-dimensional size with coolant
LOC-01 (CZCWS Connection size code)
0800
LOC-01 (DCONWS Diameter)
80 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
CCS08000395
LOC-02 ISO
CCS01C0800****
LOC-02 (CCFWS Connection code form)
03
LOC-02 (CCSWS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-02 (CCTWS Connection code type)
CCS Coromant Capto System SANDVIK
LOC-02 (CCUWS Connection code unit base)
9 non-dimensional size with coolant
LOC-02 (CZCWS Connection size code)
0800
LOC-02 (DCONWS Diameter)
80 mm
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
CCS08000195
LOC-03 ISO
SKG31C0500$$$$
LOC-03 (CCFMS Connection code form)
31
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
SKG steep taper shank
LOC-03 (CCUMS Connection code unit base)
9 non-dimensional size with coolant
LOC-03 (CZCMS Connection size code)
0500
LOC-03 (DCONMS Diameter)
80 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SKG05003195
LPR (Protruding length)
70 mm
OAL (Overall length)
171.8 mm
WT (Weight of item)
4.132 kg
