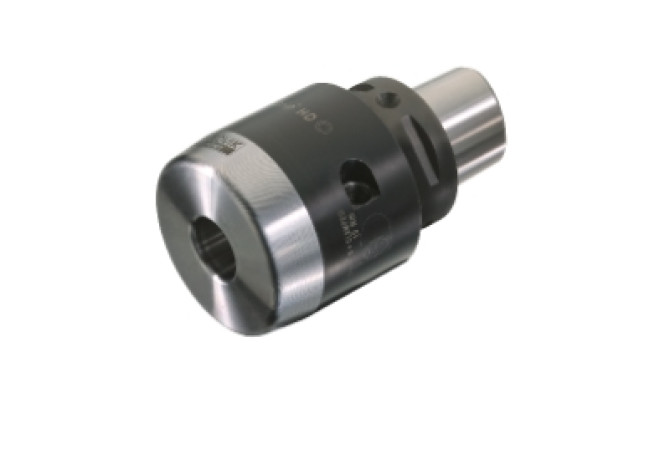

Главная Инструменты 401-01 - Converter, rotationally symmetric C8-391.CGD-20 079

C8-391.CGD-20 079

Артикул: 5730251

В наличии

0 ₽

В корзину

Описание

Характеристики

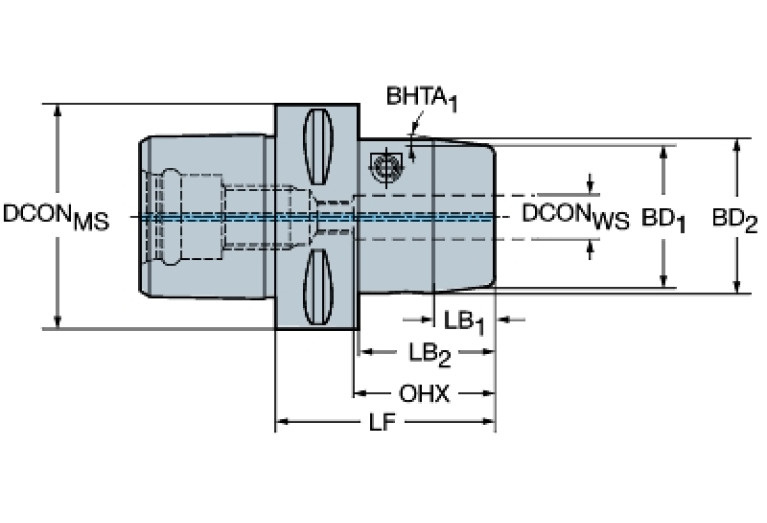

BD (Body diameter 2)

63 mm

BD (Body diameter 3)

80 mm

BD (Body diameter)

62.994 mm

BHTA (Body half taper angle 2)

0 Degree

BHTA (Body half taper angle 3)

0 Degree

BLDEV (Balancing device)

BLQ (Balance quality code)

2.5

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

SZC

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

3 - With Coolant entry, axial concentric and radial

CXSC (Coolant exit style code)

1 - With Coolant exit, axial concentric

CXSC (Coolant exit style code) / Тип подвода СОЖ

1 - With Coolant exit, axial concentric

CZCWS (Connection size code)

0200

DCONWS (Diameter)

20 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

20 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

CCS08000195

HAND (Cutting direction)

N - Neutral

Interface codes

J6 / J61

ISO

CCS01C0800$$$$

LB (Body length 1)

17 mm

LB (Length 2)

32 mm

LB (Length Body diameter 3)

30 mm

LF (Functional length)

79 mm

LOC-01 ISO

SZC02G2000****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

SZC Collet adapter SANDVIK Coromant

LOC-01 (CCUWS Connection code unit base)

1 Metric with coolant

LOC-01 (CZCWS Connection size code)

0200

LOC-01 (DCONWS Diameter)

20 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-02 ISO

SZC02R7874****

LOC-02 (DCONWS Diameter)

20 mm

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-03 ISO

CCS01C0800$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

CCS Coromant Capto System SANDVIK

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

0800

LOC-03 (DCONMS Diameter)

80 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS08000195

OAL (Overall length)

127 mm

Rotation (Rotation indicator)

1 - rotating tool

RPMX (Rotational speed maximum)

14000 1/min

WT (Weight of item)

2.793 kg
