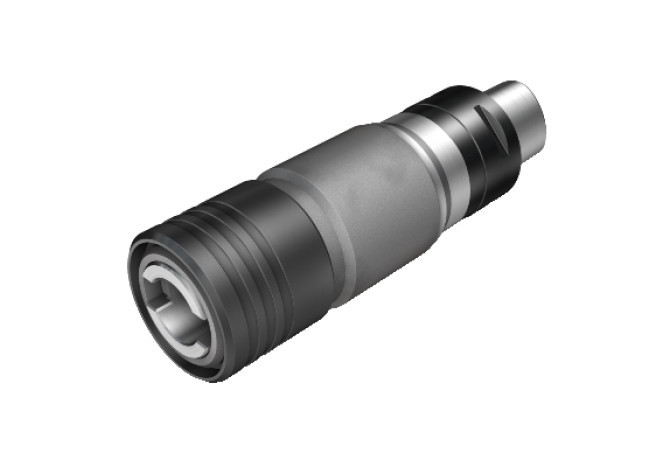

Главная Инструменты 401-01 - Converter, rotationally symmetric C8-391.60-03 160A

C8-391.60-03 160A

Артикул: 5729579

В наличии

0 ₽

В корзину

Описание

Характеристики

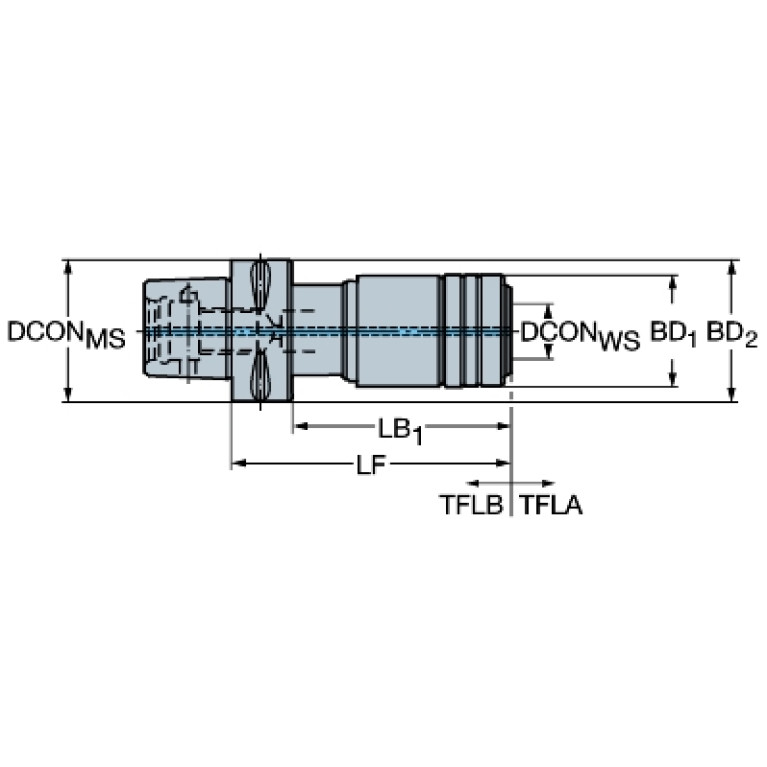

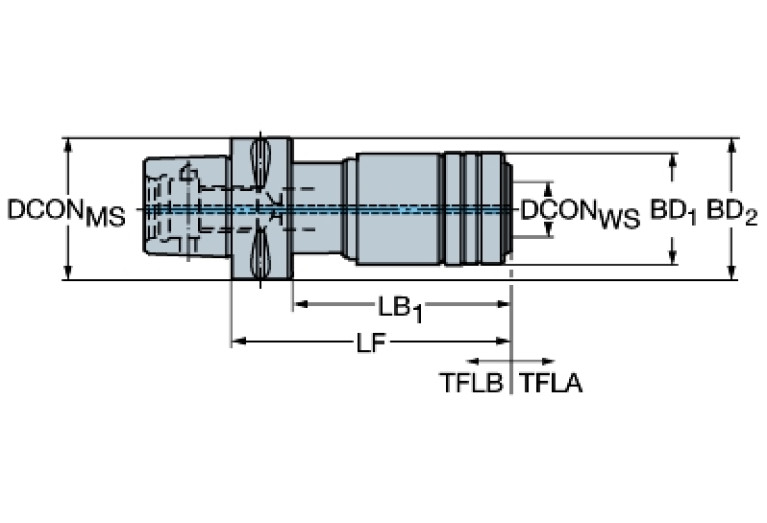

BD (Body diameter 2)

80 mm

BD (Body diameter)

78 mm

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

SWB

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

0 - Without coolant entry

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

CZCWS (Connection size code)

0480

DCONWS (Diameter)

80 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

80 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

CCS08000185

HAND (Cutting direction)

N - Neutral

Interface codes

J6 / J61

ISO

CCS01C0800$$$$

LB (Body length 1)

123 mm

LB (Length 2)

37 mm

LF (Functional length)

160 mm

LOC-01 ISO

SWB00C0480****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

SWB Quick change adapter BILZ

LOC-01 (CCUWS Connection code unit base)

8 non-dimensional size

LOC-01 (CZCWS Connection size code)

0480

LOC-01 (DCONWS Diameter)

80 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

SWB04800085

LOC-02 ISO

SWB01C0480****

LOC-02 (CCFWS Connection code form)

LOC-02 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-02 (CCTWS Connection code type)

SWB Quick change adapter BILZ

LOC-02 (CCUWS Connection code unit base)

8 non-dimensional size

LOC-02 (CZCWS Connection size code)

0480

LOC-02 (DCONWS Diameter)

80 mm

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

SWB04800185

LOC-03 ISO

CCS01C0800$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

CCS Coromant Capto System SANDVIK

LOC-03 (CCUMS Connection code unit base)

8 non-dimensional size

LOC-03 (CZCMS Connection size code)

0800

LOC-03 (DCONMS Diameter)

80 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS08000185

LPR (Protruding length)

160 mm

OAL (Overall length)

208 mm

RPMX (Rotational speed maximum)

8000 1/min

WT (Weight of item)

4.701 kg
