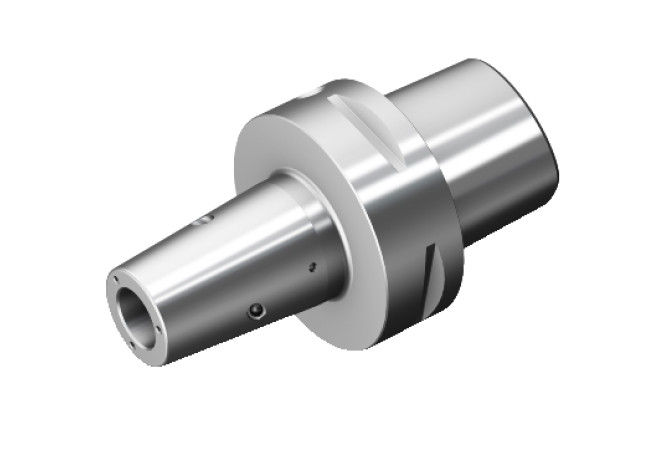

Главная Инструменты 401-01 - Converter, rotationally symmetric C8-391.19Y-16 095

C8-391.19Y-16 095

Артикул: 6153825

В наличии

0 ₽

В корзину

Описание

Характеристики

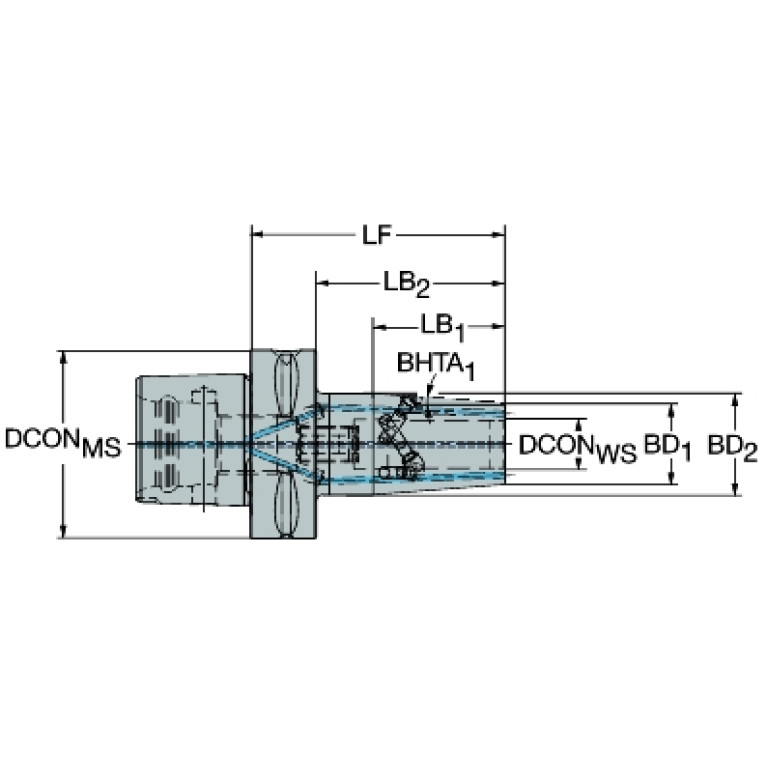

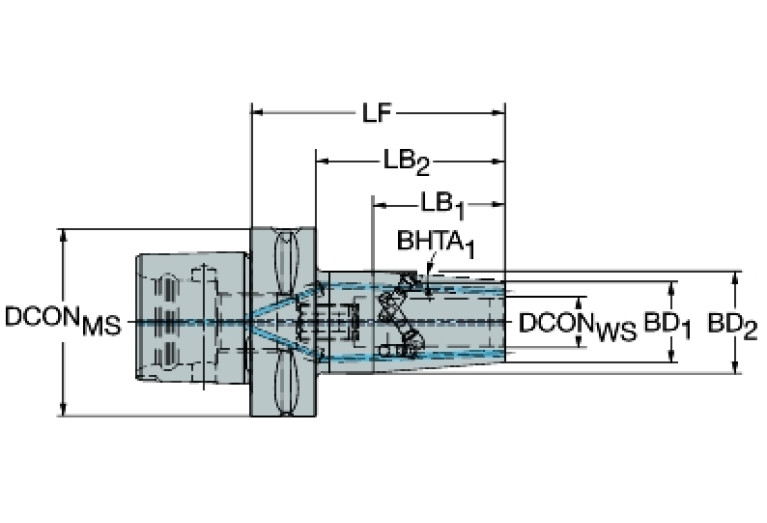

BD (Body diameter 2)

34 mm

BD (Body diameter 3)

80 mm

BD (Body diameter)

33.894 mm

BHTA (Body half taper angle 2)

0 Degree

BHTA (Body half taper angle 3)

0 Degree

BLDEV (Balancing device)

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

ZYL

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

3 - With Coolant entry, axial concentric and radial

CXSC (Coolant exit style code)

4 - With Coolant exit, axial on hole circle

CXSC (Coolant exit style code) / Тип подвода СОЖ

4 - With Coolant exit, axial on hole circle

CZCWS (Connection size code)

0160

DCONWS (Diameter)

16 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

16 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

CCS08000195

HAND (Cutting direction)

N - Neutral

Interface codes

J6 / J61

ISO

CCS01C0800$$$$

LB (Body length 1)

43.8 mm

LB (Length 2)

21.2 mm

LB (Length Body diameter 3)

30 mm

LF (Functional length)

95 mm

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

ZYL cylindrical shank

LOC-01 (CCUWS Connection code unit base)

1 Metric with coolant

LOC-01 (CZCWS Connection size code)

0160

LOC-01 (DCONWS Diameter)

16 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL01600315

LOC-02 ISO

ZYL03R6299****

LOC-02 (DCONWS Diameter)

16 mm

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-03 ISO

CCS01C0800$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

CCS Coromant Capto System SANDVIK

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

0800

LOC-03 (DCONMS Diameter)

80 mm

LOC-03 (TCDCONCDMS Connection tolerance class coded)

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS08000195

LSCN (Clamping length minimum)

39 mm

OAL (Overall length)

143 mm

Rotation (Rotation indicator)

1 - rotating tool

TCDCONMS (ISO-tolerance class shank diameter)

WT (Weight of item)

2.098 kg
