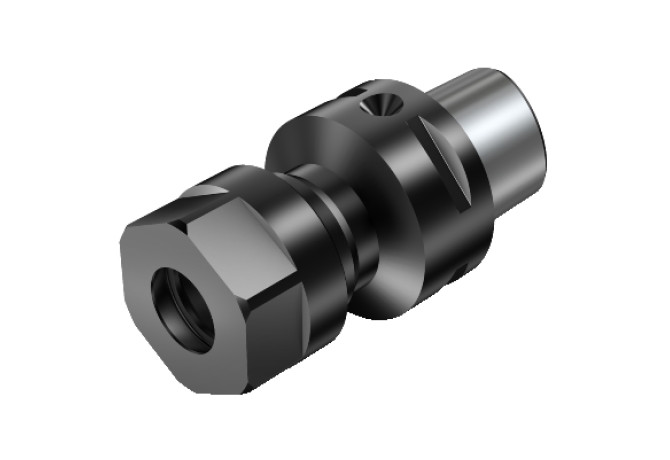

Главная Инструменты 401-01 - Converter, rotationally symmetric C8-391.14-25 070

C8-391.14-25 070

Артикул: 5729380

В наличии

0 ₽

В корзину

Описание

Характеристики

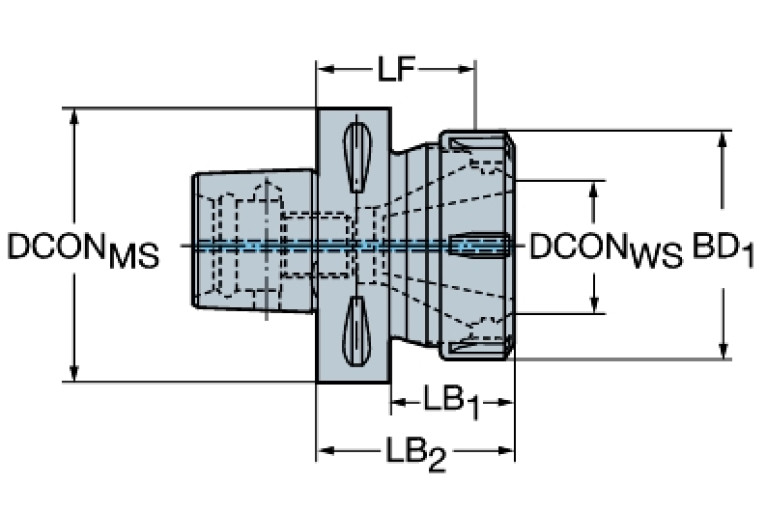

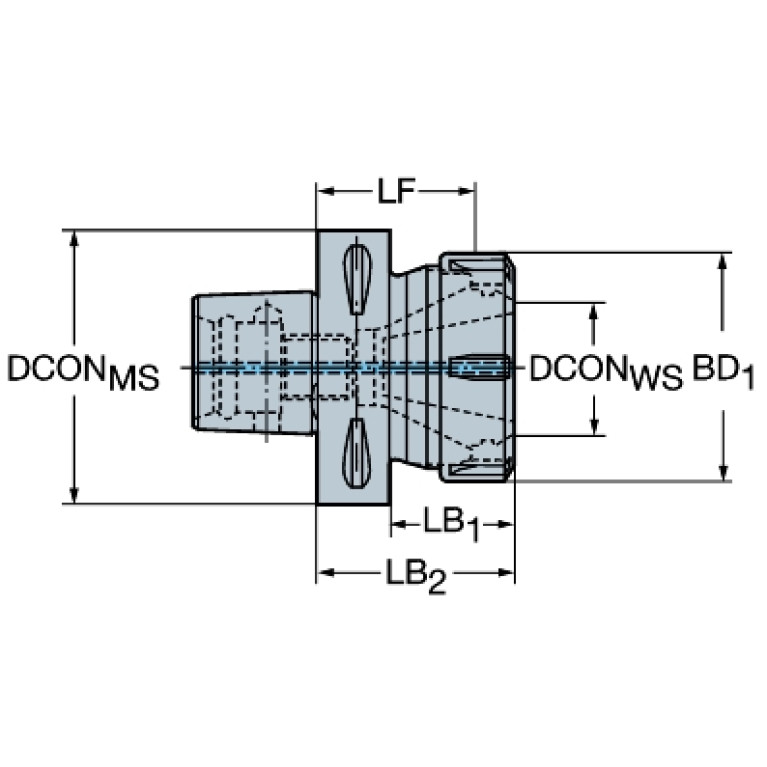

BD (Body diameter 2)

80 mm

BLDEV (Balancing device)

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

SZD

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

3 - With Coolant entry, axial concentric and radial

CXSC (Coolant exit style code)

1 - With Coolant exit, axial concentric

CXSC (Coolant exit style code) / Тип подвода СОЖ

1 - With Coolant exit, axial concentric

CZCWS (Connection size code)

0250

DCONWS (Diameter)

80 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

80 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

CCS08000195

DLN (Diameter lock nut)

42 mm

HAND (Cutting direction)

N - Neutral

Interface codes

J6 / J61

ISO

CCS01C0800$$$$

LB (Body length 1)

2.227 mm

LB (Length 2)

37.6 mm

LF (Functional length)

58 mm

LOC-01 ISO

SZD02C0250****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

SZD Collet adapter DIN / ISO

LOC-01 (CCUWS Connection code unit base)

9 non-dimensional size with coolant

LOC-01 (CZCWS Connection size code)

0250

LOC-01 (DCONWS Diameter)

80 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

SZD02500295

LOC-03 ISO

CCS01C0800$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

CCS Coromant Capto System SANDVIK

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

0800

LOC-03 (DCONMS Diameter)

80 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS08000195

LPR (Protruding length)

70 mm

OAL (Overall length)

118 mm

RPMX (Rotational speed maximum)

14000 1/min

WT (Weight of item)

2.043 kg
