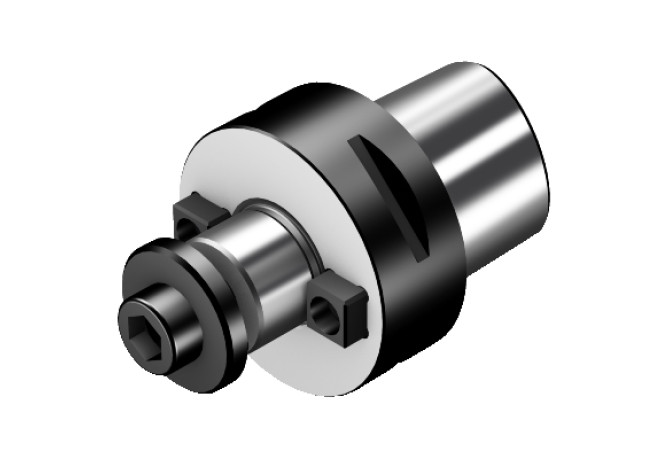

Главная Инструменты 401-01 - Converter, rotationally symmetric C8-391.05-16 050

C8-391.05-16 050

Артикул: 5729144

В наличии

0 ₽

В корзину

Описание

Характеристики

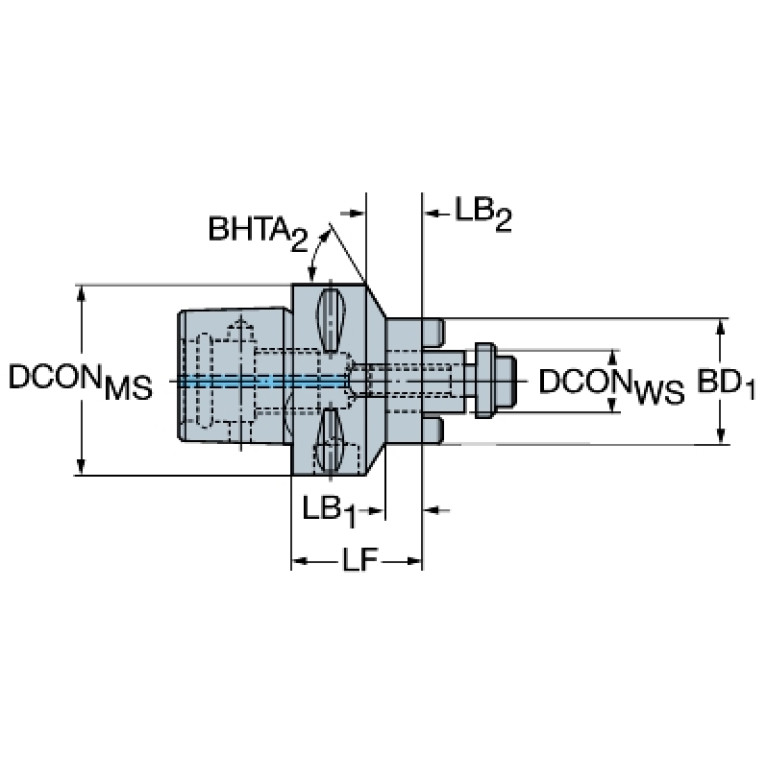

BD (Body diameter 2)

80.059 mm

BD (Body diameter 3)

80 mm

BD (Body diameter)

32 mm

BHTA (Body half taper angle 2)

67 Degree

BHTA (Body half taper angle 3)

0 Degree

BLDEV (Balancing device)

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

FDA

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

3 - With Coolant entry, axial concentric and radial

CXSC (Coolant exit style code)

1 - With Coolant exit, axial concentric

CXSC (Coolant exit style code) / Тип подвода СОЖ

1 - With Coolant exit, axial concentric

CZCWS (Connection size code)

0160

DCONWS (Diameter)

16 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

16 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

CCS08000195

HAND (Cutting direction)

N - Neutral

Interface codes

J6 / J61

ISO

CCS01C0800$$$$

LB (Body length 1)

10 mm

LB (Length 2)

10.2 mm

LB (Length Body diameter 3)

29.8 mm

LF (Functional length)

50 mm

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

0 Hole in machine direction or shaft in workpiece direction

LOC-01 (CCTWS Connection code type)

FDA Milling arbor mounting

LOC-01 (CCUWS Connection code unit base)

1 Metric with coolant

LOC-01 (CZCWS Connection size code)

0160

LOC-01 (DCONWS Diameter)

16 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

FDA01601210

LOC-02 ISO

FDA22G1600****

LOC-02 (DCONWS Diameter)

16 mm

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-03 ISO

CCS01C0800$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

CCS Coromant Capto System SANDVIK

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

0800

LOC-03 (DCONMS Diameter)

80 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS08000195

OAL (Overall length)

98 mm

Rotation (Rotation indicator)

1 - rotating tool

WT (Weight of item)

2.069 kg
