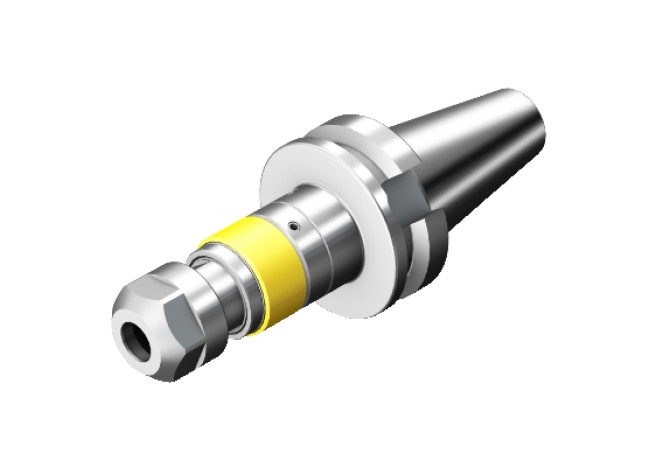

Главная Инструменты 401-01 - Converter, rotationally symmetric 970-V40-20-102

970-V40-20-102

Артикул: 6413065

В наличии

0 ₽

В корзину

Описание

Характеристики

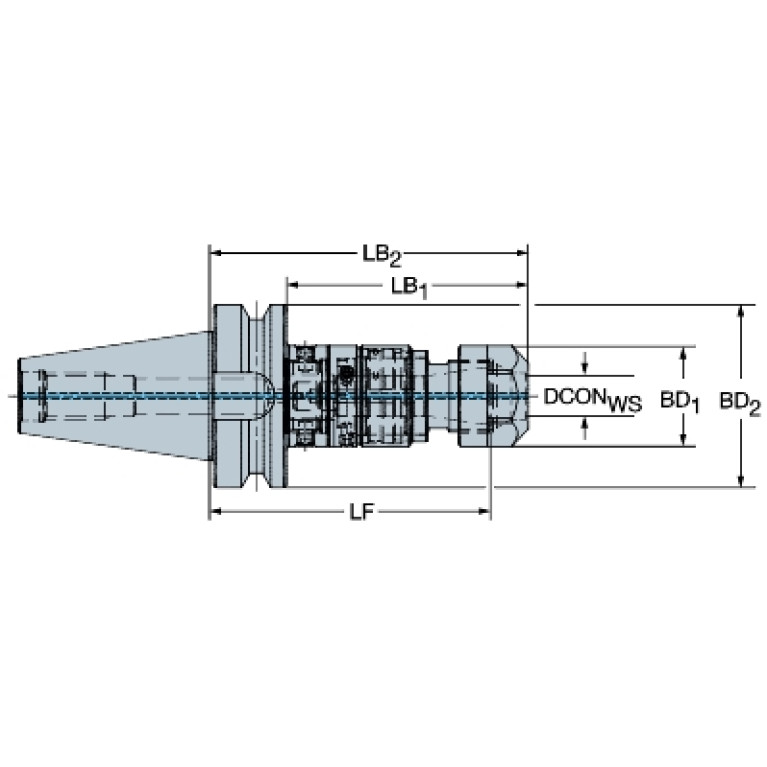

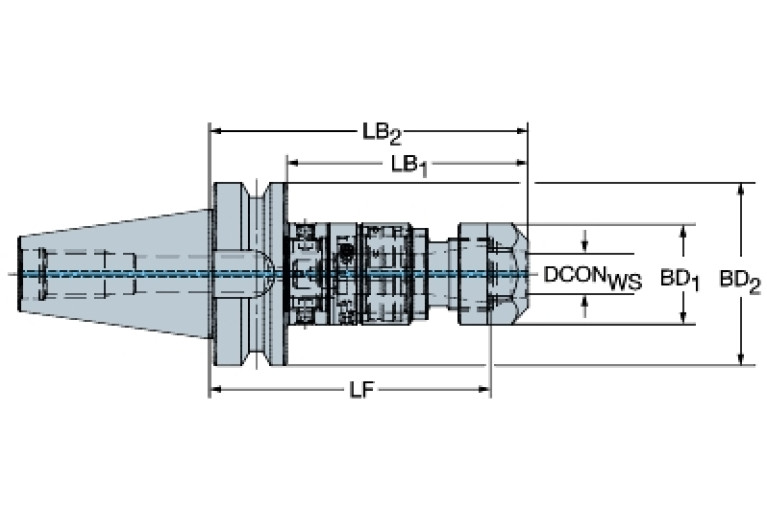

BD (Body diameter 2)

35 mm

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

SZD

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

1 - With Coolant exit, axial concentric

CXSC (Coolant exit style code) / Тип подвода СОЖ

1 - With Coolant exit, axial concentric

CZCWS (Connection size code)

0200

DCONWS (Diameter)

20.8 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

20.8 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state valid from

12/1/2023

DF (Flange diameter)

63.5 mm

DIN

SKG04003195

DLN (Diameter lock nut)

33.7 mm

HAND (Cutting direction)

N - Neutral

Interface codes

J6 / J61

ISO

SKG31C0400$$$$

LB (Body length 1)

5.731 mm

LB (Length 2)

42.9 mm

LF (Functional length)

89.2 mm

LOC-01 ISO

SZD02C0200****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

SZD Collet adapter DIN / ISO

LOC-01 (CCUWS Connection code unit base)

9 non-dimensional size with coolant

LOC-01 (CZCWS Connection size code)

0200

LOC-01 (DCONWS Diameter)

20.8 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

SZD02000295

LOC-03 ISO

SKG31C0400$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

SKG steep taper shank

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

0400

LOC-03 (DCONMS Diameter)

20.8 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG04003195

LPR (Protruding length)

97.2 mm

OAL (Overall length)

165.45 mm

RPMX (Rotational speed maximum)

8000 1/min

WT (Weight of item)

1.165 kg
