Главная Инструменты 401-01 - Converter, rotationally symmetric 970-C4-11-080

970-C4-11-080

Артикул: 6412705

В наличии

0 ₽

В корзину

Описание

Характеристики

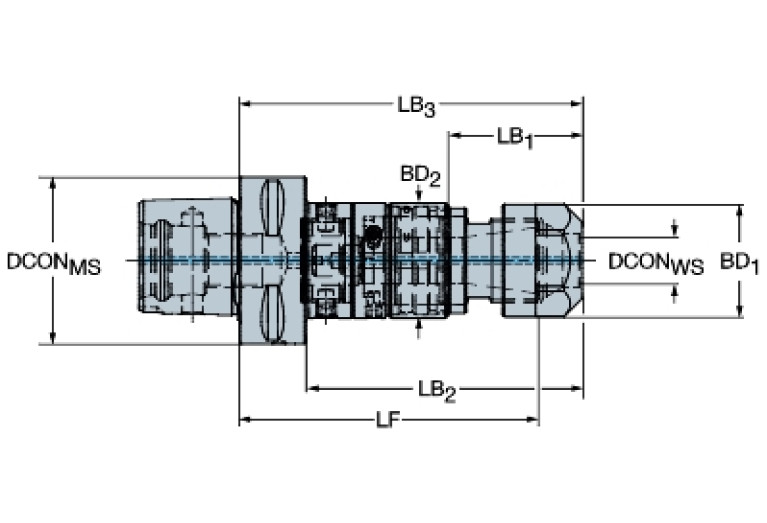

BD (Body diameter 2)

23.5 mm

BD (Body diameter 3)

40 mm

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

SZD

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

3 - With Coolant entry, axial concentric and radial

CXSC (Coolant exit style code)

1 - With Coolant exit, axial concentric

CXSC (Coolant exit style code) / Тип подвода СОЖ

1 - With Coolant exit, axial concentric

CZCWS (Connection size code)

0110

DCONWS (Diameter)

40 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

40 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

CCS04000195

DLN (Diameter lock nut)

18.7 mm

HAND (Cutting direction)

N - Neutral

Interface codes

J6 / J61

ISO

CCS01C0400$$$$

LB (Body length 1)

2.608 mm

LB (Length 2)

35.9 mm

LB (Length Body diameter 3)

20 mm

LF (Functional length)

76.2 mm

LOC-01 ISO

SZD02C0110****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

SZD Collet adapter DIN / ISO

LOC-01 (CCUWS Connection code unit base)

9 non-dimensional size with coolant

LOC-01 (CZCWS Connection size code)

0110

LOC-01 (DCONWS Diameter)

40 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

SZD01100295

LOC-03 ISO

CCS01C0400$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

CCS Coromant Capto System SANDVIK

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

0400

LOC-03 (DCONMS Diameter)

40 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS04000195

LPR (Protruding length)

80 mm

OAL (Overall length)

104 mm

RPMX (Rotational speed maximum)

8000 1/min

WT (Weight of item)

0.37 kg
