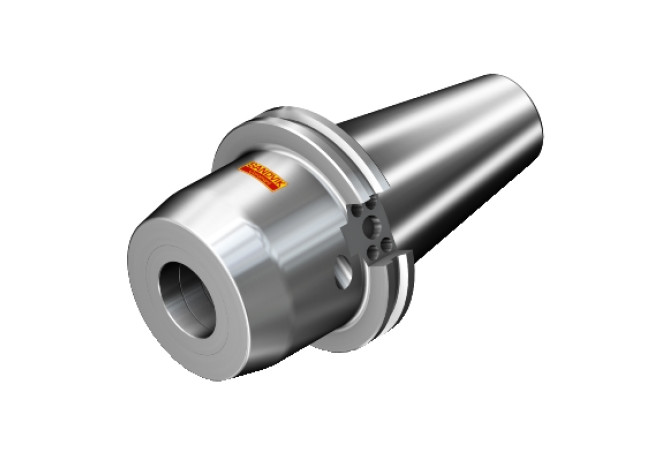

Главная Инструменты 401-01 - Converter, rotationally symmetric 930-V50-HD-A31-077

930-V50-HD-A31-077

Артикул: 7105362

В наличии

0 ₽

В корзину

Описание

Характеристики

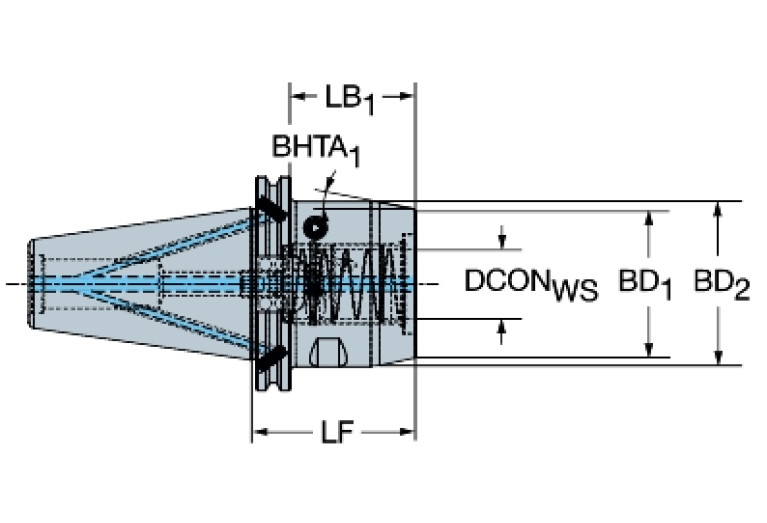

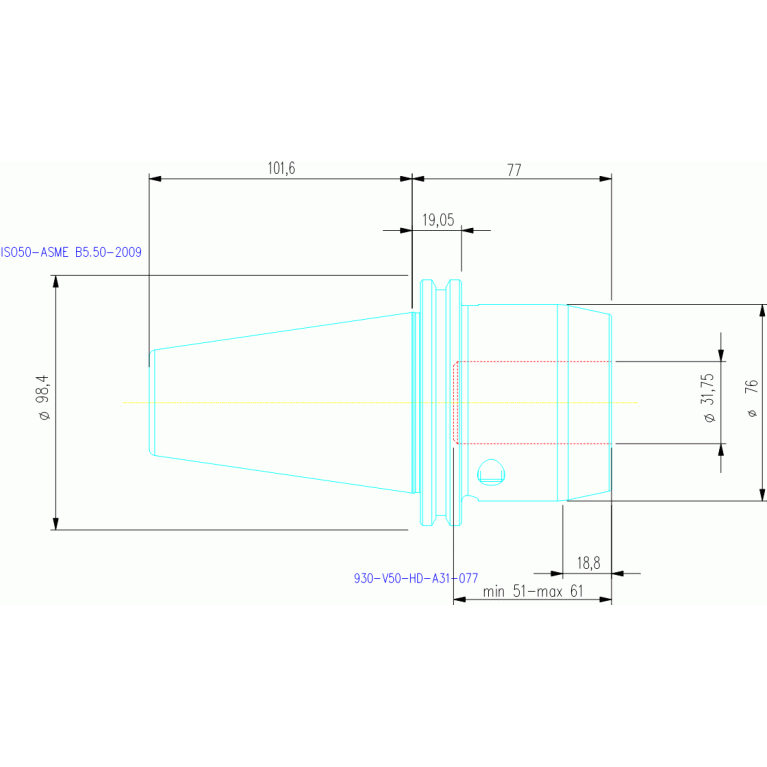

BD (Body diameter 2)

76 mm

BD (Body diameter)

75.992 mm

BLDEV (Balancing device)

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

SZC

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

7 - Coolant entry, decentral and axially concentric

CXSC (Coolant exit style code)

1 - With Coolant exit, axial concentric

CXSC (Coolant exit style code) / Тип подвода СОЖ

1 - With Coolant exit, axial concentric

CZCWS (Connection size code)

1250

DCINTF (Interference cutting diameter)

68 mm

DCONWS (Diameter)

31.75 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

31.75 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DF (Flange diameter)

98.42 mm

DIN

SKG05003795

HAND (Cutting direction)

N - Neutral

Interface codes

J6 / J61

ISO

SKG37C0500$$$$

LB (Body length 1)

18.8 mm

LB (Length 2)

39.1 mm

LF (Functional length)

77 mm

LOC-01 ISO

SZC02S1250****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

SZC Collet adapter SANDVIK Coromant

LOC-01 (CCUWS Connection code unit base)

3 Inch with coolant

LOC-01 (CZCWS Connection size code)

1250

LOC-01 (DCONWS Diameter)

31.75 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

SZC12500235

LOC-02 ISO

SZC02G3175****

LOC-02 (CCFWS Connection code form)

LOC-02 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-02 (CCTWS Connection code type)

SZC Collet adapter SANDVIK Coromant

LOC-02 (CCUWS Connection code unit base)

3 Inch with coolant

LOC-02 (CZCWS Connection size code)

1250

LOC-02 (DCONWS Diameter)

31.75 mm

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

SZC03170215

LOC-03 ISO

SKG37C0500$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

SKG steep taper shank

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

0500

LOC-03 (DCONMS Diameter)

31.75 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG05003795

LPR (Protruding length)

77 mm

LS (Shank length)

61 mm

LSCN (Clamping length minimum)

51 mm

LSCX (Clamping length maximum)

61 mm

OAL (Overall length)

178.8 mm

RPMX (Rotational speed maximum)

12000 1/min

TA (Taper angle)

12 Degree

WT (Weight of item)

4.128 kg
