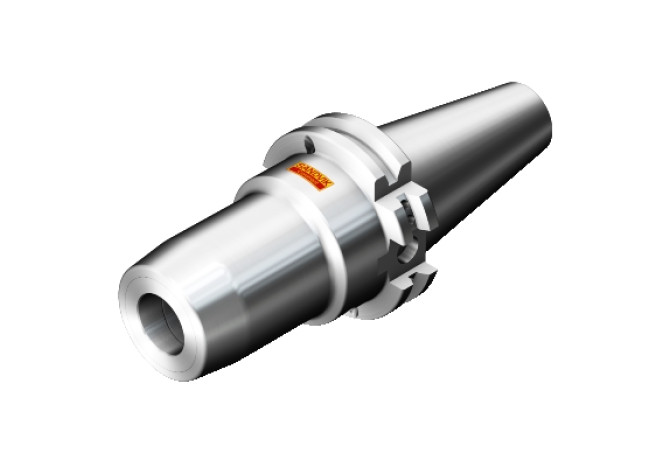

Главная Инструменты 401-01 - Converter, rotationally symmetric 930-I40-S-08-068

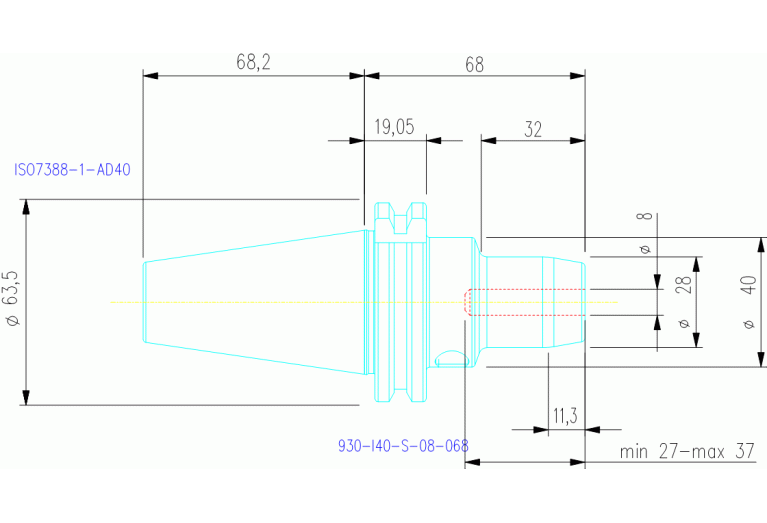

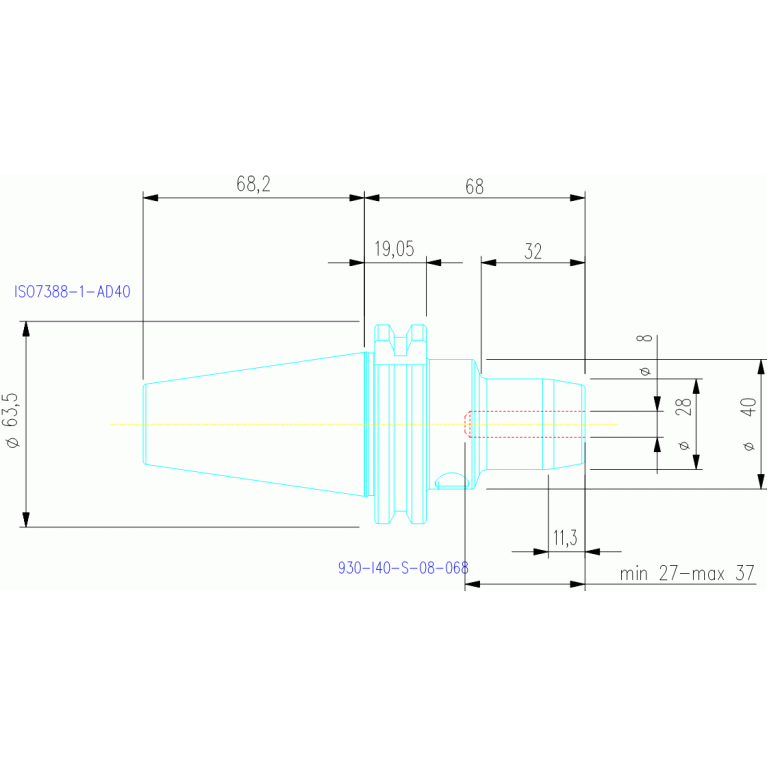

930-I40-S-08-068

Артикул: 7790817

В наличии

0 ₽

В корзину

Описание

Характеристики

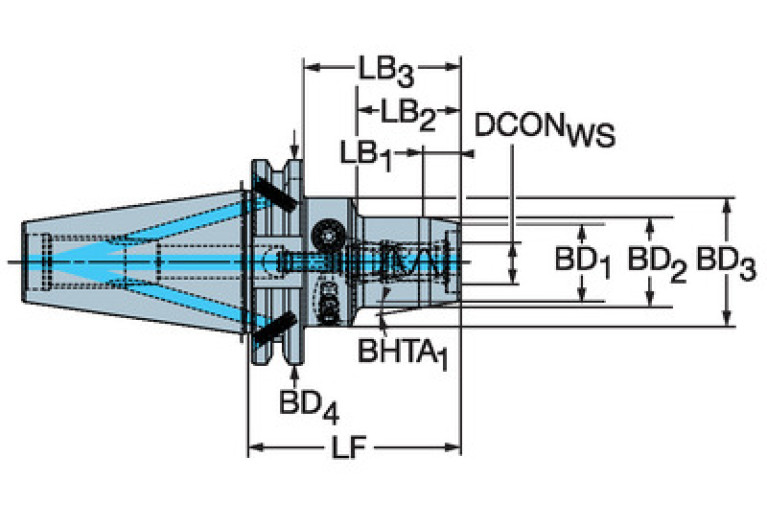

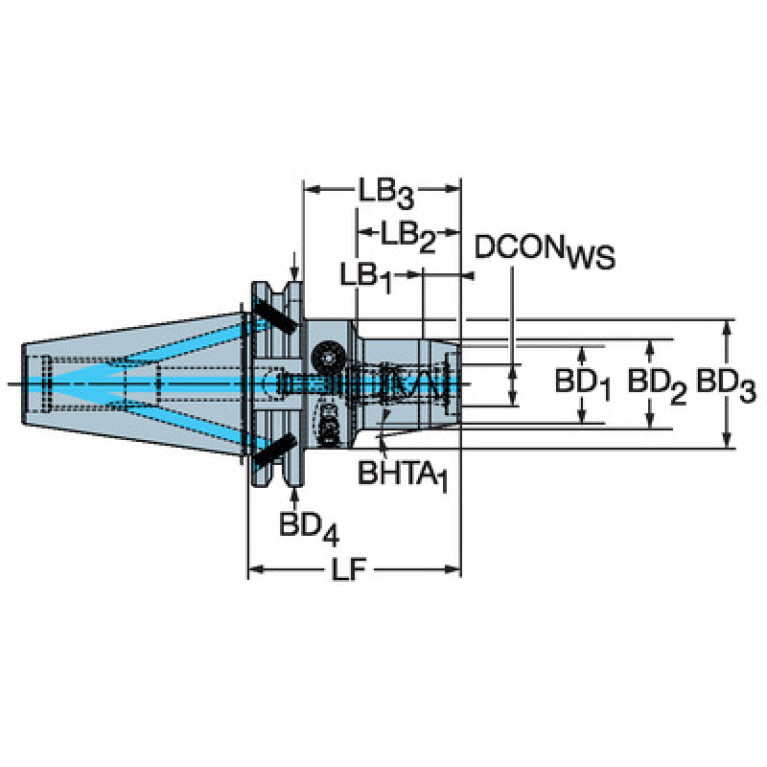

BD (Body diameter 2)

28 mm

BD (Body diameter 3)

40 mm

BD (Body diameter)

27.985 mm

BLDEV (Balancing device)

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

SZC

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

7 - Coolant entry, decentral and axially concentric

CXSC (Coolant exit style code)

1 - With Coolant exit, axial concentric

CXSC (Coolant exit style code) / Тип подвода СОЖ

1 - With Coolant exit, axial concentric

CZCWS (Connection size code)

0080

DCINTF (Interference cutting diameter)

24 mm

DCONWS (Diameter)

8 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

8 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state valid from

12/1/2023

DF (Flange diameter)

63.55 mm

DIN

SKG04001795

HAND (Cutting direction)

N - Neutral

Interface codes

J6 / J61

ISO

SKG17C0400$$$$

LB (Body length 1)

11.3 mm

LB (Length 2)

18.9 mm

LB (Length Body diameter 3)

18.7 mm

LF (Functional length)

68 mm

LOC-01 ISO

SZC02F8000****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

SZC Collet adapter SANDVIK Coromant

LOC-01 (CCUWS Connection code unit base)

1 Metric with coolant

LOC-01 (CZCWS Connection size code)

0080

LOC-01 (DCONWS Diameter)

8 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

SZC00800215

LOC-02 ISO

SZC02R3149****

LOC-02 (CCFWS Connection code form)

LOC-02 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-02 (CCTWS Connection code type)

SZC Collet adapter SANDVIK Coromant

LOC-02 (CCUWS Connection code unit base)

1 Metric with coolant

LOC-02 (CZCWS Connection size code)

0080

LOC-02 (DCONWS Diameter)

8 mm

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

SZC03140235

LOC-03 ISO

SKG17C0400$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

SKG steep taper shank

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

0400

LOC-03 (DCONMS Diameter)

8 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG04001795

LPR (Protruding length)

68 mm

LS (Shank length)

37 mm

LSCN (Clamping length minimum)

27 mm

LSCX (Clamping length maximum)

37 mm

OAL (Overall length)

136.3 mm

RPMX (Rotational speed maximum)

18000 1/min

TA (Taper angle)

10 Degree

WT (Weight of item)

1.057 kg
