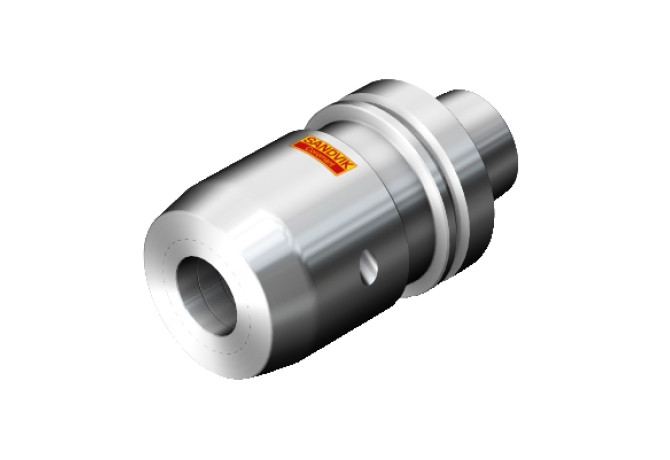

Главная Инструменты 401-01 - Converter, rotationally symmetric 930-HF08-HD-32-112A

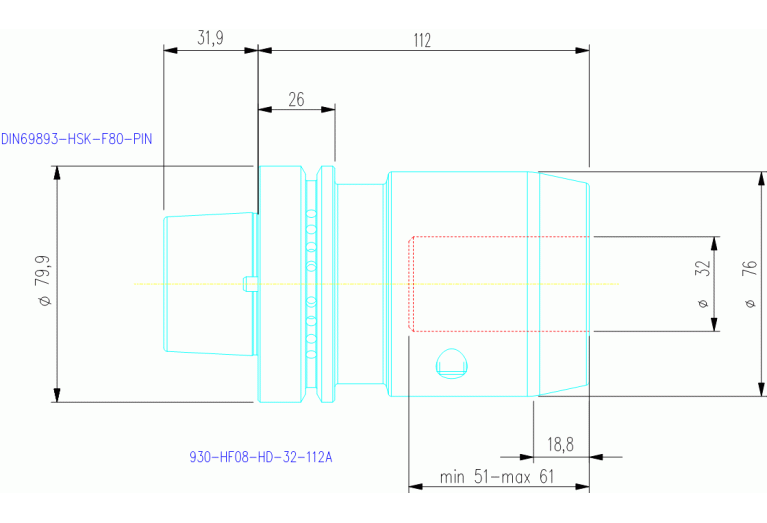

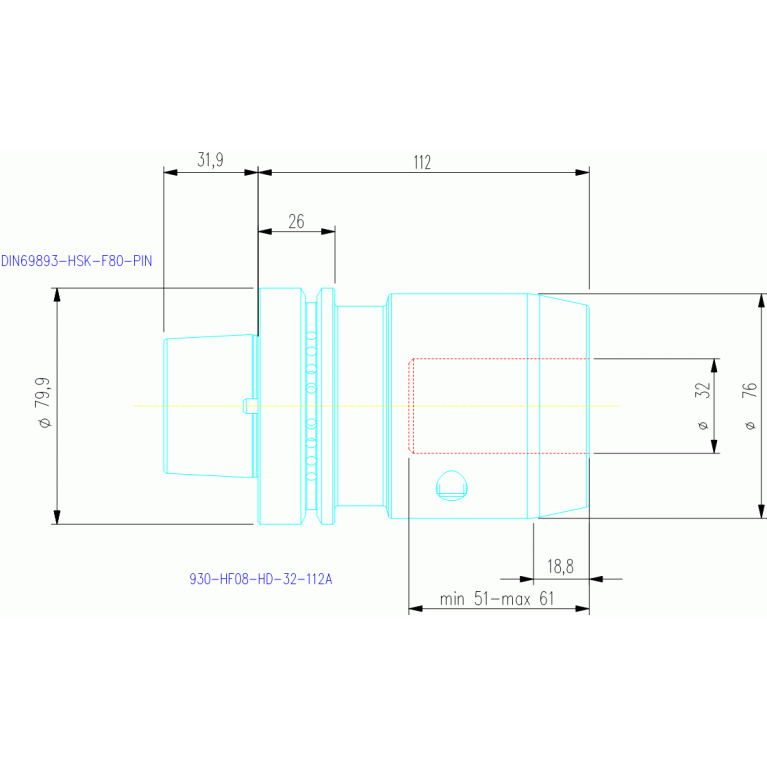

930-HF08-HD-32-112A

930-HF08-HD-32-112A 930-HF08-HD-32-112A 930-HF08-HD-32-112A 930-HF08-HD-32-112A

930-HF08-HD-32-112A

SV - Sandvik-Coromant
Артикул: 8107485
В наличии
0 ₽
В корзину
Описание
Характеристики

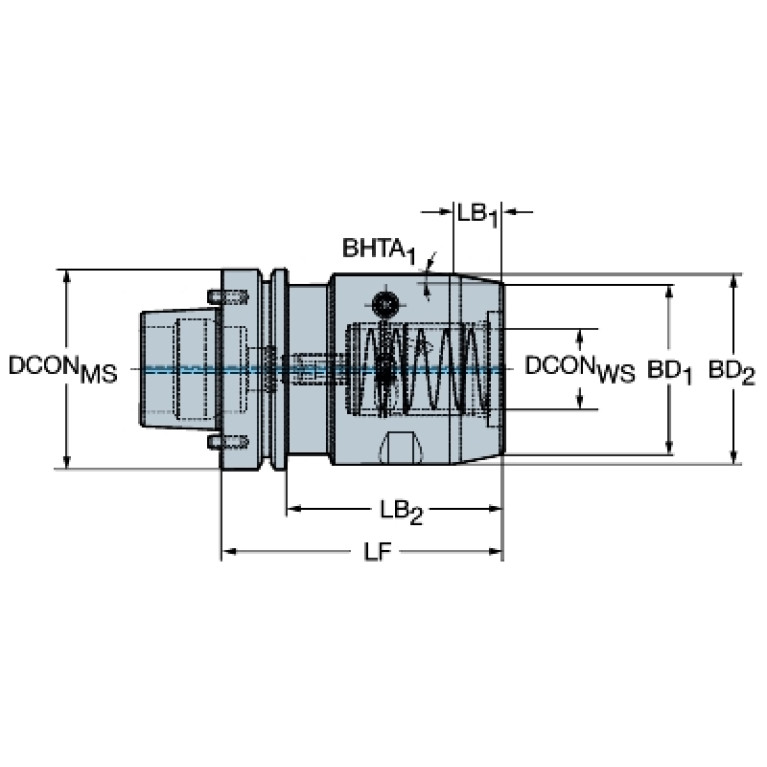

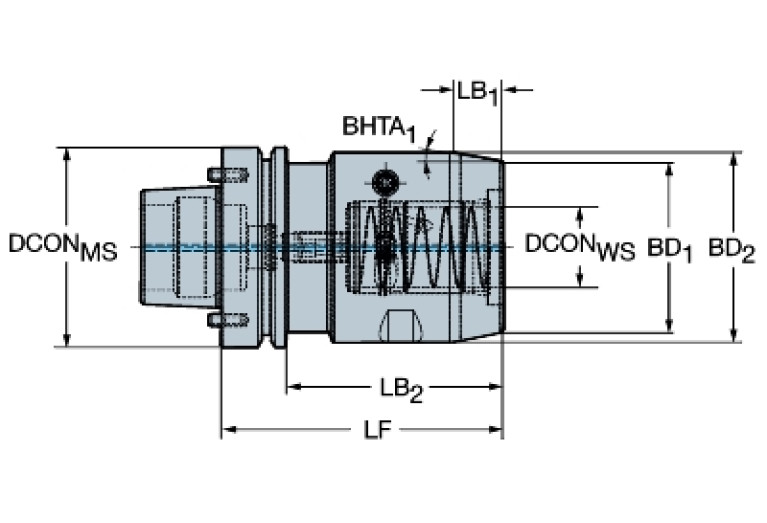

BD (Body diameter 2)
76 mm
BD (Body diameter 3)
80 mm
BD (Body diameter)
75.992 mm
BLDEV (Balancing device)
1
CCFWS (Connection code form)
02
CCSWS (Connection code style)
5
CCTWS (Connection code type)
SZC
CCUWS (Connection code unit base)
1
CNSC (Coolant entry style code)
1 - With Coolant entry, axial concentric
CXSC (Coolant exit style code)
1 - With Coolant exit, axial concentric
CXSC (Coolant exit style code) / Тип подвода СОЖ
1 - With Coolant exit, axial concentric
CZCWS (Connection size code)
0320
DBHC (Diameter bolt hole circle)
58 mm
DCINTF (Interference cutting diameter)
68 mm
DCONWS (Diameter)
32 mm
DCONWS (Diameter) / Диаметр соединения со стороны заготовки
32 mm
DCP (Data chip provision)
1 - With data chip
Delivery state valid from
12/1/2023
DIN
HSK080P0495
HAND (Cutting direction)
N - Neutral
Interface codes
J6 / J61
ISO
HSK04C080P$$$$
LB (Body length 1)
18.8 mm
LB (Length 2)
67.2 mm
LB (Length Body diameter 3)
26 mm
LF (Functional length)
112 mm
LOC-01 ISO
SZC02G3200****
LOC-01 (CCFWS Connection code form)
02
LOC-01 (CCSWS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-01 (CCTWS Connection code type)
SZC Collet adapter SANDVIK Coromant
LOC-01 (CCUWS Connection code unit base)
1 Metric with coolant
LOC-01 (CZCWS Connection size code)
0320
LOC-01 (DCONWS Diameter)
32 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SZC03200215
LOC-02 ISO
SZC02S1259****
LOC-02 (CCFWS Connection code form)
02
LOC-02 (CCSWS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-02 (CCTWS Connection code type)
SZC Collet adapter SANDVIK Coromant
LOC-02 (CCUWS Connection code unit base)
1 Metric with coolant
LOC-02 (CZCWS Connection size code)
0320
LOC-02 (DCONWS Diameter)
32 mm
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
SZC12590235
LOC-03 ISO
HSK04C080P$$$$
LOC-03 (CCFMS Connection code form)
04
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
HSK Hollow taper shank
LOC-03 (CCUMS Connection code unit base)
9 non-dimensional size with coolant
LOC-03 (CZCMS Connection size code)
080P
LOC-03 (DCONMS Diameter)
80 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK080P0495
LPR (Protruding length)
112 mm
LS (Shank length)
61 mm
LSCN (Clamping length minimum)
51 mm
LSCX (Clamping length maximum)
61 mm
OAL (Overall length)
144 mm
RPMX (Rotational speed maximum)
24000 1/min
TA (Taper angle)
12 Degree
WT (Weight of item)
3.415 kg
