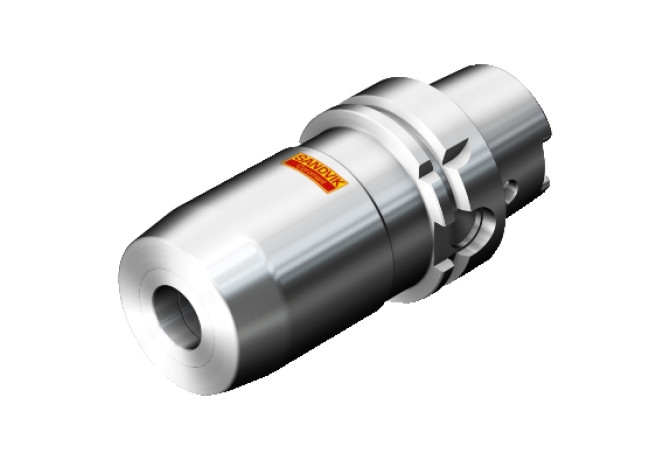

930-HA10-HD-A31-110A
930-HA10-HD-A31-110A
Артикул:
8107477
В наличии
0 ₽
Характеристики

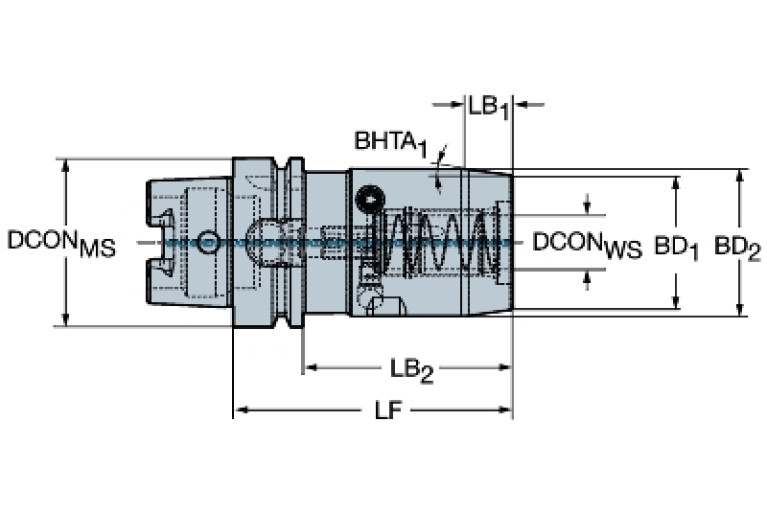

BD (Body diameter 2)
76 mm
BD (Body diameter 3)
99.9 mm
BD (Body diameter)
75.992 mm
BLDEV (Balancing device)
1
CCFWS (Connection code form)
02
CCSWS (Connection code style)
5
CCTWS (Connection code type)
SZC
CCUWS (Connection code unit base)
3
CNSC (Coolant entry style code)
1 - With Coolant entry, axial concentric
CXSC (Coolant exit style code)
1 - With Coolant exit, axial concentric
CXSC (Coolant exit style code) / Тип подвода СОЖ
1 - With Coolant exit, axial concentric
CZCWS (Connection size code)
1250
DCINTF (Interference cutting diameter)
68 mm
DCONWS (Diameter)
100 mm
DCONWS (Diameter) / Диаметр соединения со стороны заготовки
100 mm
DCP (Data chip provision)
1 - With data chip
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
HSK10000195
HAND (Cutting direction)
N - Neutral
Interface codes
J6 / J61
ISO
HSK01C1000$$$$
LB (Body length 1)
18.8 mm
LB (Length 2)
62.2 mm
LB (Length Body diameter 3)
29 mm
LF (Functional length)
110 mm
LOC-01 ISO
SZC02S1250****
LOC-01 (CCFWS Connection code form)
02
LOC-01 (CCSWS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-01 (CCTWS Connection code type)
SZC Collet adapter SANDVIK Coromant
LOC-01 (CCUWS Connection code unit base)
3 Inch with coolant
LOC-01 (CZCWS Connection size code)
1250
LOC-01 (DCONWS Diameter)
100 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SZC12500235
LOC-02 ISO
SZC02G3175****
LOC-02 (CCFWS Connection code form)
02
LOC-02 (CCSWS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-02 (CCTWS Connection code type)
SZC Collet adapter SANDVIK Coromant
LOC-02 (CCUWS Connection code unit base)
3 Inch with coolant
LOC-02 (CZCWS Connection size code)
1250
LOC-02 (DCONWS Diameter)
100 mm
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
SZC03170215
LOC-03 ISO
HSK01C1000$$$$
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
HSK Hollow taper shank
LOC-03 (CCUMS Connection code unit base)
9 non-dimensional size with coolant
LOC-03 (CZCMS Connection size code)
1000
LOC-03 (DCONMS Diameter)
100 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK10000195
LPR (Protruding length)
110 mm
LS (Shank length)
61 mm
LSCN (Clamping length minimum)
51 mm
LSCX (Clamping length maximum)
61 mm
OAL (Overall length)
160 mm
RPMX (Rotational speed maximum)
10000 1/min
TA (Taper angle)
12 Degree
WT (Weight of item)
4.329 kg
