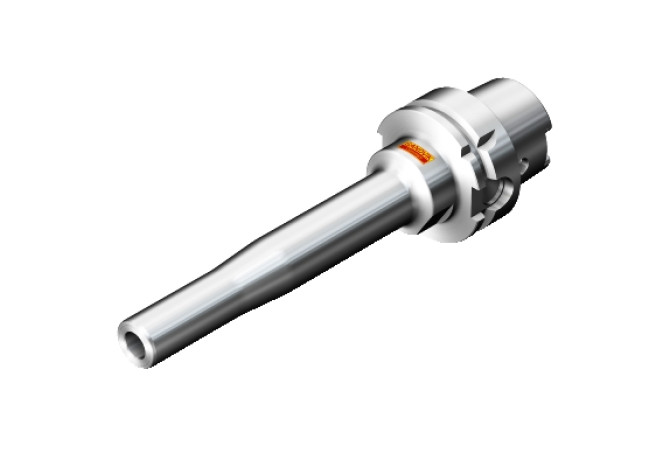

Главная Инструменты 401-01 - Converter, rotationally symmetric 930-HA06-P-20-163A

930-HA06-P-20-163A

Артикул: 8107464

В наличии

0 ₽

В корзину

Описание

Характеристики

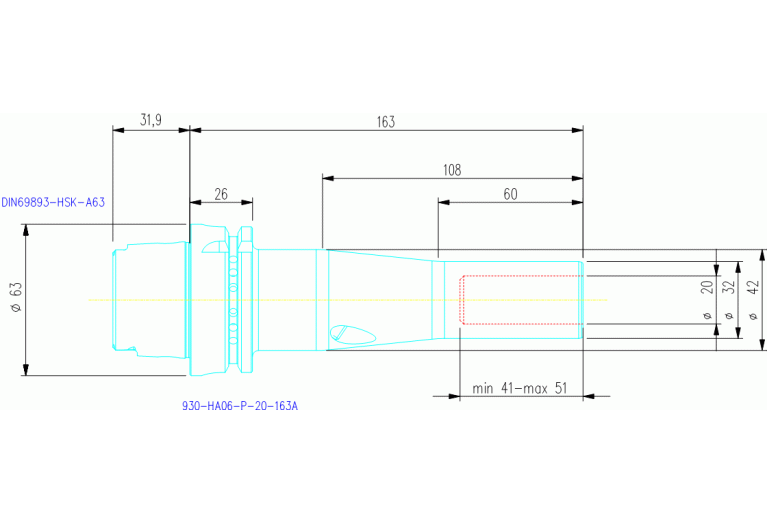

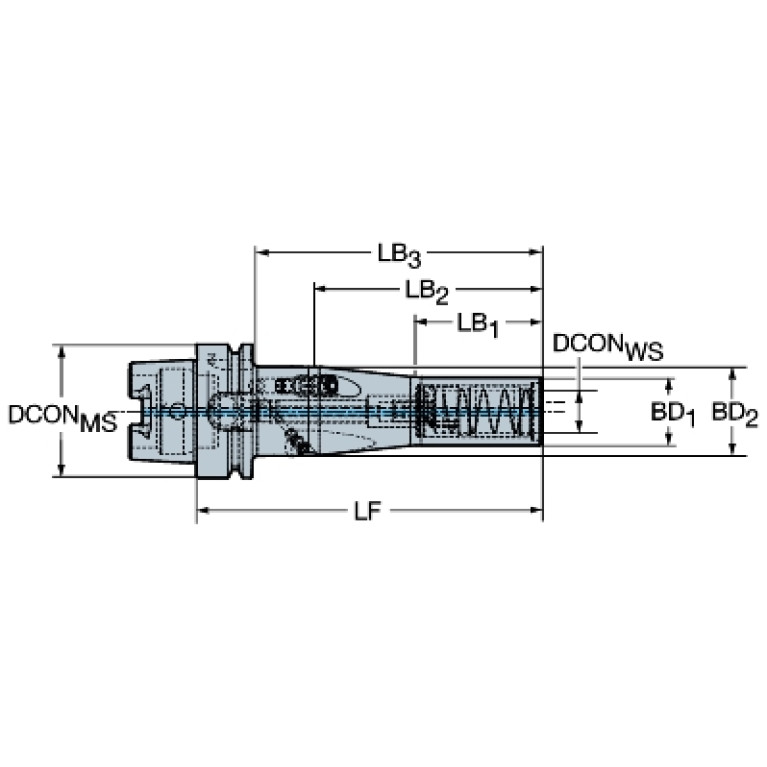

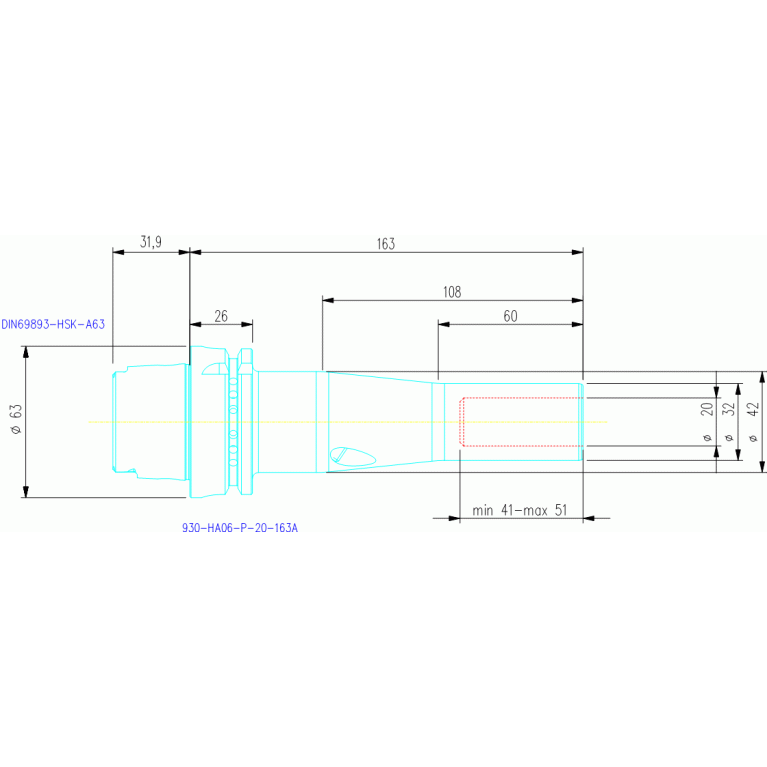

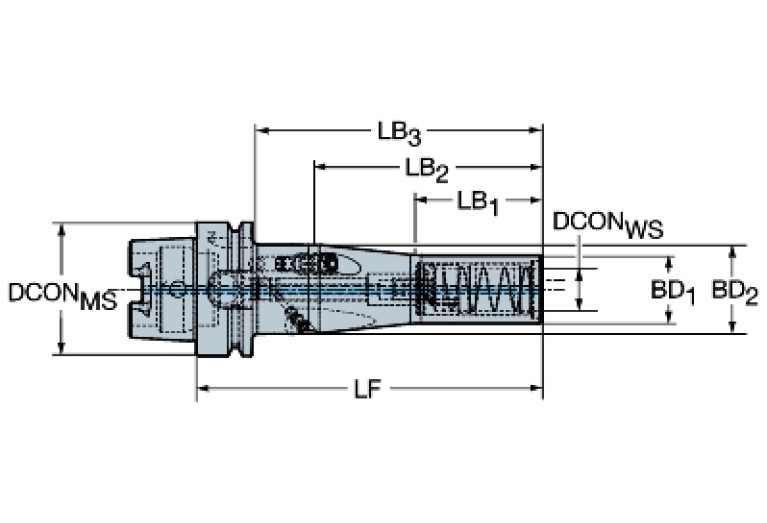

BD (Body diameter 2)

42.09 mm

BD (Body diameter 3)

42 mm

BD (Body diameter 4)

63 mm

BD (Body diameter)

32 mm

BHTA (Body half taper angle 2)

6 Degree

BLDEV (Balancing device)

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

SZC

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

1 - With Coolant exit, axial concentric

CXSC (Coolant exit style code) / Тип подвода СОЖ

1 - With Coolant exit, axial concentric

CZCWS (Connection size code)

0200

DCONWS (Diameter)

20 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

20 mm

DCP (Data chip provision)

1 - With data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

HSK06300195

HAND (Cutting direction)

N - Neutral

Interface codes

J6 / J61

ISO

HSK01C0630$$$$

LB (Body length 1)

60 mm

LB (Length 2)

48 mm

LB (Length Body diameter 3)

29 mm

LB (Length Body diameter 4)

26 mm

LF (Functional length)

163 mm

LOC-01 ISO

SZC02G2000****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

SZC Collet adapter SANDVIK Coromant

LOC-01 (CCUWS Connection code unit base)

1 Metric with coolant

LOC-01 (CZCWS Connection size code)

0200

LOC-01 (DCONWS Diameter)

20 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

SZC02000215

LOC-02 ISO

SZC02R7874****

LOC-02 (CCFWS Connection code form)

LOC-02 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-02 (CCTWS Connection code type)

SZC Collet adapter SANDVIK Coromant

LOC-02 (CCUWS Connection code unit base)

1 Metric with coolant

LOC-02 (CZCWS Connection size code)

0200

LOC-02 (DCONWS Diameter)

20 mm

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

SZC07870235

LOC-03 ISO

HSK01C0630$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

HSK Hollow taper shank

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

0630

LOC-03 (DCONMS Diameter)

63 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

HSK06300195

LPR (Protruding length)

163 mm

LS (Shank length)

51 mm

LSCN (Clamping length minimum)

41 mm

LSCX (Clamping length maximum)

51 mm

OAL (Overall length)

195 mm

RPMX (Rotational speed maximum)

20000 1/min

WT (Weight of item)

1.529 kg
