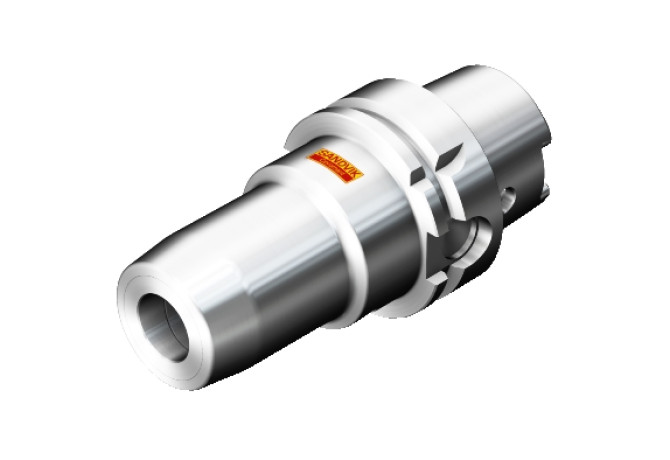

Главная Инструменты 401-01 - Converter, rotationally symmetric 930-HA04-S-10-075

930-HA04-S-10-075

Артикул: 7864383

В наличии

0 ₽

В корзину

Описание

Характеристики

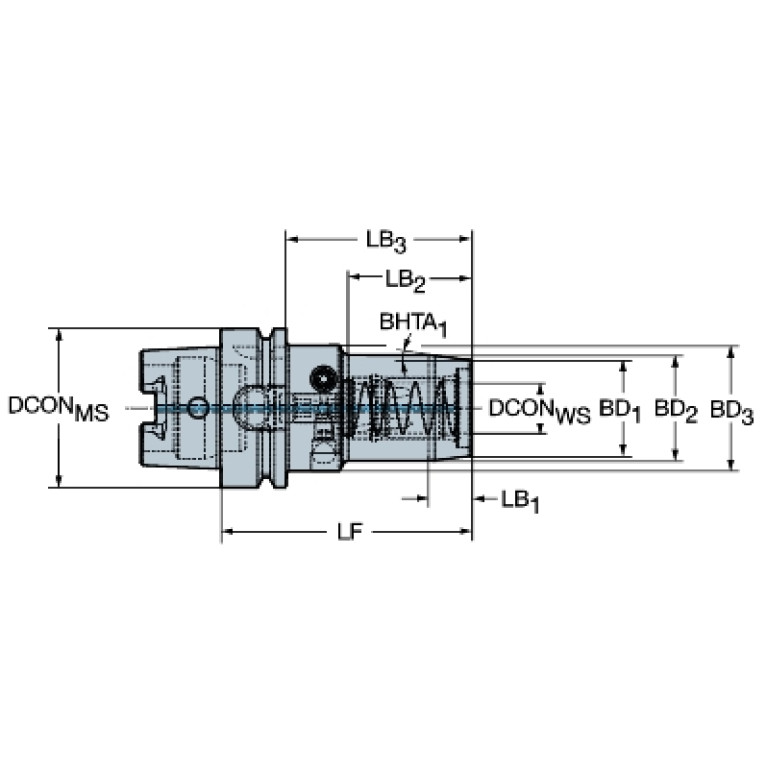

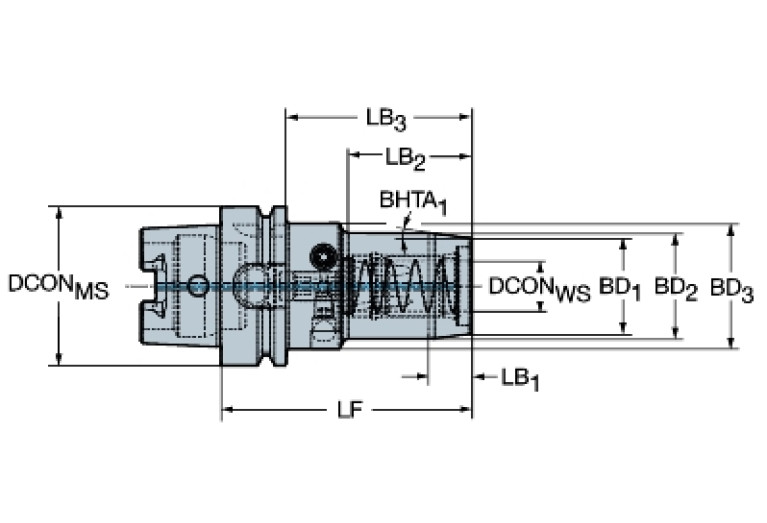

BD (Body diameter 2)

30 mm

BD (Body diameter 3)

32 mm

BD (Body diameter 4)

40 mm

BD (Body diameter)

29.985 mm

BLDEV (Balancing device)

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

SZC

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

1 - With Coolant exit, axial concentric

CXSC (Coolant exit style code) / Тип подвода СОЖ

1 - With Coolant exit, axial concentric

CZCWS (Connection size code)

0100

DCINTF (Interference cutting diameter)

26 mm

DCONWS (Diameter)

10 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

10 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

LA - Soon discontinued

Delivery state valid from

12/1/2023

DIN

HSK04000195

HAND (Cutting direction)

N - Neutral

Interface codes

J6 / J61

ISO

HSK01C0400$$$$

LB (Body length 1)

11.3 mm

LB (Length 2)

28.3 mm

LB (Length Body diameter 3)

15.4 mm

LB (Length Body diameter 4)

20 mm

LF (Functional length)

75 mm

LOC-01 ISO

SZC02G1000****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

SZC Collet adapter SANDVIK Coromant

LOC-01 (CCUWS Connection code unit base)

1 Metric with coolant

LOC-01 (CZCWS Connection size code)

0100

LOC-01 (DCONWS Diameter)

10 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

SZC01000215

LOC-02 ISO

SZC02R3937****

LOC-02 (CCFWS Connection code form)

LOC-02 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-02 (CCTWS Connection code type)

SZC Collet adapter SANDVIK Coromant

LOC-02 (CCUWS Connection code unit base)

1 Metric with coolant

LOC-02 (CZCWS Connection size code)

0100

LOC-02 (DCONWS Diameter)

10 mm

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

SZC03930235

LOC-03 ISO

HSK01C0400$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

HSK Hollow taper shank

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

0400

LOC-03 (DCONMS Diameter)

40 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

HSK04000195

LPR (Protruding length)

75 mm

LS (Shank length)

41 mm

LSCN (Clamping length minimum)

31 mm

LSCX (Clamping length maximum)

41 mm

OAL (Overall length)

95 mm

RPMX (Rotational speed maximum)

30000 1/min

TA (Taper angle)

10 Degree

WT (Weight of item)

0.448 kg
