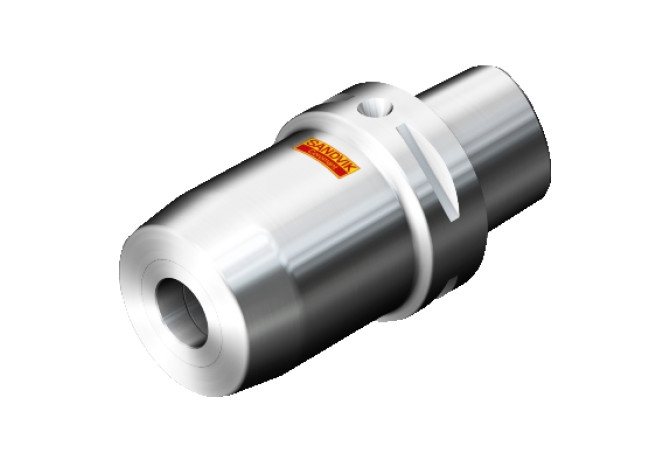

Главная Инструменты 401-01 - Converter, rotationally symmetric 930-C8-HD-32-180

930-C8-HD-32-180

Артикул: 6872186

В наличии

0 ₽

В корзину

Описание

Характеристики

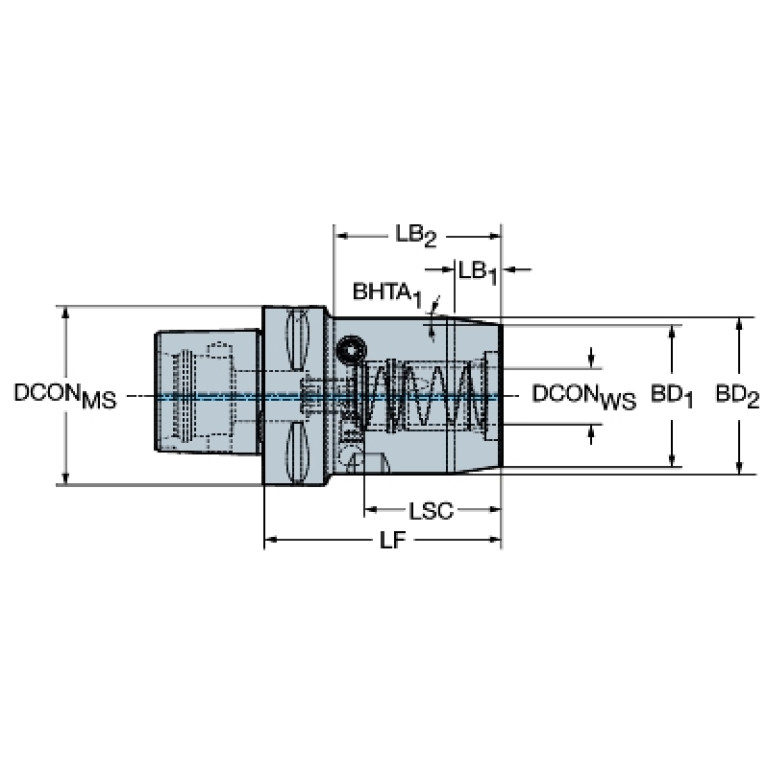

BD (Body diameter 2)

76 mm

BD (Body diameter 3)

80 mm

BD (Body diameter)

75.992 mm

BLDEV (Balancing device)

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

SZC

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

3 - With Coolant entry, axial concentric and radial

CXSC (Coolant exit style code)

1 - With Coolant exit, axial concentric

CXSC (Coolant exit style code) / Тип подвода СОЖ

1 - With Coolant exit, axial concentric

CZCWS (Connection size code)

0320

DCINTF (Interference cutting diameter)

68 mm

DCONWS (Diameter)

32 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

32 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

CCS08000195

HAND (Cutting direction)

N - Neutral

Interface codes

J6 / J61

ISO

CCS01C0800$$$$

LB (Body length 1)

18.8 mm

LB (Length 2)

129.2 mm

LB (Length Body diameter 3)

32 mm

LF (Functional length)

180 mm

LOC-01 ISO

SZC02G3200****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

SZC Collet adapter SANDVIK Coromant

LOC-01 (CCUWS Connection code unit base)

1 Metric with coolant

LOC-01 (CZCWS Connection size code)

0320

LOC-01 (DCONWS Diameter)

32 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

SZC03200215

LOC-02 ISO

SZC02S1259****

LOC-02 (CCFWS Connection code form)

LOC-02 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-02 (CCTWS Connection code type)

SZC Collet adapter SANDVIK Coromant

LOC-02 (CCUWS Connection code unit base)

1 Metric with coolant

LOC-02 (CZCWS Connection size code)

0320

LOC-02 (DCONWS Diameter)

32 mm

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

SZC12590235

LOC-03 ISO

CCS01C0800$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

CCS Coromant Capto System SANDVIK

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

0800

LOC-03 (DCONMS Diameter)

80 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS08000195

LPR (Protruding length)

180 mm

LS (Shank length)

61 mm

LSCN (Clamping length minimum)

51 mm

LSCX (Clamping length maximum)

61 mm

OAL (Overall length)

228 mm

RPMX (Rotational speed maximum)

14000 1/min

TA (Taper angle)

12 Degree

WT (Weight of item)

6.421 kg
