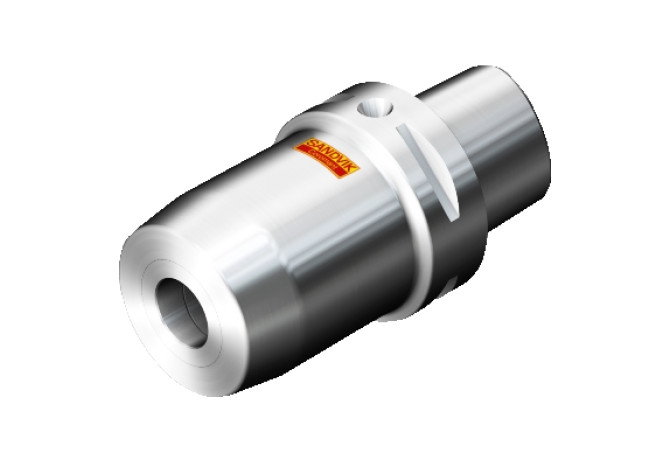

Главная Инструменты 401-01 - Converter, rotationally symmetric 930-C6-HD-A31-091

930-C6-HD-A31-091

Артикул: 7105365

В наличии

0 ₽

В корзину

Описание

Характеристики

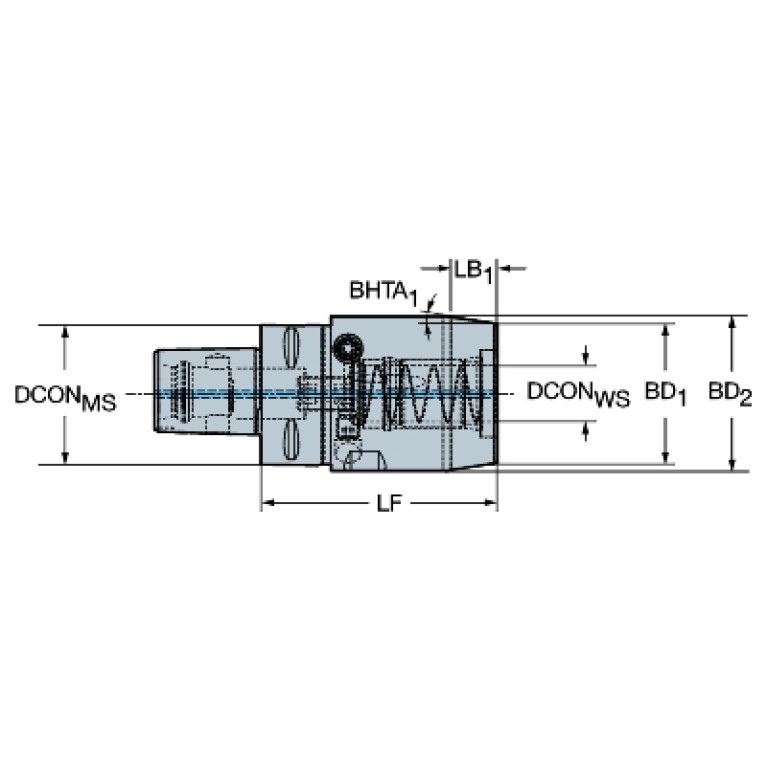

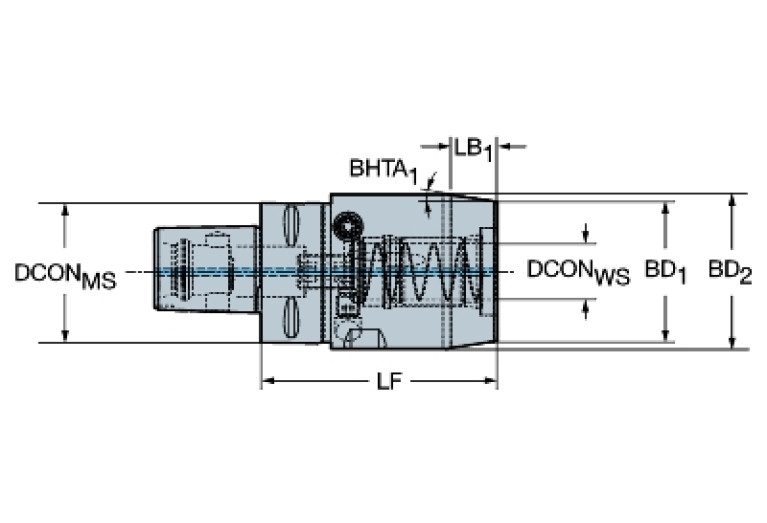

BD (Body diameter 2)

76 mm

BD (Body diameter)

75.992 mm

BLDEV (Balancing device)

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

SZC

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

3 - With Coolant entry, axial concentric and radial

CXSC (Coolant exit style code)

1 - With Coolant exit, axial concentric

CXSC (Coolant exit style code) / Тип подвода СОЖ

1 - With Coolant exit, axial concentric

CZCWS (Connection size code)

1250

DCINTF (Interference cutting diameter)

68 mm

DCONWS (Diameter)

63 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

63 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

CCS06300195

HAND (Cutting direction)

N - Neutral

Interface codes

J6 / J61

ISO

CCS01C0630$$$$

LB (Body length 1)

18.8 mm

LB (Length 2)

72.2 mm

LF (Functional length)

91 mm

LOC-01 ISO

SZC02S1250****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

SZC Collet adapter SANDVIK Coromant

LOC-01 (CCUWS Connection code unit base)

3 Inch with coolant

LOC-01 (CZCWS Connection size code)

1250

LOC-01 (DCONWS Diameter)

63 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

SZC12500235

LOC-02 ISO

SZC02G3175****

LOC-02 (CCFWS Connection code form)

LOC-02 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-02 (CCTWS Connection code type)

SZC Collet adapter SANDVIK Coromant

LOC-02 (CCUWS Connection code unit base)

3 Inch with coolant

LOC-02 (CZCWS Connection size code)

1250

LOC-02 (DCONWS Diameter)

63 mm

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

SZC03170215

LOC-03 ISO

CCS01C0630$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

CCS Coromant Capto System SANDVIK

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

0630

LOC-03 (DCONMS Diameter)

63 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS06300195

LPR (Protruding length)

91 mm

LS (Shank length)

61 mm

LSCN (Clamping length minimum)

51 mm

LSCX (Clamping length maximum)

61 mm

OAL (Overall length)

129 mm

RPMX (Rotational speed maximum)

20000 1/min

TA (Taper angle)

12 Degree

WT (Weight of item)

2.635 kg
