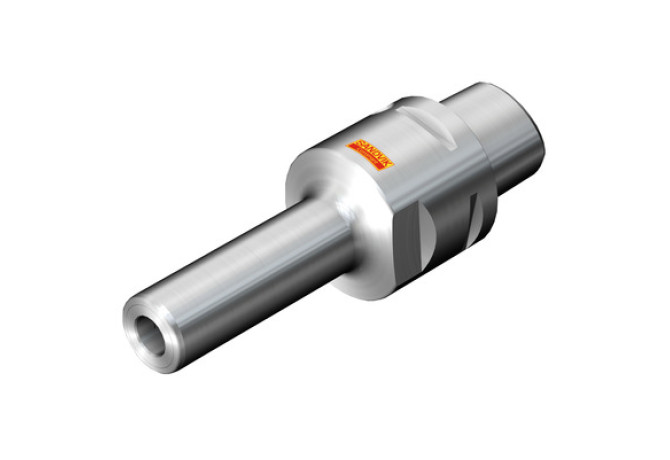

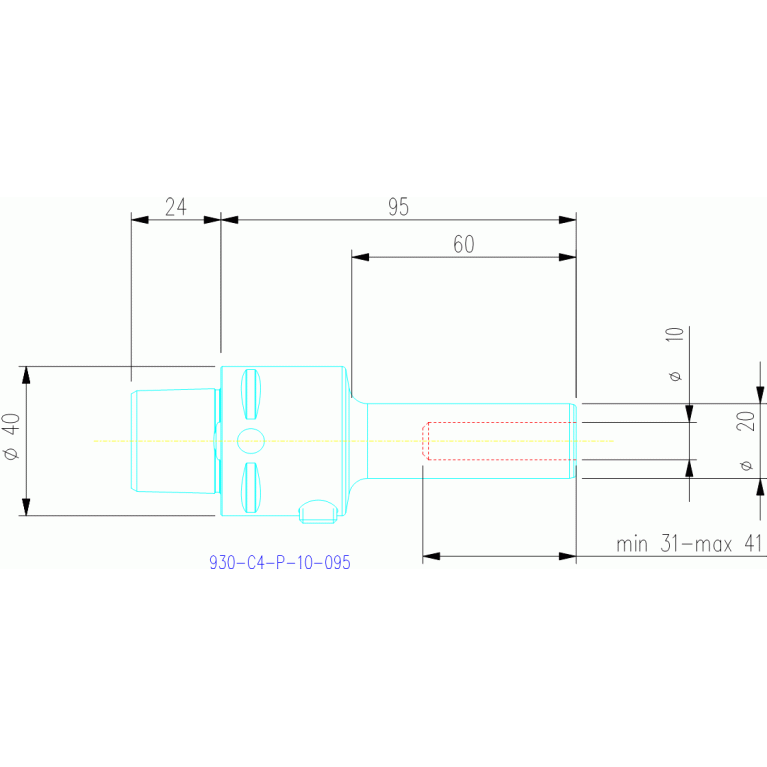

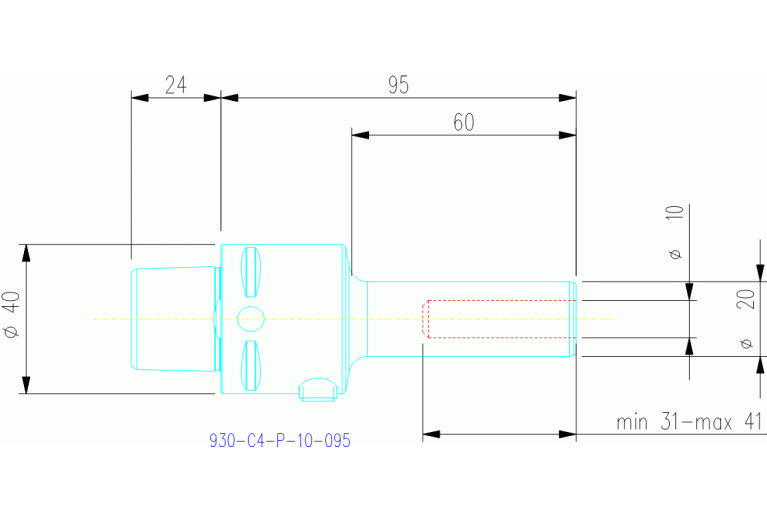

930-C4-P-10-095
930-C4-P-10-095
Артикул:
7864397
В наличии
0 ₽
Характеристики

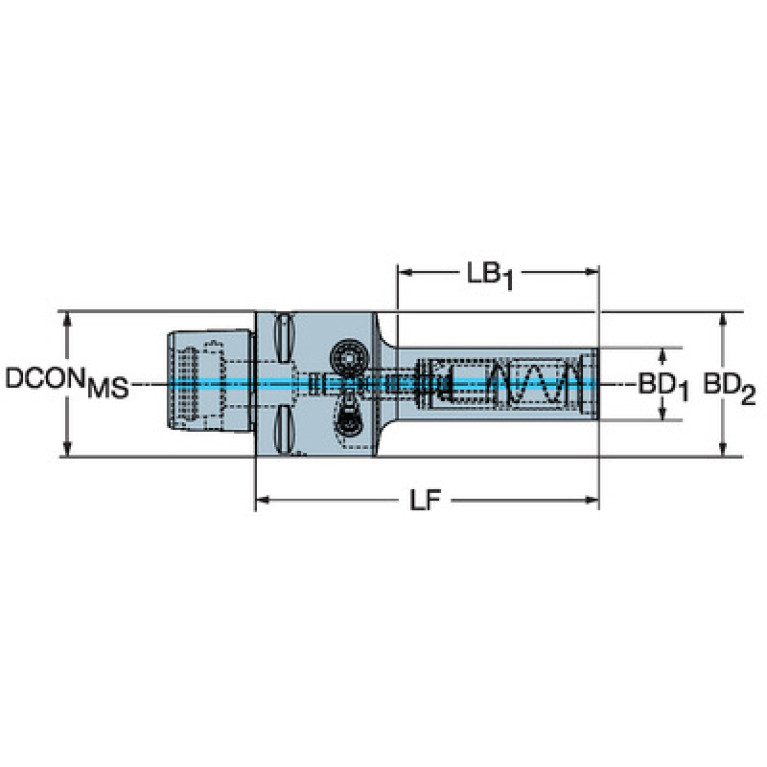

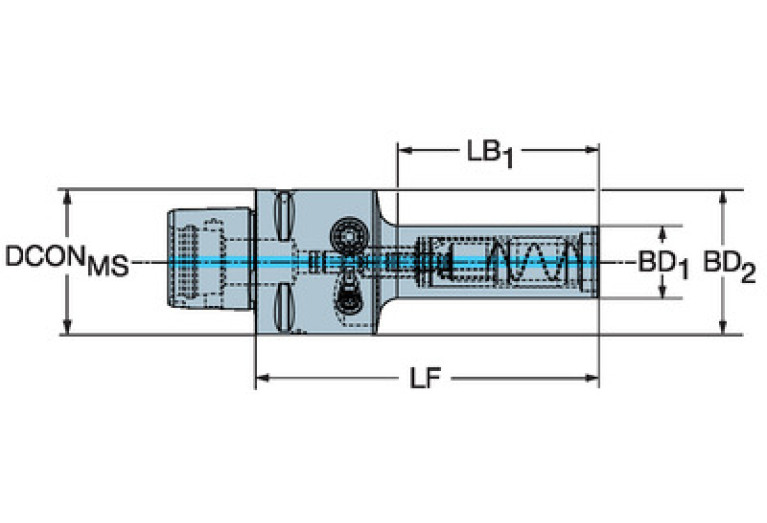

BD (Body diameter 2)
40 mm
BD (Body diameter)
20 mm
BLDEV (Balancing device)
1
CCFWS (Connection code form)
02
CCSWS (Connection code style)
5
CCTWS (Connection code type)
SZC
CCUWS (Connection code unit base)
1
CNSC (Coolant entry style code)
3 - With Coolant entry, axial concentric and radial
CXSC (Coolant exit style code)
1 - With Coolant exit, axial concentric
CXSC (Coolant exit style code) / Тип подвода СОЖ
1 - With Coolant exit, axial concentric
CZCWS (Connection size code)
0100
DCONWS (Diameter)
10 mm
DCONWS (Diameter) / Диаметр соединения со стороны заготовки
10 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
CCS04000195
HAND (Cutting direction)
N - Neutral
Interface codes
J6 / J61
ISO
CCS01C0400$$$$
LB (Body length 1)
55.8 mm
LB (Length 2)
39.2 mm
LF (Functional length)
95 mm
LOC-01 ISO
SZC02G1000****
LOC-01 (CCFWS Connection code form)
02
LOC-01 (CCSWS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-01 (CCTWS Connection code type)
SZC Collet adapter SANDVIK Coromant
LOC-01 (CCUWS Connection code unit base)
1 Metric with coolant
LOC-01 (CZCWS Connection size code)
0100
LOC-01 (DCONWS Diameter)
10 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SZC01000215
LOC-02 ISO
SZC02R3937****
LOC-02 (CCFWS Connection code form)
02
LOC-02 (CCSWS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-02 (CCTWS Connection code type)
SZC Collet adapter SANDVIK Coromant
LOC-02 (CCUWS Connection code unit base)
1 Metric with coolant
LOC-02 (CZCWS Connection size code)
0100
LOC-02 (DCONWS Diameter)
10 mm
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
SZC03930235
LOC-03 ISO
CCS01C0400$$$$
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
CCS Coromant Capto System SANDVIK
LOC-03 (CCUMS Connection code unit base)
9 non-dimensional size with coolant
LOC-03 (CZCMS Connection size code)
0400
LOC-03 (DCONMS Diameter)
40 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS04000195
LPR (Protruding length)
95 mm
LS (Shank length)
41 mm
LSCN (Clamping length minimum)
31 mm
LSCX (Clamping length maximum)
41 mm
OAL (Overall length)
119 mm
RPMX (Rotational speed maximum)
39000 1/min
WT (Weight of item)
0.48 kg
