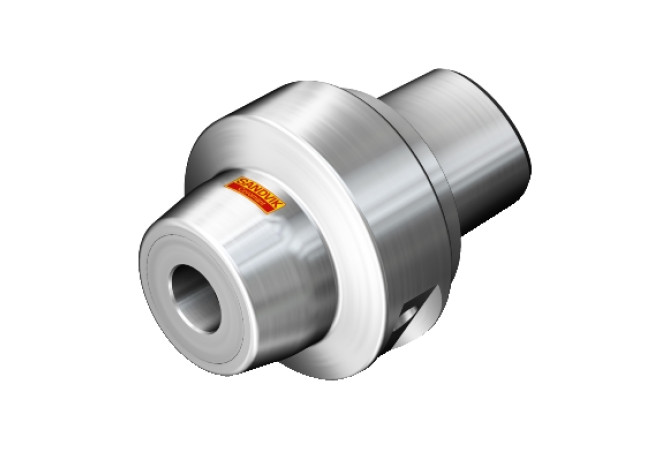

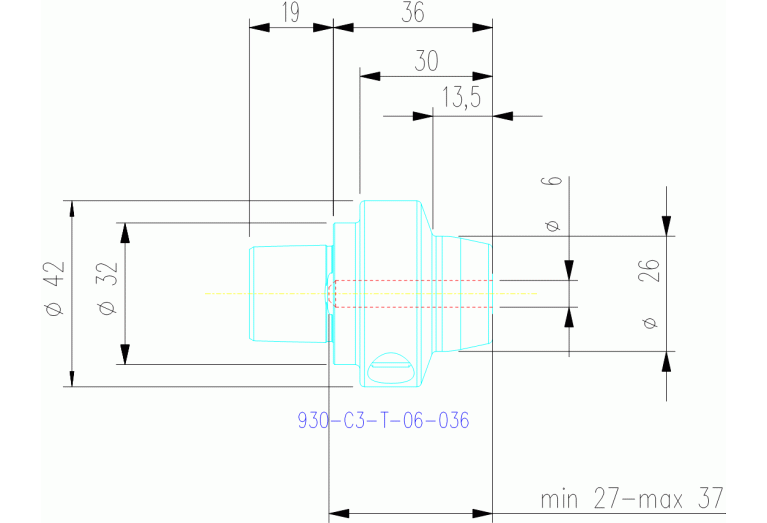

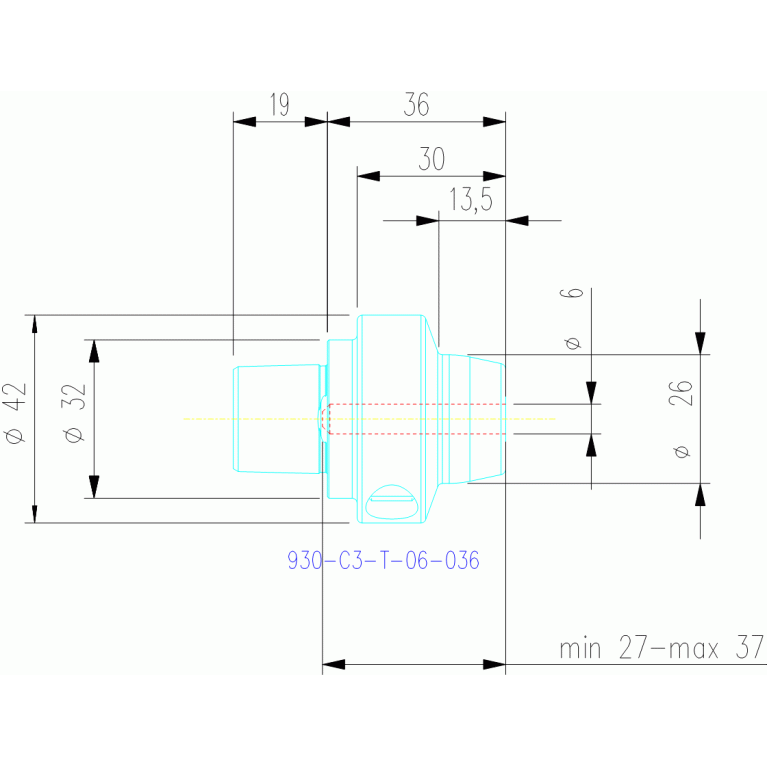

930-C3-T-06-036
930-C3-T-06-036
Артикул:
7864393
В наличии
0 ₽

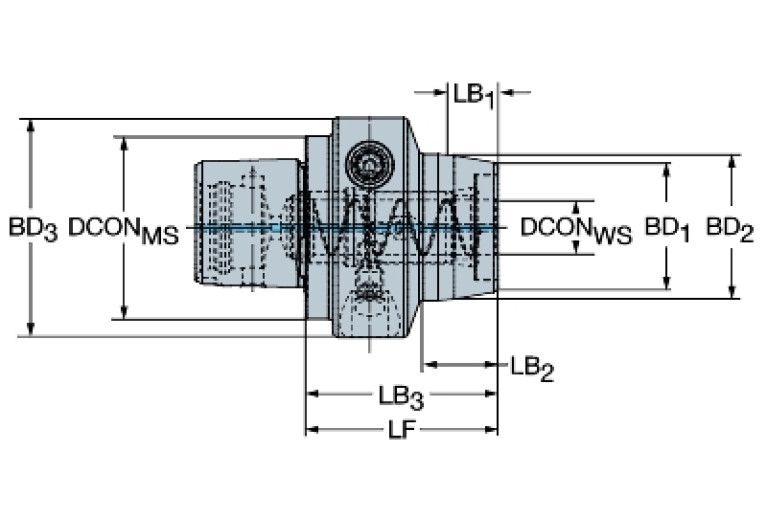

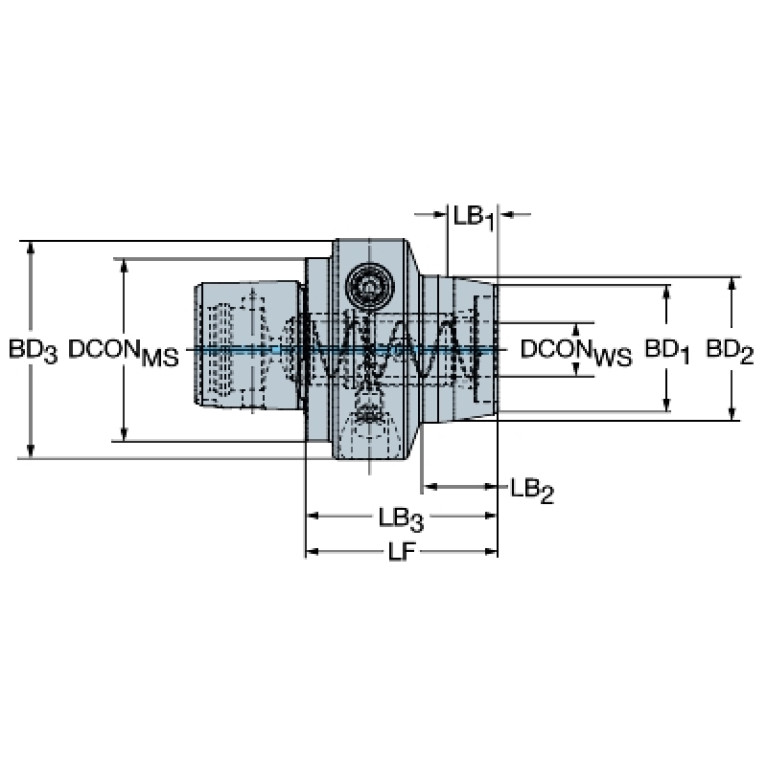

Характеристики
BD (Body diameter 2)
26 mm
BD (Body diameter 3)
42 mm
BD (Body diameter)
25.954 mm
BLDEV (Balancing device)
1
CCFWS (Connection code form)
02
CCSWS (Connection code style)
5
CCTWS (Connection code type)
SZC
CCUWS (Connection code unit base)
1
CNSC (Coolant entry style code)
3 - With Coolant entry, axial concentric and radial
CXSC (Coolant exit style code)
1 - With Coolant exit, axial concentric
CXSC (Coolant exit style code) / Тип подвода СОЖ
1 - With Coolant exit, axial concentric
CZCWS (Connection size code)
0060
DCINTF (Interference cutting diameter)
22 mm
DCONWS (Diameter)
6 mm
DCONWS (Diameter) / Диаметр соединения со стороны заготовки
6 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
CCS03200295
HAND (Cutting direction)
N - Neutral
Interface codes
J6 / J61
ISO
CCS02C0320$$$$
LB (Body length 1)
9.3 mm
LB (Length 2)
3.5 mm
LB (Length Body diameter 3)
23.2 mm
LF (Functional length)
36 mm
LOC-01 ISO
SZC02F6000****
LOC-01 (CCFWS Connection code form)
02
LOC-01 (CCSWS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-01 (CCTWS Connection code type)
SZC Collet adapter SANDVIK Coromant
LOC-01 (CCUWS Connection code unit base)
1 Metric with coolant
LOC-01 (CZCWS Connection size code)
0060
LOC-01 (DCONWS Diameter)
6 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SZC00600215
LOC-02 ISO
SZC02R2362****
LOC-02 (CCFWS Connection code form)
02
LOC-02 (CCSWS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-02 (CCTWS Connection code type)
SZC Collet adapter SANDVIK Coromant
LOC-02 (CCUWS Connection code unit base)
1 Metric with coolant
LOC-02 (CZCWS Connection size code)
0060
LOC-02 (DCONWS Diameter)
6 mm
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
SZC02360235
LOC-03 ISO
CCS02C0320$$$$
LOC-03 (CCFMS Connection code form)
02
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
CCS Coromant Capto System SANDVIK
LOC-03 (CCUMS Connection code unit base)
9 non-dimensional size with coolant
LOC-03 (CZCMS Connection size code)
0320
LOC-03 (DCONMS Diameter)
32 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS03200295
LPR (Protruding length)
36 mm
LS (Shank length)
37 mm
LSCN (Clamping length minimum)
27 mm
LSCX (Clamping length maximum)
37 mm
OAL (Overall length)
55 mm
RPMX (Rotational speed maximum)
10000 1/min
TA (Taper angle)
12 Degree
WT (Weight of item)
0.256 kg
