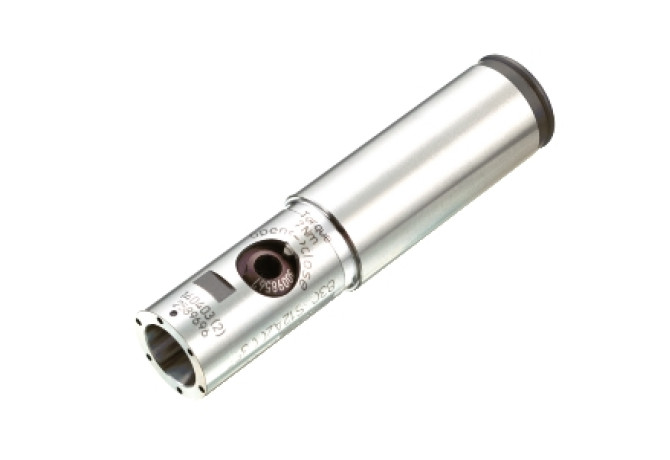

Главная Инструменты 401-01 - Converter, rotationally symmetric 830-S16A25090F

830-S16A25090F

Артикул: 5765227

В наличии

0 ₽

В корзину

Описание

Характеристики

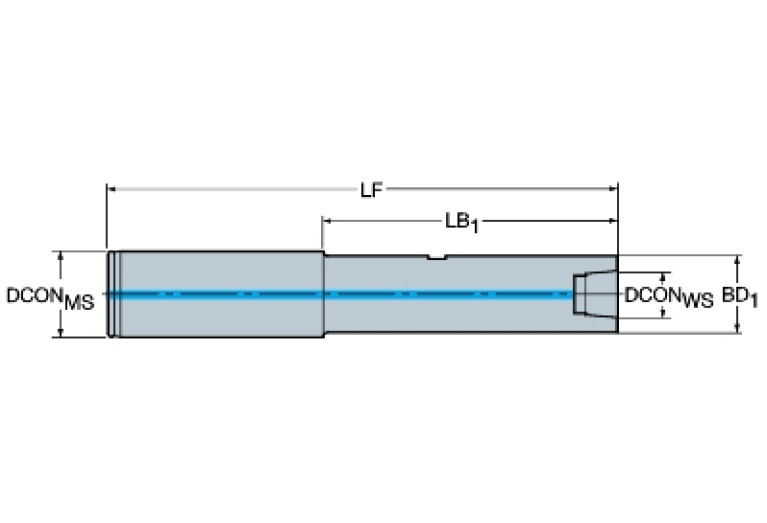

BD (Body diameter 2)

25 mm

BD (Body diameter)

23.2 mm

BLDEV (Balancing device)

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

HFS

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

1 - With Coolant exit, axial concentric

CXSC (Coolant exit style code) / Тип подвода СОЖ

1 - With Coolant exit, axial concentric

CZCWS (Connection size code)

0160

DCONWS (Diameter)

25 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

25 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYL02500115

HAND (Cutting direction)

N - Neutral

Interface codes

J6 / J61

ISO

ZYL01G2500h$06

LB (Body length 1)

90 mm

LB (Length 2)

60 mm

LF (Functional length)

150 mm

LOC-01 ISO

HFS01C0160****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

HFS Head-Fitting-System MAPAL

LOC-01 (CCUWS Connection code unit base)

9 non-dimensional size with coolant

LOC-01 (CZCWS Connection size code)

0160

LOC-01 (DCONWS Diameter)

25 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

HFS01600195

LOC-03 ISO

ZYL01G2500h$06

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

1 Metric with coolant

LOC-03 (CZCMS Connection size code)

0250

LOC-03 (DCONMS Diameter)

25 mm

LOC-03 (TCDCONCDMS Connection tolerance class coded)

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02500115

LPR (Protruding length)

90 mm

LS (Shank length)

60 mm

LSCX (Clamping length maximum)

60 mm

OAL (Overall length)

150 mm

RPMX (Rotational speed maximum)

50000 1/min

TCDCONMS (ISO-tolerance class shank diameter)

WT (Weight of item)

0.545 kg
