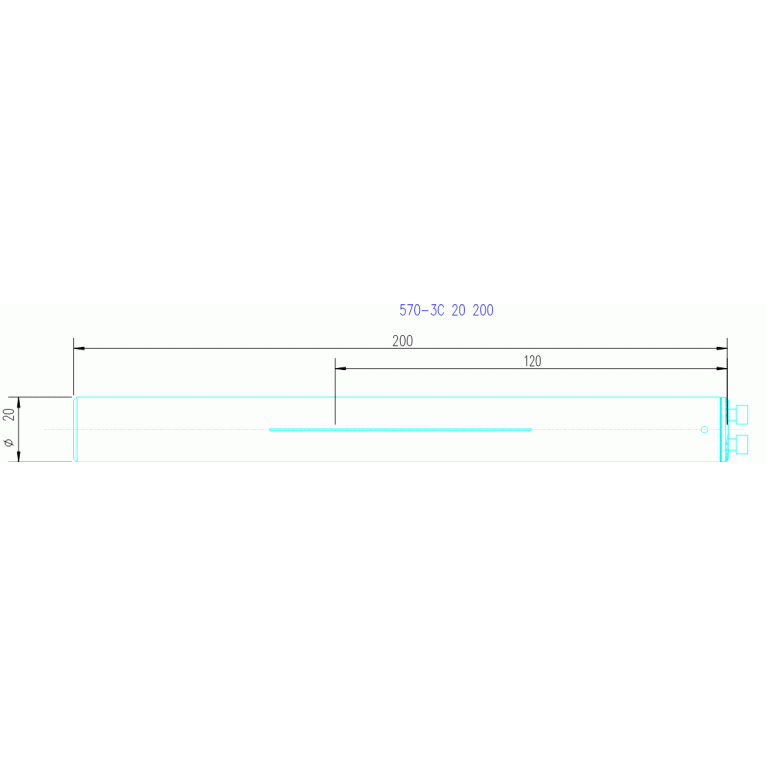

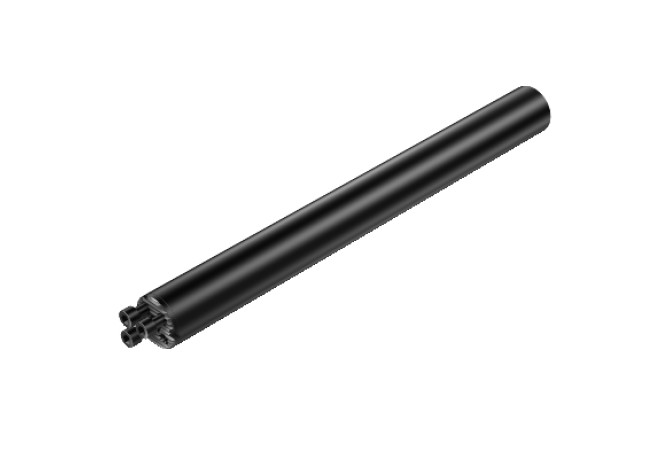

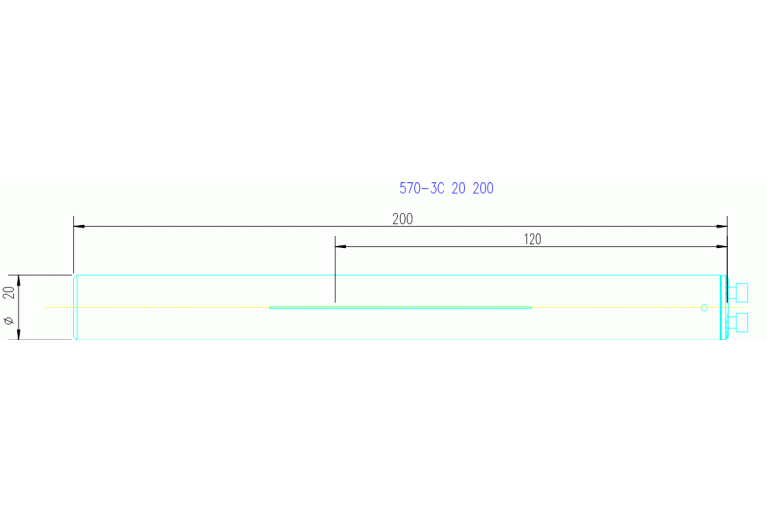

Главная Инструменты 401-01 - Converter, rotationally symmetric 570-3C 20 200

570-3C 20 200

570-3C 20 200 570-3C 20 200 570-3C 20 200 570-3C 20 200

570-3C 20 200

SV - Sandvik-Coromant
Артикул: 5764551
В наличии
0 ₽
В корзину
Описание
Характеристики
BD (Body diameter)
20 mm
CCFWS (Connection code form)
05
CCSWS (Connection code style)
5
CCTWS (Connection code type)
CMS
CCUWS (Connection code unit base)
9
CNSC (Coolant entry style code)
1 - With Coolant entry, axial concentric
CXSC (Coolant exit style code)
3 - With Coolant exit, axial and radial
CXSC (Coolant exit style code) / Тип подвода СОЖ
3 - With Coolant exit, axial and radial
CZCWS (Connection size code)
0200

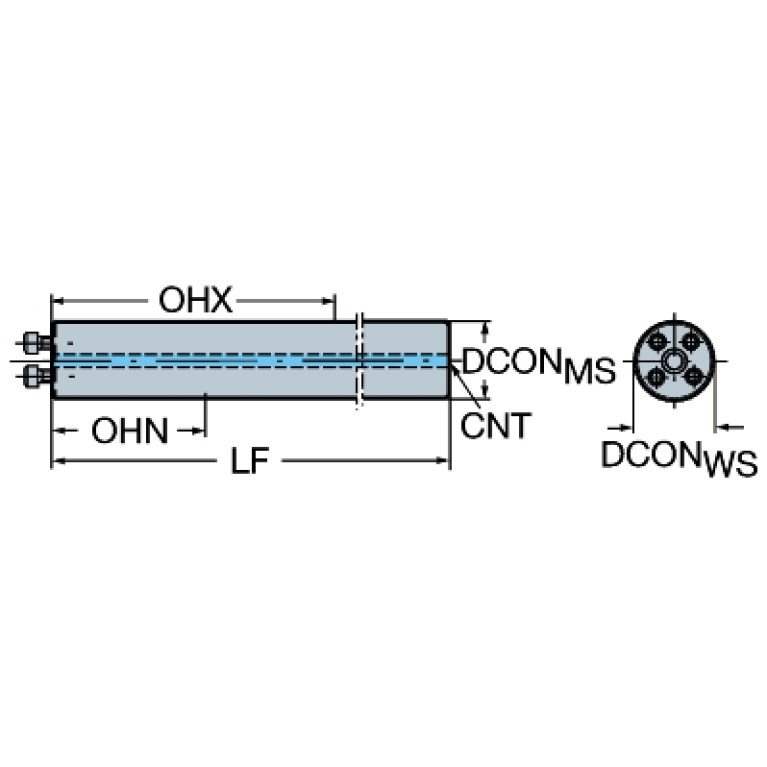

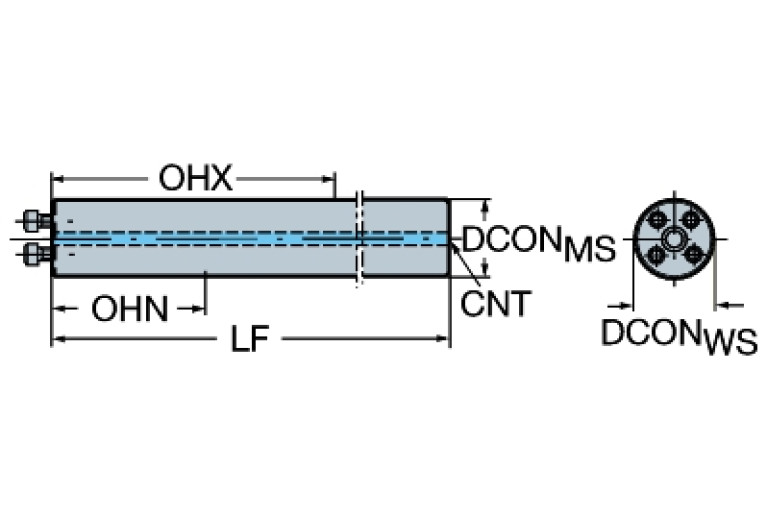

DCONWS (Diameter)
20 mm
DCONWS (Diameter) / Диаметр соединения со стороны заготовки
20 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
ZYL02000115
HAND (Cutting direction)
N - Neutral
HF (Functional height)
0 mm
Interface codes
J6 / J61
ISO
ZYL01G2000$$$$
LB (Body length 1)
200 mm
LF (Functional length)
200 mm
LOC-01 ISO
CMS05C0200****
LOC-01 (CCFWS Connection code form)
05
LOC-01 (CCSWS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-01 (CCTWS Connection code type)
CMS Coromant Modular boring SANDVIK
LOC-01 (CCUWS Connection code unit base)
9 non-dimensional size with coolant
LOC-01 (CZCWS Connection size code)
0200
LOC-01 (DCONWS Diameter)
20 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
CMS02000595
LOC-03 ISO
ZYL01G2000$$$$
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
ZYL cylindrical shank
LOC-03 (CCUMS Connection code unit base)
1 Metric with coolant
LOC-03 (CZCMS Connection size code)
0200
LOC-03 (DCONMS Diameter)
20 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02000115
LPR (Protruding length)
120 mm
LS (Shank length)
130 mm
LSCX (Clamping length maximum)
130 mm
OAL (Overall length)
200 mm
WF (Functional width)
0 mm
WT (Weight of item)
0.46 kg
