Главная Инструменты 401-01 - Converter, rotationally symmetric 5549 201-131

5549 201-131

5549 201-131

SV - Sandvik-Coromant

Артикул: 6899169

В наличии

0 ₽

В корзину

Описание

Характеристики

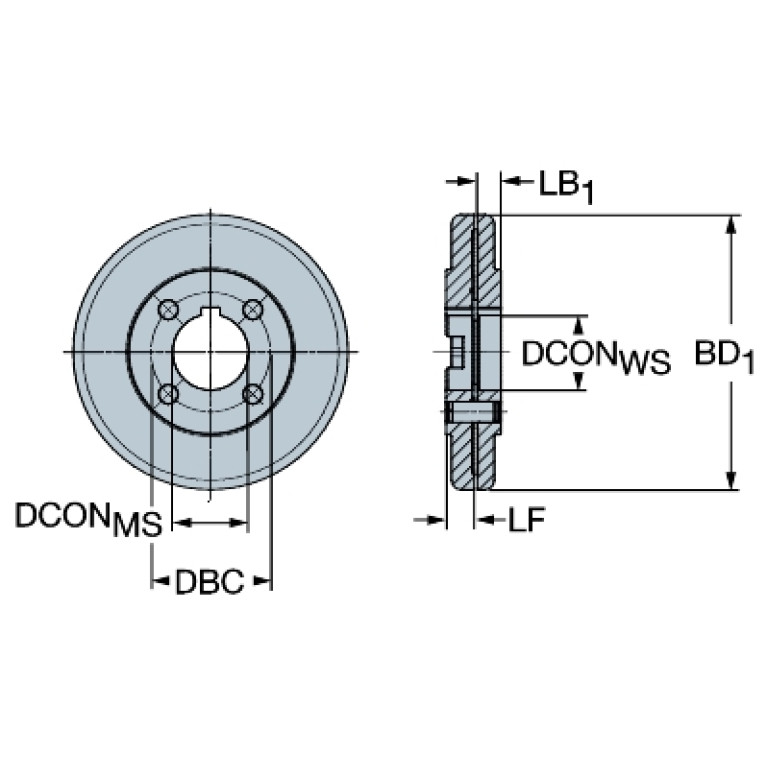

BD (Body diameter)

145 mm

BLDEV (Balancing device)

1

CCFWS (Connection code form)

01

CCSWS (Connection code style)

5

CCTWS (Connection code type)

FLC

CCUWS (Connection code unit base)

9

CNSC (Coolant entry style code)

4 - With Coolant entry, axial on hole circle

CXSC (Coolant exit style code)

4 - With Coolant exit, axial on hole circle

CXSC (Coolant exit style code) / Тип подвода СОЖ

4 - With Coolant exit, axial on hole circle

CZCWS (Connection size code)

0Y38

DBHC (Diameter bolt hole circle)

63 mm

DCONWS (Diameter)

38.1 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

38.1 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

FDA15002230

HAND (Cutting direction)

N - Neutral

Interface codes

J6 / J61

ISO

FDA22S1500$$$$

LB (Body length 1)

12.5 mm

LF (Functional length)

15 mm

LOC-01 ISO

FLC01C0Y38****

LOC-01 (CCFWS Connection code form)

01

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

FLC Flange mounting SANDVIK Coromant

LOC-01 (CCUWS Connection code unit base)

9 non-dimensional size with coolant

LOC-01 (CZCWS Connection size code)

0Y38

LOC-01 (DCONWS Diameter)

38.1 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

FLC0Y380195

LOC-03 ISO

FDA22S1500$$$$

LOC-03 (CCFMS Connection code form)

22

LOC-03 (CCSMS Connection code style)

0 Hole in machine direction or shaft in workpiece direction

LOC-03 (CCTMS Connection code type)

FDA Milling arbor mounting

LOC-03 (CCUMS Connection code unit base)

3 Inch with coolant

LOC-03 (CZCMS Connection size code)

1500

LOC-03 (DCONMS Diameter)

38.1 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA15002230

LPR (Protruding length)

15 mm

LS (Shank length)

2.4 mm

LSCX (Clamping length maximum)

2.4 mm

OAL (Overall length)

29 mm

WT (Weight of item)

2.777 kg
