Главная Инструменты 401-01 - Converter, rotationally symmetric 5549 201-011

5549 201-011

Артикул: 6899163

В наличии

0 ₽

В корзину

Описание

Характеристики

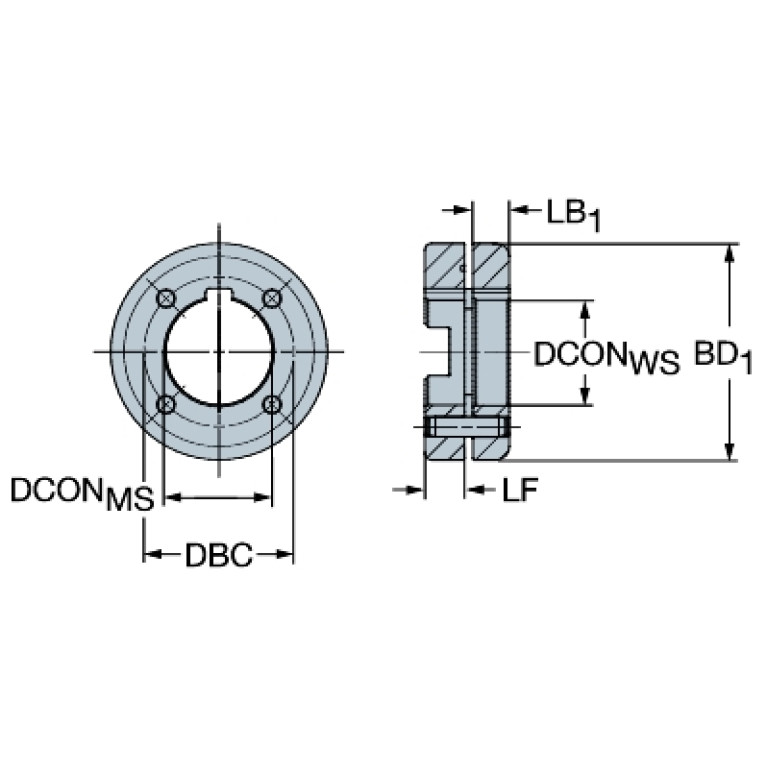

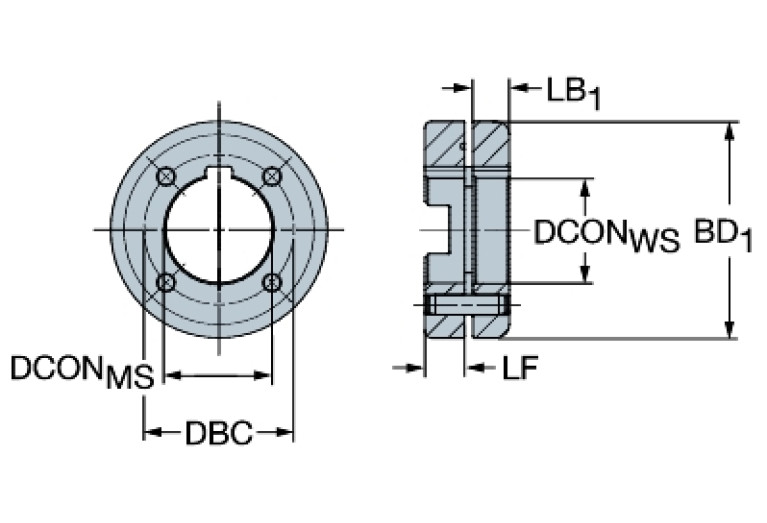

BD (Body diameter)

65 mm

BLDEV (Balancing device)

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

FLC

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

4 - With Coolant entry, axial on hole circle

CXSC (Coolant exit style code)

4 - With Coolant exit, axial on hole circle

CXSC (Coolant exit style code) / Тип подвода СОЖ

4 - With Coolant exit, axial on hole circle

CZCWS (Connection size code)

0X32

DBHC (Diameter bolt hole circle)

45 mm

DCONWS (Diameter)

32 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

32 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

FDA03202210

HAND (Cutting direction)

N - Neutral

Interface codes

J6 / J61

ISO

FDA22G3200$$$$

LB (Body length 1)

11 mm

LF (Functional length)

12 mm

LOC-01 ISO

FLC01C0X32****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

FLC Flange mounting SANDVIK Coromant

LOC-01 (CCUWS Connection code unit base)

9 non-dimensional size with coolant

LOC-01 (CZCWS Connection size code)

0X32

LOC-01 (DCONWS Diameter)

32 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

FLC0X320195

LOC-03 ISO

FDA22G3200$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

0 Hole in machine direction or shaft in workpiece direction

LOC-03 (CCTMS Connection code type)

FDA Milling arbor mounting

LOC-03 (CCUMS Connection code unit base)

1 Metric with coolant

LOC-03 (CZCMS Connection size code)

0320

LOC-03 (DCONMS Diameter)

32 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA03202210

LPR (Protruding length)

12 mm

LS (Shank length)

2.4 mm

LSCX (Clamping length maximum)

2.4 mm

OAL (Overall length)

25.4 mm

WT (Weight of item)

0.46 kg
