41005CG-63 22 057
41005CG-63 22 057
Артикул:
5760745
В наличии
0 ₽

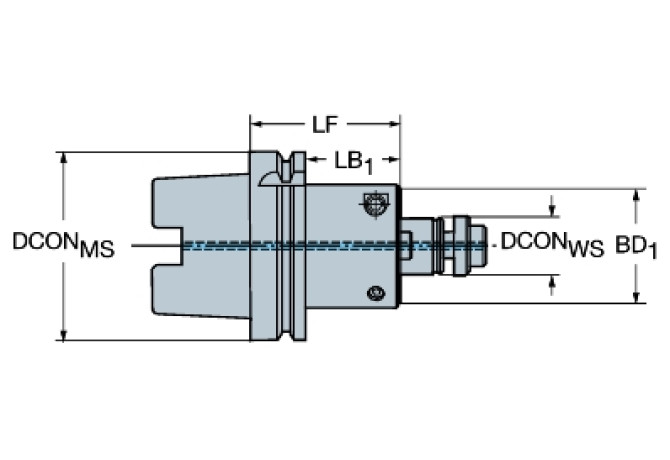

Характеристики
BD (Body diameter 2)
63 mm
BD (Body diameter)
48 mm
BLDEV (Balancing device)
1
BLQ (Balance quality code)
2.5
CCFWS (Connection code form)
22
CCSWS (Connection code style)
CCTWS (Connection code type)
FDA
CCUWS (Connection code unit base)
1
CNSC (Coolant entry style code)
1 - With Coolant entry, axial concentric
CXSC (Coolant exit style code)
1 - With Coolant exit, axial concentric
CXSC (Coolant exit style code) / Тип подвода СОЖ
1 - With Coolant exit, axial concentric
CZCWS (Connection size code)
0220
DCONWS (Diameter)
63 mm
DCONWS (Diameter) / Диаметр соединения со стороны заготовки
63 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state
LA - Soon discontinued
Delivery state valid from
12/1/2023
DIN
HSK06300195
HAND (Cutting direction)
N - Neutral
Interface codes
J6 / J61
ISO
HSK01C0630$$$$
LB (Body length 1)
31 mm
LB (Length 2)
26 mm
LF (Functional length)
57 mm
LOC-01 ISO
FDA22G2200****
LOC-01 (CCFWS Connection code form)
22
LOC-01 (CCSWS Connection code style)
0 Hole in machine direction or shaft in workpiece direction
LOC-01 (CCTWS Connection code type)
FDA Milling arbor mounting
LOC-01 (CCUWS Connection code unit base)
1 Metric with coolant
LOC-01 (CZCWS Connection size code)
0220
LOC-01 (DCONWS Diameter)
63 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
FDA02202210
LOC-02 ISO
FDA12G2200****
LOC-02 (CCFWS Connection code form)
22
LOC-02 (CCSWS Connection code style)
0 Hole in machine direction or shaft in workpiece direction
LOC-02 (CCTWS Connection code type)
FDA Milling arbor mounting
LOC-02 (CCUWS Connection code unit base)
1 Metric with coolant
LOC-02 (CZCWS Connection size code)
0220
LOC-02 (DCONWS Diameter)
63 mm
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
FDA02201210
LOC-03 ISO
HSK01C0630$$$$
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
HSK Hollow taper shank
LOC-03 (CCUMS Connection code unit base)
9 non-dimensional size with coolant
LOC-03 (CZCMS Connection size code)
0630
LOC-03 (DCONMS Diameter)
63 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK06300195
LPR (Protruding length)
57 mm
OAL (Overall length)
89 mm
RPMX (Rotational speed maximum)
23000 1/min
WT (Weight of item)
1.26 kg
