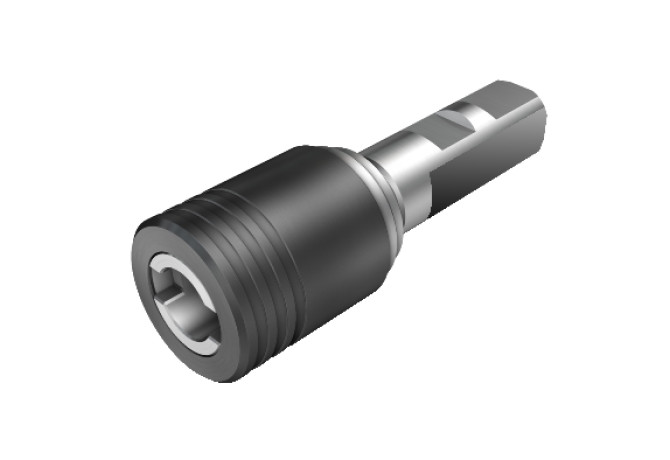

Главная Инструменты 401-01 - Converter, rotationally symmetric 393.2060-32 03 099

393.2060-32 03 099

Артикул: 5760596

В наличии

0 ₽

В корзину

Описание

Характеристики

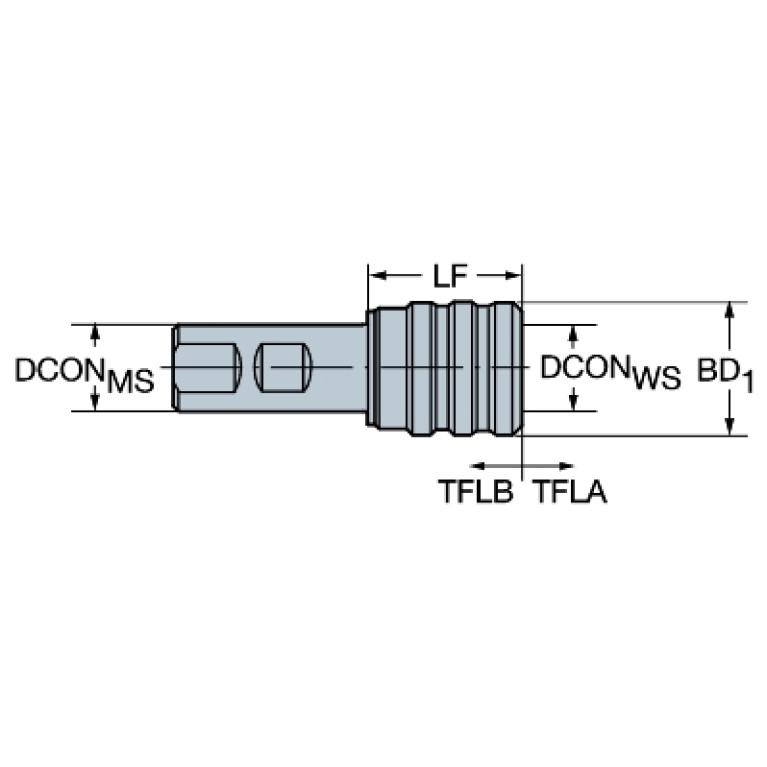

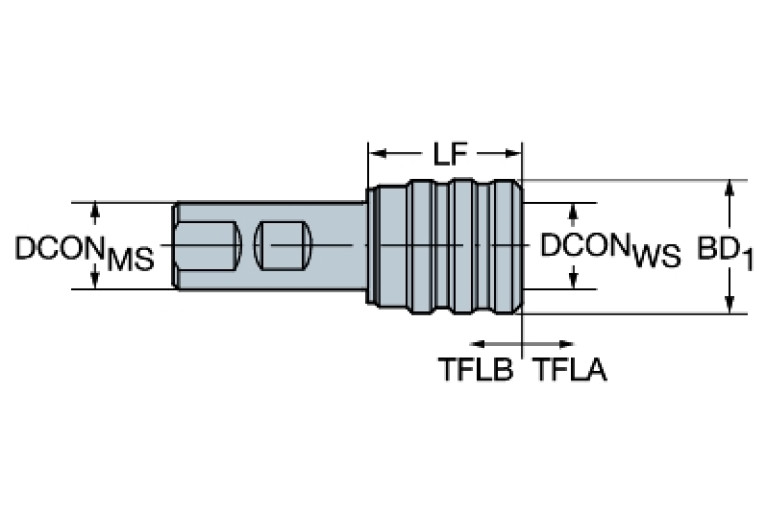

BD (Body diameter)

86 mm

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

SWB

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

CZCWS (Connection size code)

0480

DCONWS (Diameter)

32 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

32 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

ZYL03201005

HAND (Cutting direction)

N - Neutral

Interface codes

J6 / J61

ISO

ZYL10G3200h$06

LB (Body length 1)

99 mm

LF (Functional length)

63 mm

LOC-01 ISO

SWB00C0480****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

SWB Quick change adapter BILZ

LOC-01 (CCUWS Connection code unit base)

8 non-dimensional size

LOC-01 (CZCWS Connection size code)

0480

LOC-01 (DCONWS Diameter)

32 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

SWB04800085

LOC-02 ISO

SWB01C0480****

LOC-02 (CCFWS Connection code form)

LOC-02 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-02 (CCTWS Connection code type)

SWB Quick change adapter BILZ

LOC-02 (CCUWS Connection code unit base)

8 non-dimensional size

LOC-02 (CZCWS Connection size code)

0480

LOC-02 (DCONWS Diameter)

32 mm

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

SWB04800185

LOC-03 ISO

ZYL10G3200h$06

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

0 Metric

LOC-03 (CZCMS Connection size code)

0320

LOC-03 (DCONMS Diameter)

32 mm

LOC-03 (TCDCONCDMS Connection tolerance class coded)

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL03201005

LPR (Protruding length)

99 mm

LS (Shank length)

60 mm

LSCX (Clamping length maximum)

60 mm

OAL (Overall length)

160 mm

RPMX (Rotational speed maximum)

8000 1/min

TCDCONMS (ISO-tolerance class shank diameter)

WT (Weight of item)

2.74 kg
