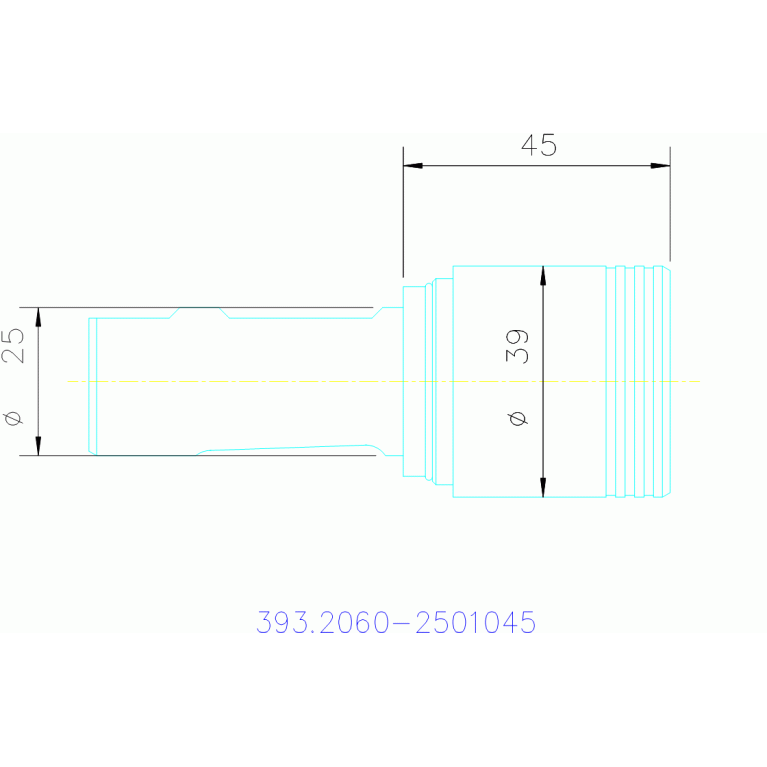

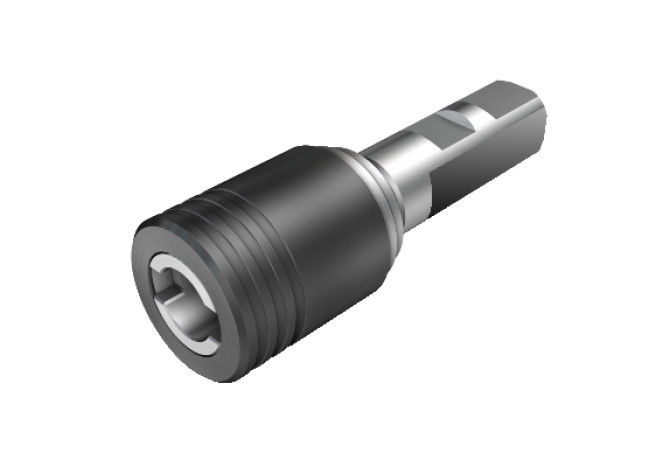

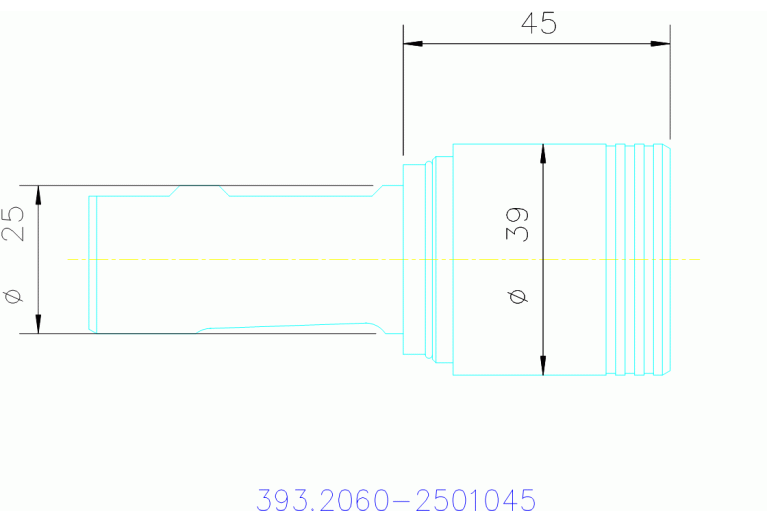

Главная Инструменты 401-01 - Converter, rotationally symmetric 393.2060-25 01 045

393.2060-25 01 045

Артикул: 5760583

В наличии

0 ₽

В корзину

Описание

Характеристики

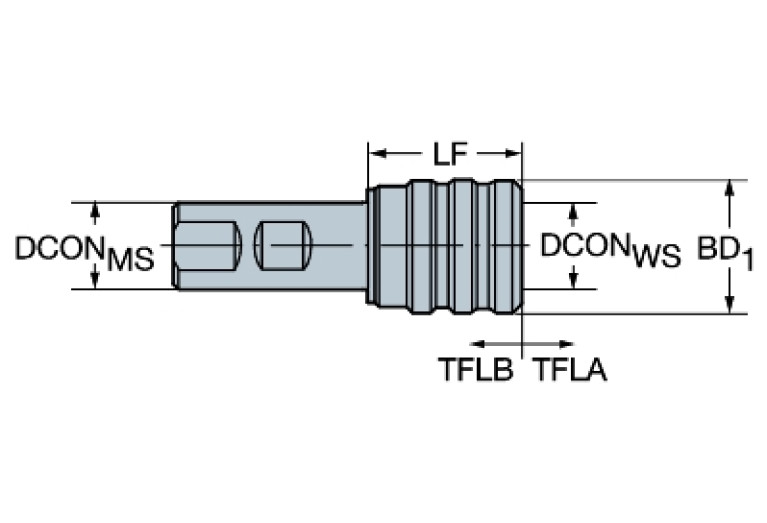

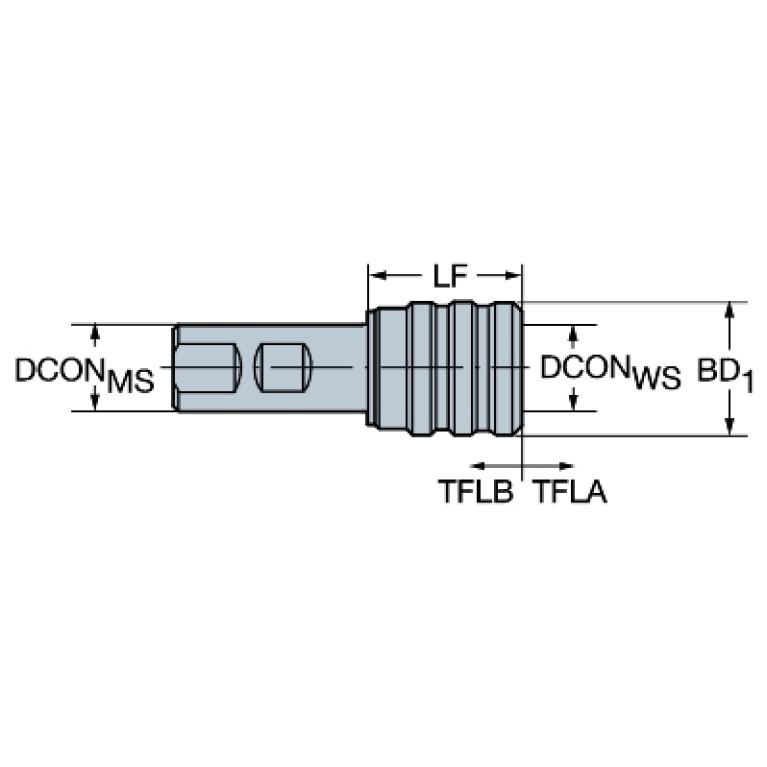

BD (Body diameter)

39 mm

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

SWB

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

CZCWS (Connection size code)

0190

DCONWS (Diameter)

25 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

25 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

LA - Soon discontinued

Delivery state valid from

12/1/2023

DIN

ZYL02501005

HAND (Cutting direction)

N - Neutral

Interface codes

J6 / J61

ISO

ZYL10G2500h$06

LB (Body length 1)

45 mm

LF (Functional length)

13 mm

LOC-01 ISO

SWB00C0190****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

SWB Quick change adapter BILZ

LOC-01 (CCUWS Connection code unit base)

8 non-dimensional size

LOC-01 (CZCWS Connection size code)

0190

LOC-01 (DCONWS Diameter)

25 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

SWB01900085

LOC-02 ISO

SWB01C0190****

LOC-02 (CCFWS Connection code form)

LOC-02 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-02 (CCTWS Connection code type)

SWB Quick change adapter BILZ

LOC-02 (CCUWS Connection code unit base)

8 non-dimensional size

LOC-02 (CZCWS Connection size code)

0190

LOC-02 (DCONWS Diameter)

25 mm

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

SWB01900185

LOC-03 ISO

ZYL10G2500h$06

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

0 Metric

LOC-03 (CZCMS Connection size code)

0250

LOC-03 (DCONMS Diameter)

25 mm

LOC-03 (TCDCONCDMS Connection tolerance class coded)

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02501005

LPR (Protruding length)

45 mm

LS (Shank length)

56 mm

LSCX (Clamping length maximum)

56 mm

OAL (Overall length)

102 mm

RPMX (Rotational speed maximum)

8000 1/min

TCDCONMS (ISO-tolerance class shank diameter)

WT (Weight of item)

0.42 kg
