Главная Инструменты 401-01 - Converter, rotationally symmetric 393.14-12 16 080

393.14-12 16 080

Артикул: 5760429

В наличии

0 ₽

В корзину

Описание

Характеристики

BLDEV (Balancing device)

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

SZD

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

1 - With Coolant exit, axial concentric

CXSC (Coolant exit style code) / Тип подвода СОЖ

1 - With Coolant exit, axial concentric

CZCWS (Connection size code)

0160

DCONWS (Diameter)

12 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

12 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

ZYL01200115

DLN (Diameter lock nut)

22 mm

HAND (Cutting direction)

N - Neutral

Interface codes

J6 / J61

ISO

ZYL01G1200$$$$

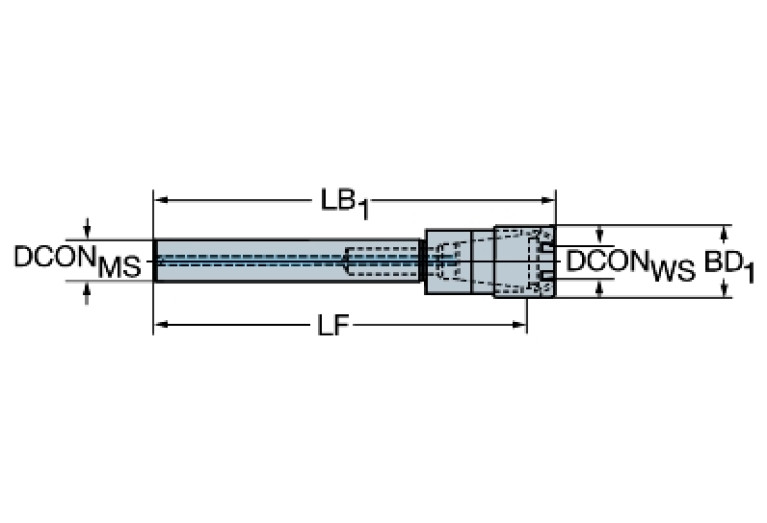

LB (Body length 1)

89.965 mm

LF (Functional length)

107 mm

LOC-01 ISO

SZD02C0160****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

SZD Collet adapter DIN / ISO

LOC-01 (CCUWS Connection code unit base)

9 non-dimensional size with coolant

LOC-01 (CZCWS Connection size code)

0160

LOC-01 (DCONWS Diameter)

12 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

SZD01600295

LOC-03 ISO

ZYL01G1200$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

1 Metric with coolant

LOC-03 (CZCMS Connection size code)

0120

LOC-03 (DCONMS Diameter)

12 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01200115

LPR (Protruding length)

118.5 mm

LS (Shank length)

77 mm

LSCX (Clamping length maximum)

77 mm

OAL (Overall length)

118.5 mm

WT (Weight of item)

0.126 kg
