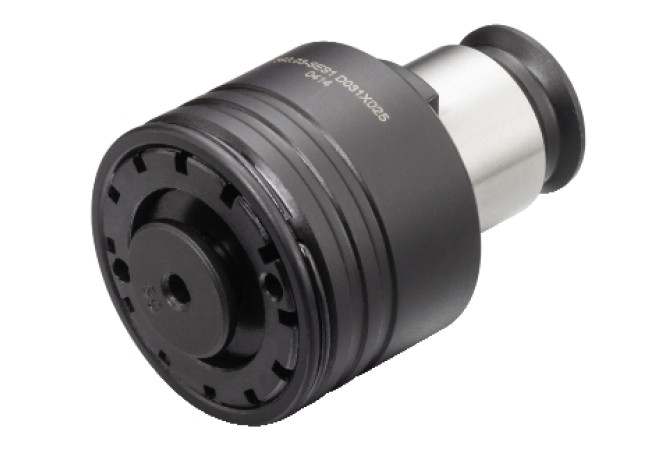

Главная Инструменты 401-01 - Converter, rotationally symmetric 393.03-SES2 D112X090

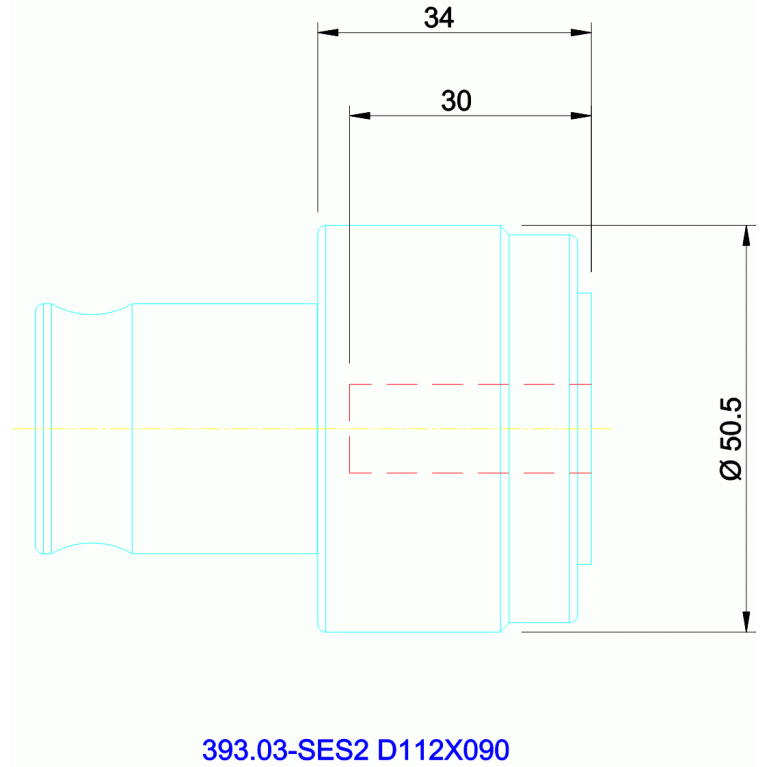

393.03-SES2 D112X090

Артикул: 5760308

В наличии

0 ₽

В корзину

Описание

Характеристики

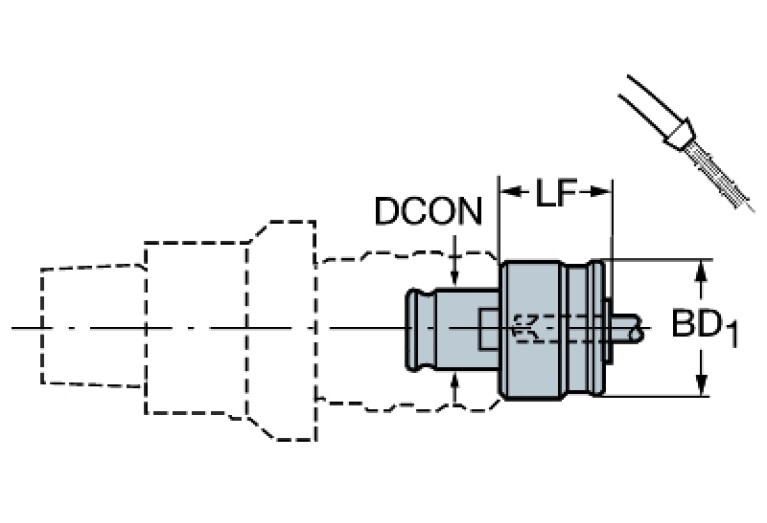

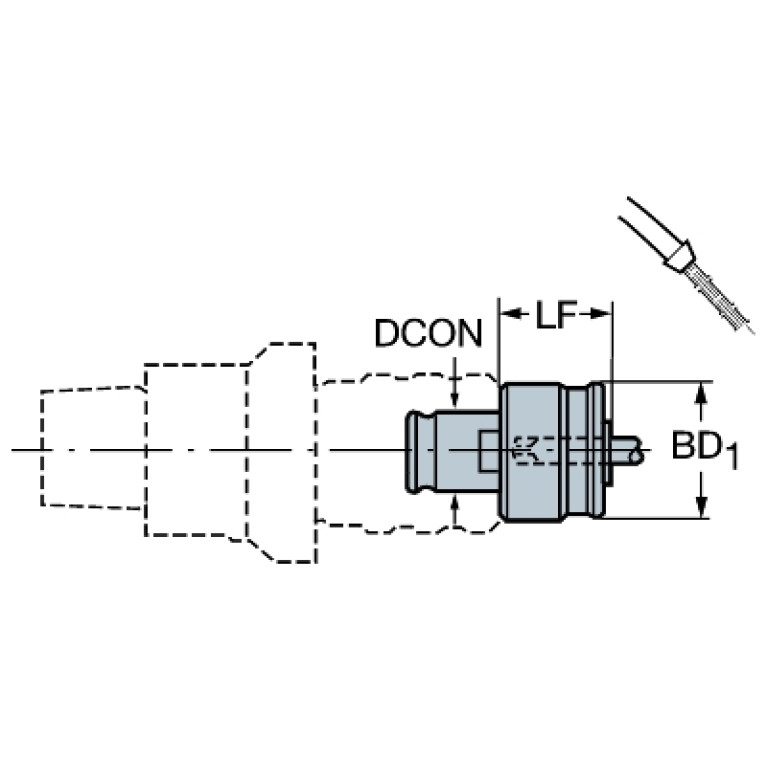

BD (Body diameter)

50.5 mm

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

ZYL

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

1 - With Coolant exit, axial concentric

CXSC (Coolant exit style code) / Тип подвода СОЖ

1 - With Coolant exit, axial concentric

CZCWS (Connection size code)

0112

DCONWS (Diameter)

11.2 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

11.2 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

SWB03100195

HAND (Cutting direction)

N - Neutral

Interface codes

J6 / J61

ISO

SWB01C0310$$$$

LB (Body length 1)

34 mm

LF (Functional length)

34 mm

LOC-01 ISO

ZYL21G1120****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

ZYL cylindrical shank

LOC-01 (CCUWS Connection code unit base)

1 Metric with coolant

LOC-01 (CZCWS Connection size code)

0112

LOC-01 (DCONWS Diameter)

11.2 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL01122115

LOC-02 ISO

ZYL21R4409****

LOC-02 (CCFWS Connection code form)

LOC-02 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-02 (CCTWS Connection code type)

ZYL cylindrical shank

LOC-02 (CCUWS Connection code unit base)

1 Metric with coolant

LOC-02 (CZCWS Connection size code)

0112

LOC-02 (DCONWS Diameter)

11.2 mm

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

ZYL04402135

LOC-03 ISO

SWB01C0310$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

SWB Quick change adapter BILZ

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

0310

LOC-03 (DCONMS Diameter)

31 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SWB03100195

LPR (Protruding length)

34 mm

LS (Shank length)

35 mm

LSCX (Clamping length maximum)

35 mm

OAL (Overall length)

69 mm

RPMX (Rotational speed maximum)

8000 1/min

WT (Weight of item)

0.6 kg
