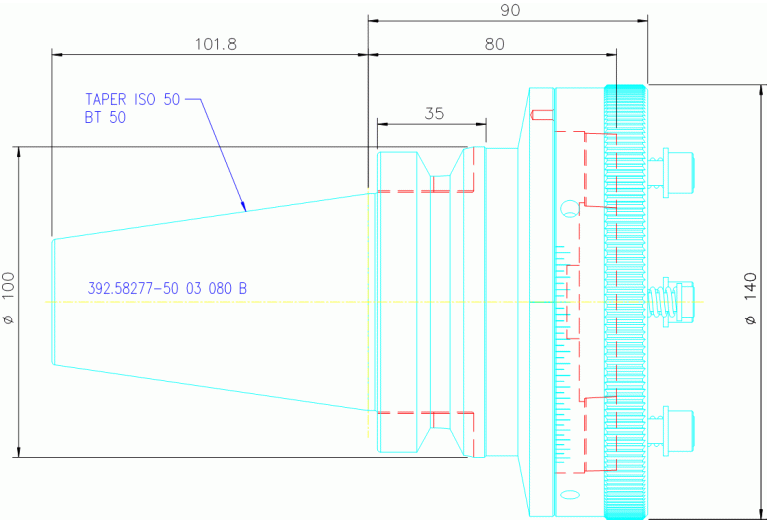

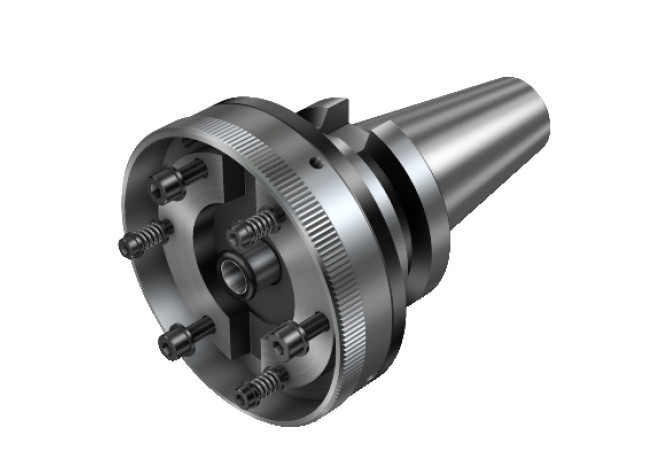

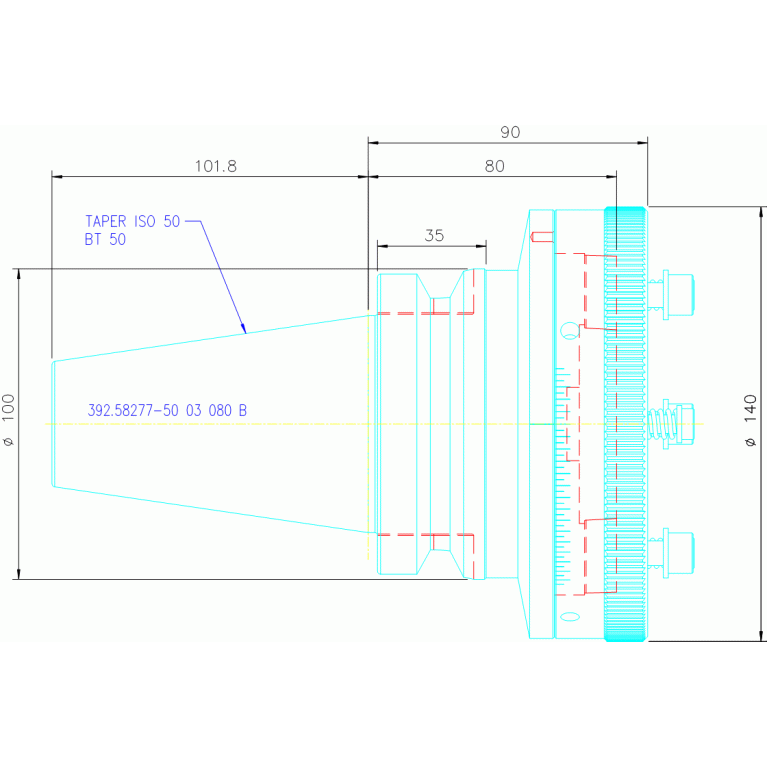

Главная Инструменты 401-01 - Converter, rotationally symmetric 392.58277-50 03 080B

392.58277-50 03 080B

Артикул: 5760142

В наличии

0 ₽

В корзину

Описание

Характеристики

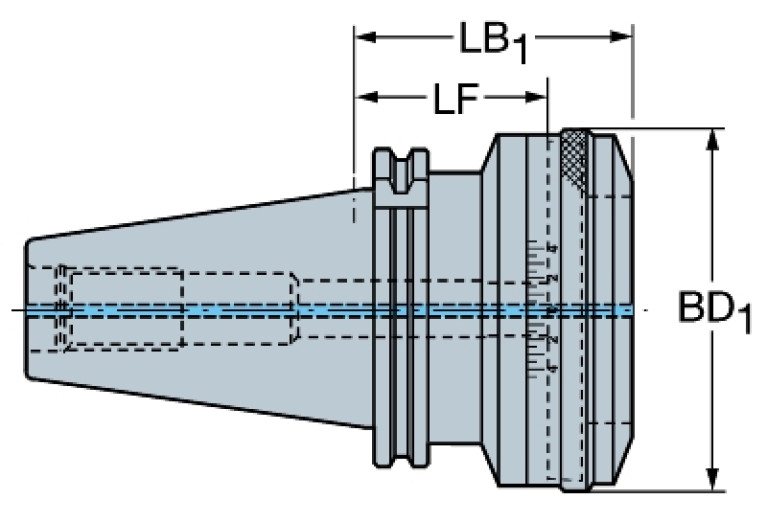

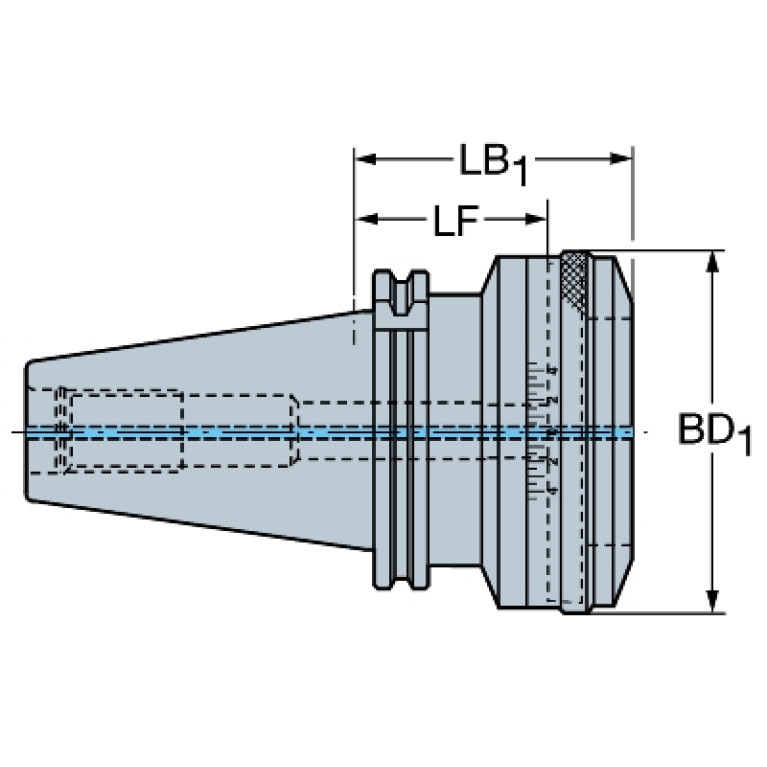

BD (Body diameter)

140 mm

BLDEV (Balancing device)

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

PMC

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

1 - With Coolant exit, axial concentric

CXSC (Coolant exit style code) / Тип подвода СОЖ

1 - With Coolant exit, axial concentric

CZCWS (Connection size code)

1360

DCONWS (Diameter)

136 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

136 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

LA - Soon discontinued

Delivery state valid from

12/1/2023

DF (Flange diameter)

100 mm

DIN

SKG05005195

HAND (Cutting direction)

N - Neutral

Interface codes

J6 / J61

ISO

SKG51C0500$$$$

LB (Body length 1)

52 mm

LF (Functional length)

80 mm

LOC-01 ISO

PMC08C1360****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

PMC Prism mounting SANDVIK Coromant

LOC-01 (CCUWS Connection code unit base)

9 non-dimensional size with coolant

LOC-01 (CZCWS Connection size code)

1360

LOC-01 (DCONWS Diameter)

136 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

PMC13600895

LOC-03 ISO

SKG51C0500$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

SKG steep taper shank

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

0500

LOC-03 (DCONMS Diameter)

136 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG05005195

LPR (Protruding length)

80 mm

OAL (Overall length)

191.8 mm

RPMX (Rotational speed maximum)

6000 1/min

WT (Weight of item)

7.186 kg
