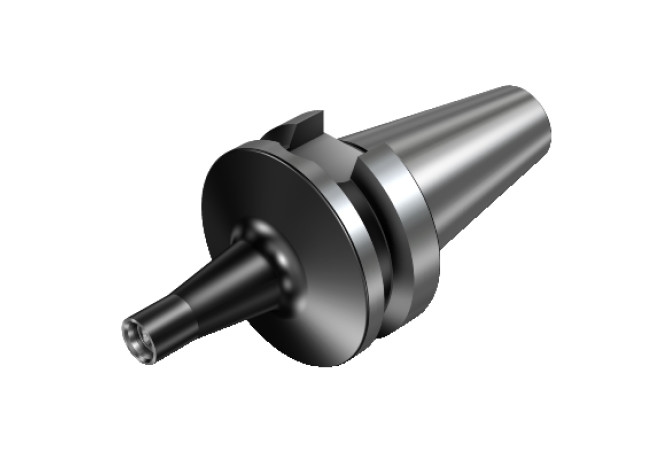

Главная Инструменты 401-01 - Converter, rotationally symmetric 392.55EH-40 10 065

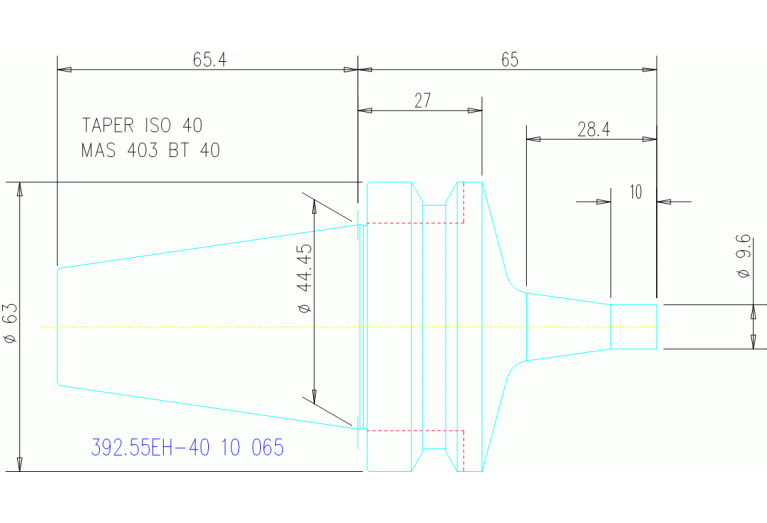

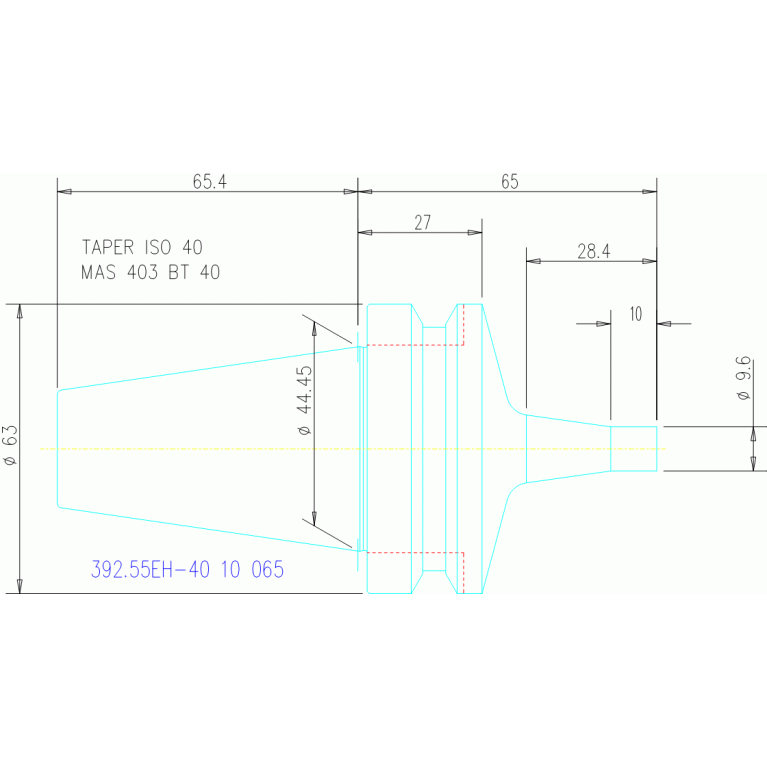

392.55EH-40 10 065

392.55EH-40 10 065 392.55EH-40 10 065 392.55EH-40 10 065 392.55EH-40 10 065

392.55EH-40 10 065

SV - Sandvik-Coromant
Артикул: 6048666
В наличии
0 ₽
В корзину
Описание
Характеристики

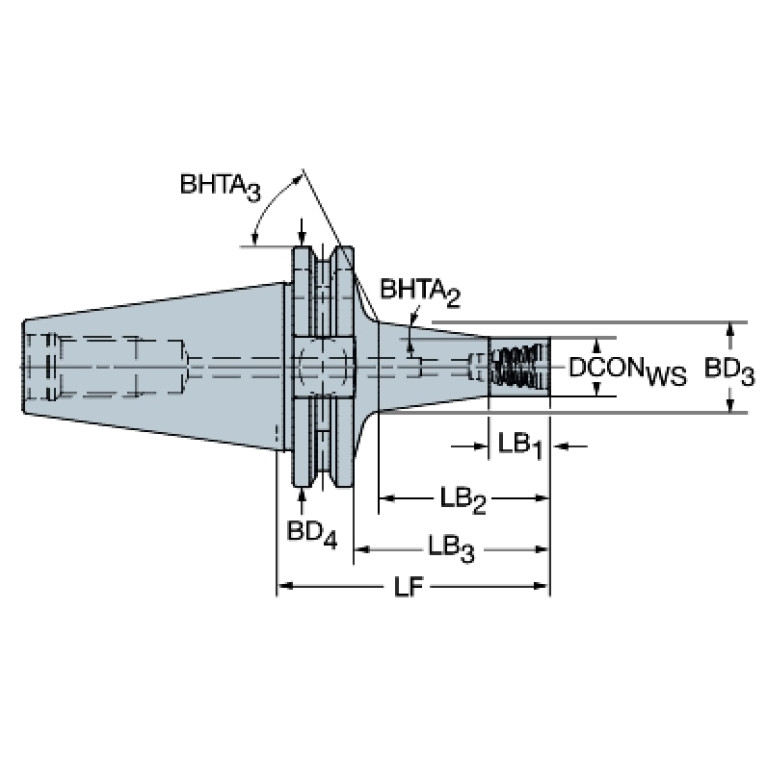

BD (Body diameter 2)
14.772 mm
BD (Body diameter 3)
62.322 mm
BD (Body diameter)
9.6 mm
BHTA (Body half taper angle 2)
8 Degree
BHTA (Body half taper angle 3)
68 Degree
BLDEV (Balancing device)
1
CCFWS (Connection code form)
04
CCSWS (Connection code style)
5
CCTWS (Connection code type)
SAC
CCUWS (Connection code unit base)
1
CNSC (Coolant entry style code)
1 - With Coolant entry, axial concentric
CXSC (Coolant exit style code)
1 - With Coolant exit, axial concentric
CXSC (Coolant exit style code) / Тип подвода СОЖ
1 - With Coolant exit, axial concentric
CZCWS (Connection size code)
0100
DCONWS (Diameter)
9.6 mm
DCONWS (Diameter) / Диаметр соединения со стороны заготовки
9.6 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state valid from
12/1/2023
DF (Flange diameter)
63 mm
DIN
SKG04005195
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
SKG51C0400$$$$
LB (Body length 1)
10 mm
LB (Length 2)
18.4 mm
LB (Length Body diameter 3)
9.6 mm
LF (Functional length)
65 mm
LOC-01 ISO
SAC04A0100****
LOC-01 (CCFWS Connection code form)
04
LOC-01 (CCSWS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-01 (CCTWS Connection code type)
SAC Screw mounting SANDVIK Coromant
LOC-01 (CCUWS Connection code unit base)
1 Metric with coolant
LOC-01 (CZCWS Connection size code)
0100
LOC-01 (DCONWS Diameter)
9.6 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SAC01000415
LOC-03 ISO
SKG51C0400$$$$
LOC-03 (CCFMS Connection code form)
51
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
SKG steep taper shank
LOC-03 (CCUMS Connection code unit base)
9 non-dimensional size with coolant
LOC-03 (CZCMS Connection size code)
0400
LOC-03 (DCONMS Diameter)
9.6 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SKG04005195
LPR (Protruding length)
65 mm
OAL (Overall length)
133.4 mm
RPMX (Rotational speed maximum)
18000 1/min
WT (Weight of item)
1.08 kg
