Главная Инструменты 401-01 - Converter, rotationally symmetric 392.55EH-30 25 054

392.55EH-30 25 054

Артикул: 5850780

В наличии

0 ₽

В корзину

Описание

Характеристики

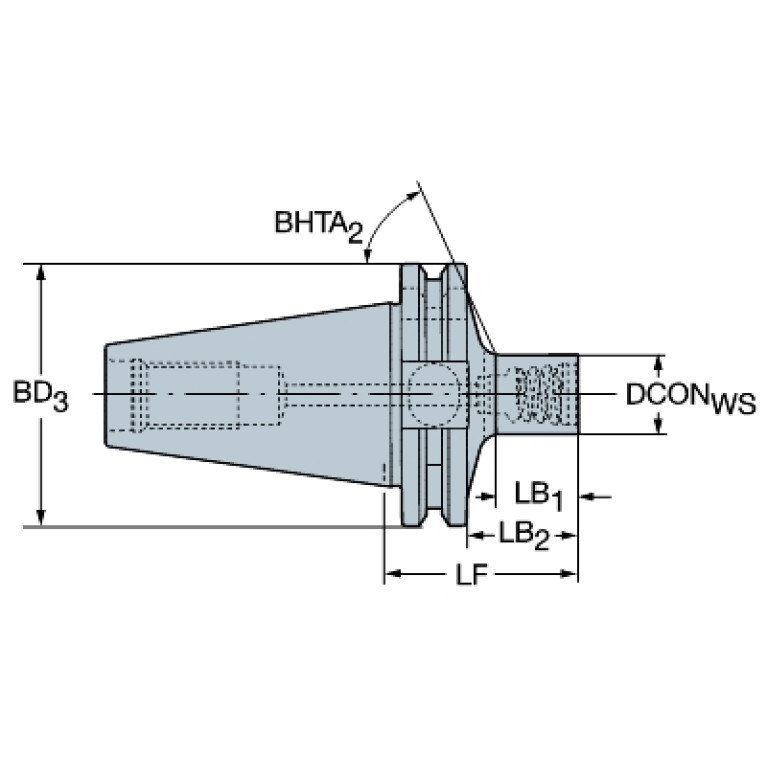

BD (Body diameter 2)

45.865 mm

BD (Body diameter)

24.1 mm

BHTA (Body half taper angle 2)

58 Degree

BLDEV (Balancing device)

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

SAC

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

1 - With Coolant exit, axial concentric

CXSC (Coolant exit style code) / Тип подвода СОЖ

1 - With Coolant exit, axial concentric

CZCWS (Connection size code)

0250

DCONWS (Diameter)

24.1 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

24.1 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state valid from

12/1/2023

DF (Flange diameter)

46 mm

DIN

SKG03005195

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

SKG51C0300$$$$

LB (Body length 1)

25.2 mm

LB (Length 2)

6.8 mm

LF (Functional length)

54 mm

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

SAC Screw mounting SANDVIK Coromant

LOC-01 (CCUWS Connection code unit base)

1 Metric with coolant

LOC-01 (CZCWS Connection size code)

0250

LOC-01 (DCONWS Diameter)

24.1 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

SAC02500415

LOC-02 ISO

SAC04B0250****

LOC-02 (DCONWS Diameter)

24.1 mm

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-03 ISO

SKG51C0300$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

SKG steep taper shank

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

0300

LOC-03 (DCONMS Diameter)

24.1 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG03005195

LPR (Protruding length)

54 mm

OAL (Overall length)

102.4 mm

RPMX (Rotational speed maximum)

25000 1/min

WT (Weight of item)

0.477 kg
