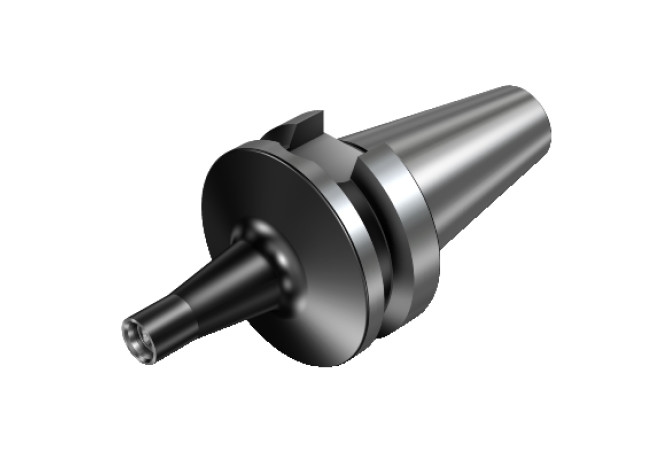

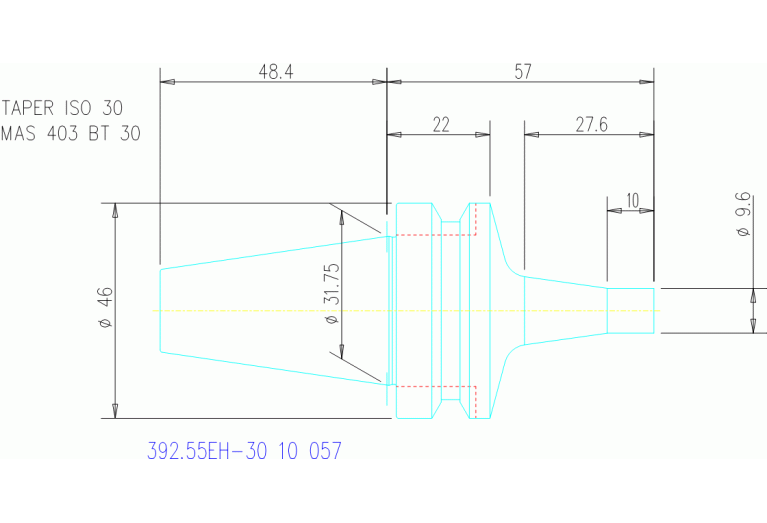

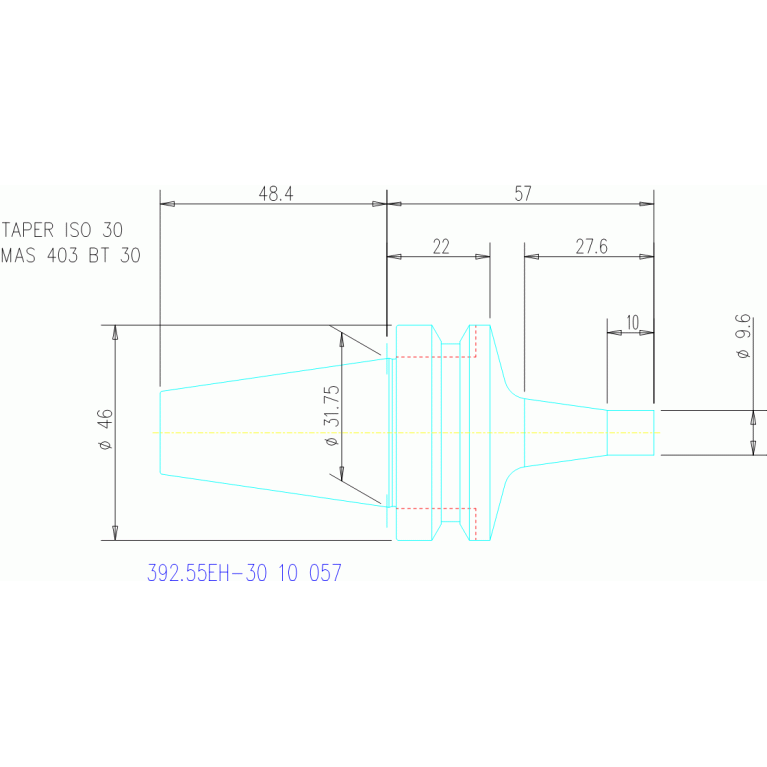

392.55EH-30 10 057
392.55EH-30 10 057
Артикул:
6048658
В наличии
0 ₽
Характеристики

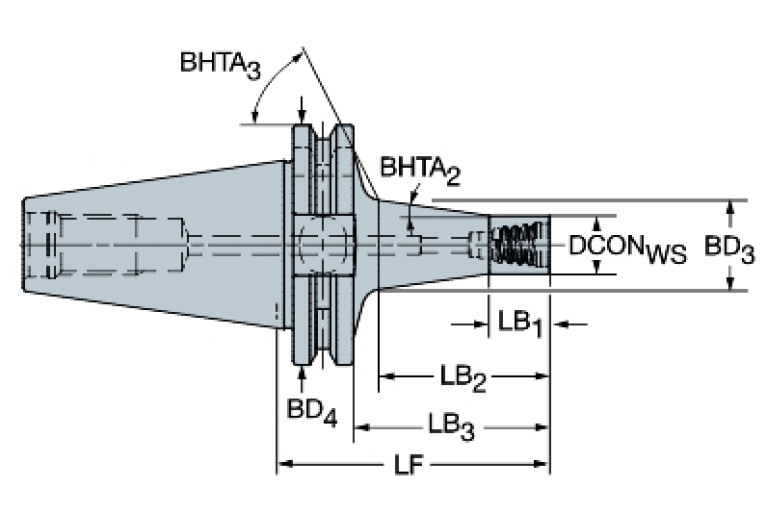

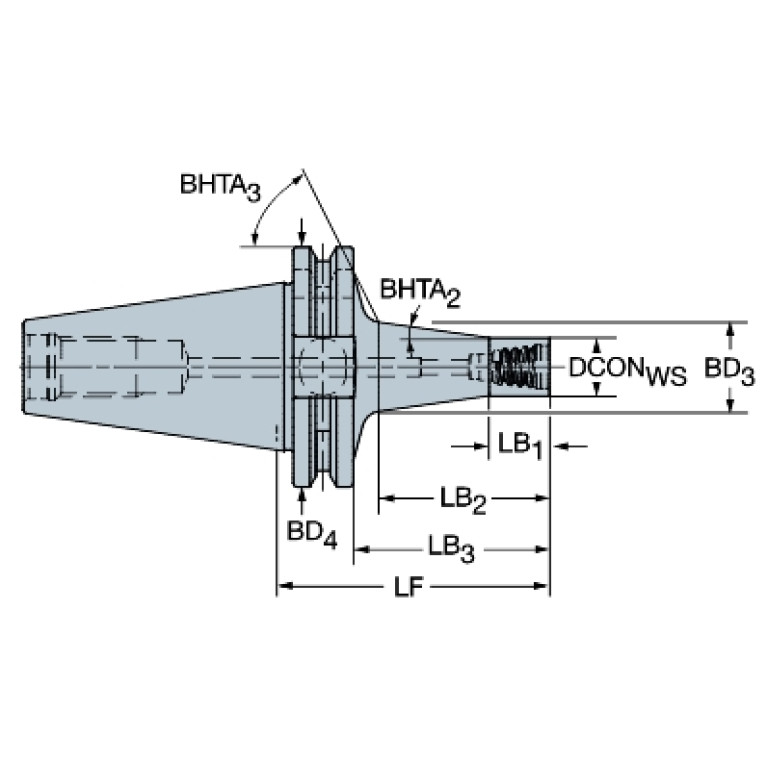

BD (Body diameter 2)
14.284 mm
BD (Body diameter 3)
46.339 mm
BD (Body diameter)
9.6 mm
BHTA (Body half taper angle 2)
7.58 Degree
BHTA (Body half taper angle 3)
65 Degree
BLDEV (Balancing device)
1
CCFWS (Connection code form)
04
CCSWS (Connection code style)
5
CCTWS (Connection code type)
SAC
CCUWS (Connection code unit base)
1
CNSC (Coolant entry style code)
1 - With Coolant entry, axial concentric
CXSC (Coolant exit style code)
1 - With Coolant exit, axial concentric
CXSC (Coolant exit style code) / Тип подвода СОЖ
1 - With Coolant exit, axial concentric
CZCWS (Connection size code)
0100
DCONWS (Diameter)
9.6 mm
DCONWS (Diameter) / Диаметр соединения со стороны заготовки
9.6 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state valid from
12/1/2023
DF (Flange diameter)
46 mm
DIN
SKG03005195
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
SKG51C0300$$$$
LB (Body length 1)
10 mm
LB (Length 2)
17.6 mm
LB (Length Body diameter 3)
7.4 mm
LF (Functional length)
57 mm
LOC-01 ISO
SAC04A0100****
LOC-01 (CCFWS Connection code form)
04
LOC-01 (CCSWS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-01 (CCTWS Connection code type)
SAC Screw mounting SANDVIK Coromant
LOC-01 (CCUWS Connection code unit base)
1 Metric with coolant
LOC-01 (CZCWS Connection size code)
0100
LOC-01 (DCONWS Diameter)
9.6 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SAC01000415
LOC-03 ISO
SKG51C0300$$$$
LOC-03 (CCFMS Connection code form)
51
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
SKG steep taper shank
LOC-03 (CCUMS Connection code unit base)
9 non-dimensional size with coolant
LOC-03 (CZCMS Connection size code)
0300
LOC-03 (DCONMS Diameter)
9.6 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SKG03005195
LPR (Protruding length)
57 mm
OAL (Overall length)
105.4 mm
RPMX (Rotational speed maximum)
25000 1/min
WT (Weight of item)
0.435 kg
