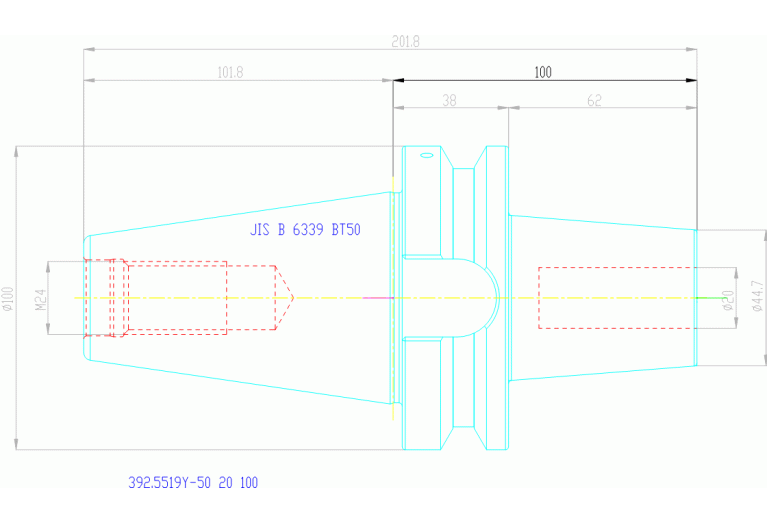

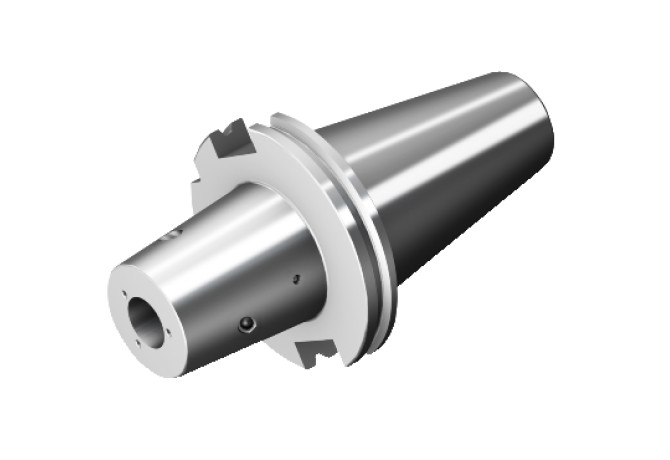

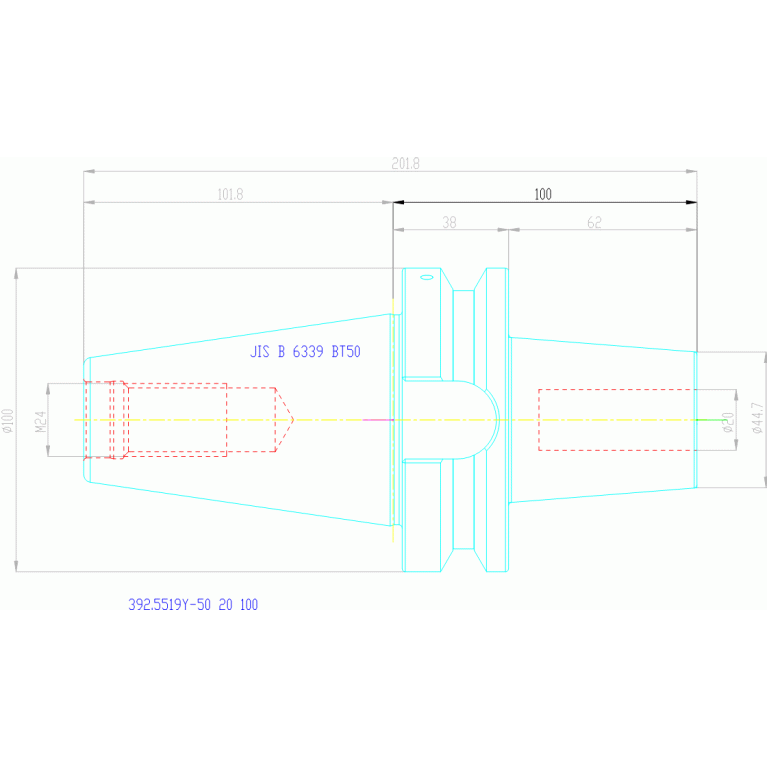

Главная Инструменты 401-01 - Converter, rotationally symmetric 392.5519Y-50 20 100

392.5519Y-50 20 100

Артикул: 6166422

В наличии

0 ₽

В корзину

Описание

Характеристики

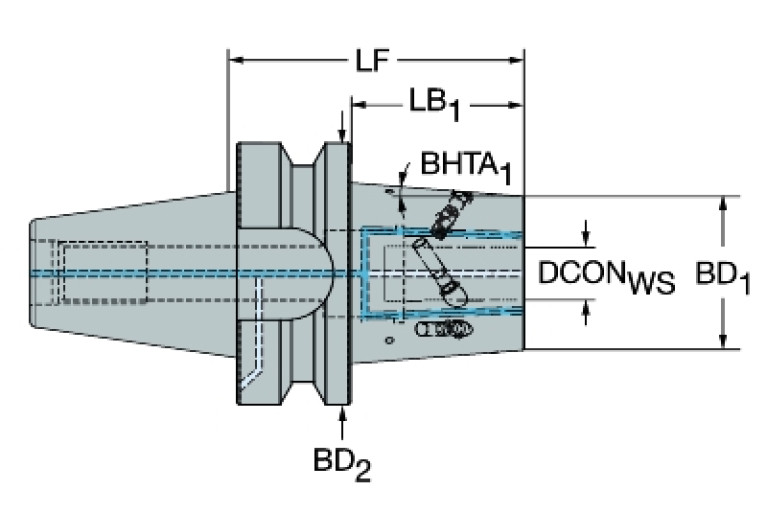

BD (Body diameter 2)

100 mm

BD (Body diameter)

54.459 mm

BHTA (Body half taper angle 2)

0 Degree

BLDEV (Balancing device)

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

ZYL

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

7 - Coolant entry, decentral and axially concentric

CXSC (Coolant exit style code)

4 - With Coolant exit, axial on hole circle

CXSC (Coolant exit style code) / Тип подвода СОЖ

4 - With Coolant exit, axial on hole circle

CZCWS (Connection size code)

0200

DCONWS (Diameter)

20 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

20 mm

DCP (Data chip provision)

1 - With data chip

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DF (Flange diameter)

100 mm

DIN

SKG05005795

HAND (Cutting direction)

N - Neutral

Interface codes

J6 / J61

ISO

SKG57C0500$$$$

LB (Body length 1)

62 mm

LB (Length 2)

38 mm

LF (Functional length)

100 mm

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

ZYL cylindrical shank

LOC-01 (CCUWS Connection code unit base)

1 Metric with coolant

LOC-01 (CZCWS Connection size code)

0200

LOC-01 (DCONWS Diameter)

20 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL02000315

LOC-02 ISO

ZYL03R7874****

LOC-02 (DCONWS Diameter)

20 mm

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-03 ISO

SKG57C0500$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

SKG steep taper shank

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

0500

LOC-03 (TCDCONCDMS Connection tolerance class coded)

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG05005795

LSCN (Clamping length minimum)

41 mm

OAL (Overall length)

201.8 mm

Rotation (Rotation indicator)

1 - rotating tool

RPMX (Rotational speed maximum)

12000 1/min

TCDCONMS (ISO-tolerance class shank diameter)

WT (Weight of item)

4.495 kg
