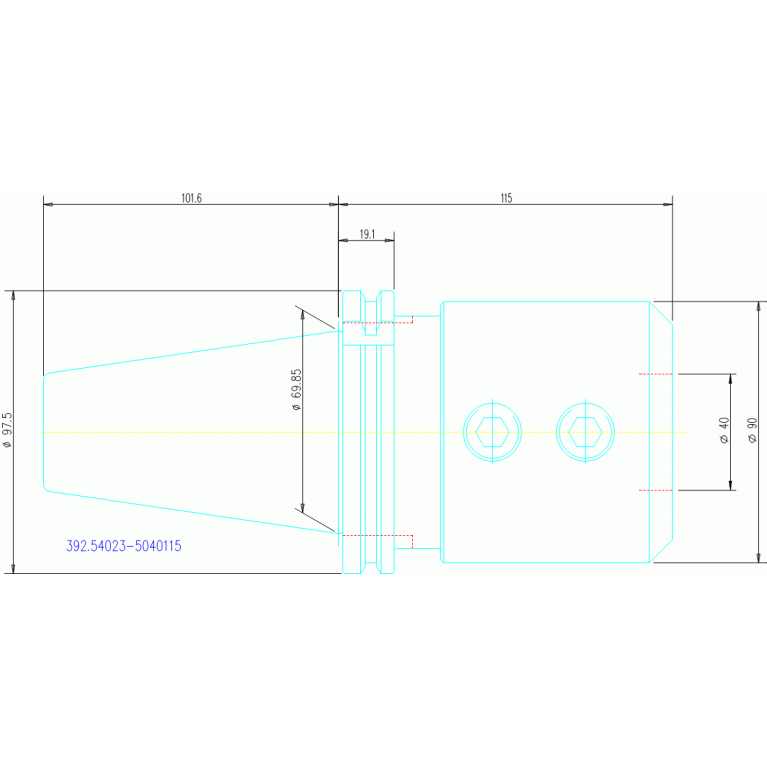

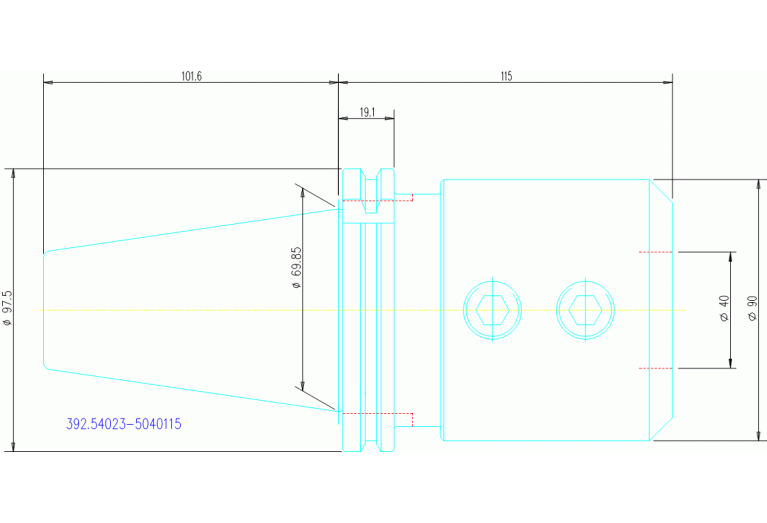

392.54023-5040115
392.54023-5040115
Артикул:
7079777
В наличии
0 ₽

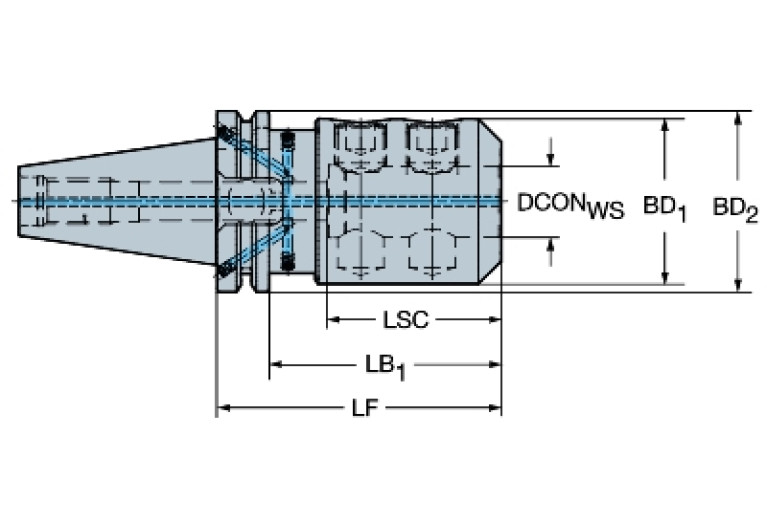

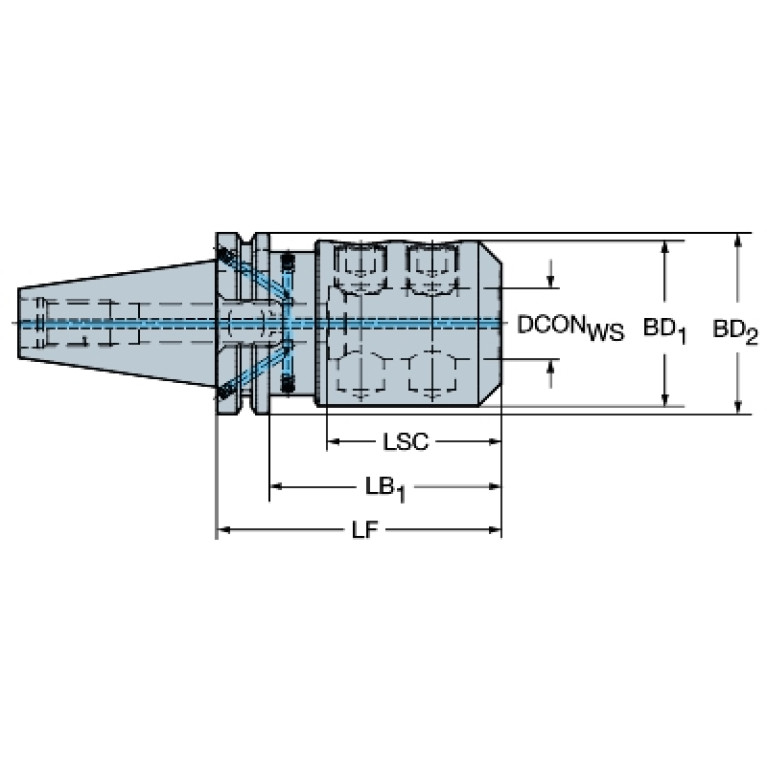

Характеристики
BD (Body diameter)
90 mm
BLDEV (Balancing device)
1
CCFWS (Connection code form)
11
CCSWS (Connection code style)
5
CCTWS (Connection code type)
ZYL
CCUWS (Connection code unit base)
1
CNSC (Coolant entry style code)
7 - Coolant entry, decentral and axially concentric
CXSC (Coolant exit style code)
1 - With Coolant exit, axial concentric
CXSC (Coolant exit style code) / Тип подвода СОЖ
1 - With Coolant exit, axial concentric
CZCWS (Connection size code)
0400
DCONWS (Diameter)
40 mm
DCONWS (Diameter) / Диаметр соединения со стороны заготовки
40 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DF (Flange diameter)
97.5 mm
DIN
SKG05001795
HAND (Cutting direction)
N - Neutral
Interface codes
J6 / J61
ISO
SKG17C0500$$$$
LB (Body length 1)
95.95 mm
LF (Functional length)
115 mm
LOC-01 ISO
ZYL10S1574****
LOC-01 (CCFWS Connection code form)
11
LOC-01 (CCSWS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-01 (CCTWS Connection code type)
ZYL cylindrical shank
LOC-01 (CCUWS Connection code unit base)
1 Metric with coolant
LOC-01 (CZCWS Connection size code)
0400
LOC-01 (DCONWS Diameter)
40 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL04001115
LOC-02 ISO
ZYL10G4000****
LOC-02 (CCFWS Connection code form)
11
LOC-02 (CCSWS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-02 (CCTWS Connection code type)
ZYL cylindrical shank
LOC-02 (CCUWS Connection code unit base)
1 Metric with coolant
LOC-02 (CZCWS Connection size code)
0400
LOC-02 (DCONWS Diameter)
40 mm
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
ZYL04001015
LOC-03 ISO
SKG17C0500$$$$
LOC-03 (CCFMS Connection code form)
17
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
SKG steep taper shank
LOC-03 (CCUMS Connection code unit base)
9 non-dimensional size with coolant
LOC-03 (CZCMS Connection size code)
0500
LOC-03 (DCONMS Diameter)
40 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SKG05001795
LPR (Protruding length)
115 mm
LS (Shank length)
74 mm
LSCX (Clamping length maximum)
74 mm
OAL (Overall length)
216.6 mm
RPMX (Rotational speed maximum)
12000 1/min
WT (Weight of item)
6.24 kg
