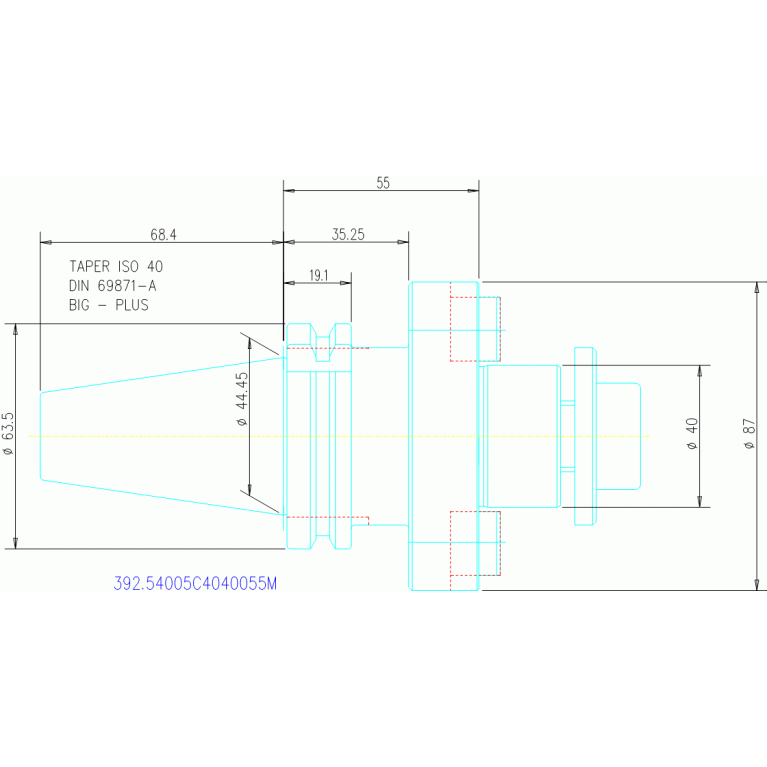

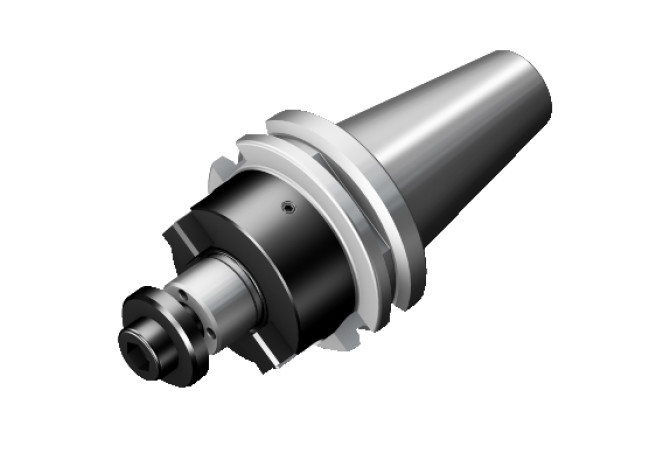

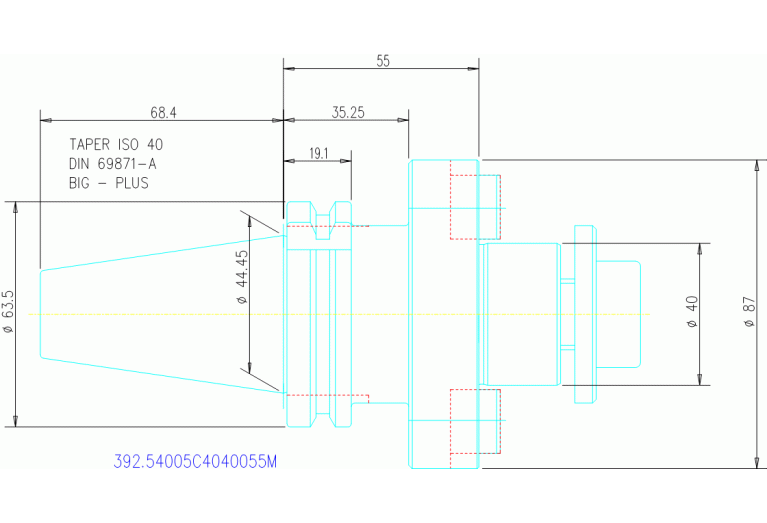

Главная Инструменты 401-01 - Converter, rotationally symmetric 392.54005C4040055M

392.54005C4040055M

Артикул: 6228964

В наличии

0 ₽

В корзину

Описание

Характеристики

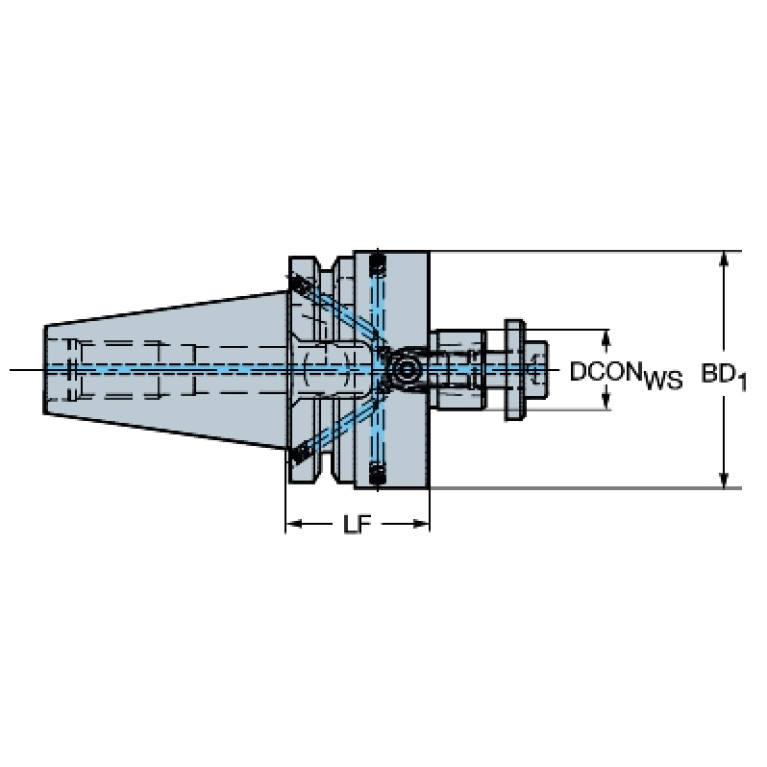

BD (Body diameter)

87 mm

BLDEV (Balancing device)

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

FDA

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

7 - Coolant entry, decentral and axially concentric

CXSC (Coolant exit style code)

4 - With Coolant exit, axial on hole circle

CXSC (Coolant exit style code) / Тип подвода СОЖ

4 - With Coolant exit, axial on hole circle

CZCWS (Connection size code)

0400

DBHC (Diameter bolt hole circle)

66.7 mm

DCONWS (Diameter)

40 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

40 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state valid from

12/1/2023

DF (Flange diameter)

63.55 mm

DIN

SKG04001795

HAND (Cutting direction)

N - Neutral

Interface codes

J6 / J61

ISO

SKG17C0400$$$$

LB (Body length 1)

35.9 mm

LF (Functional length)

55 mm

LOC-01 ISO

FDA12G4000****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

0 Hole in machine direction or shaft in workpiece direction

LOC-01 (CCTWS Connection code type)

FDA Milling arbor mounting

LOC-01 (CCUWS Connection code unit base)

1 Metric with coolant

LOC-01 (CZCWS Connection size code)

0400

LOC-01 (DCONWS Diameter)

40 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

FDA04001210

LOC-02 ISO

FDA22G4000****

LOC-02 (CCFWS Connection code form)

LOC-02 (CCSWS Connection code style)

0 Hole in machine direction or shaft in workpiece direction

LOC-02 (CCTWS Connection code type)

FDA Milling arbor mounting

LOC-02 (CCUWS Connection code unit base)

1 Metric with coolant

LOC-02 (CZCWS Connection size code)

0400

LOC-02 (DCONWS Diameter)

40 mm

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

FDA04002210

LOC-03 ISO

SKG17C0400$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

SKG steep taper shank

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

0400

LOC-03 (DCONMS Diameter)

40 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG04001795

LPR (Protruding length)

55 mm

LS (Shank length)

23 mm

OAL (Overall length)

123.4 mm

RPMX (Rotational speed maximum)

18000 1/min

WT (Weight of item)

2.301 kg
